DWC-MB62DiVT

Ethernet

Cable

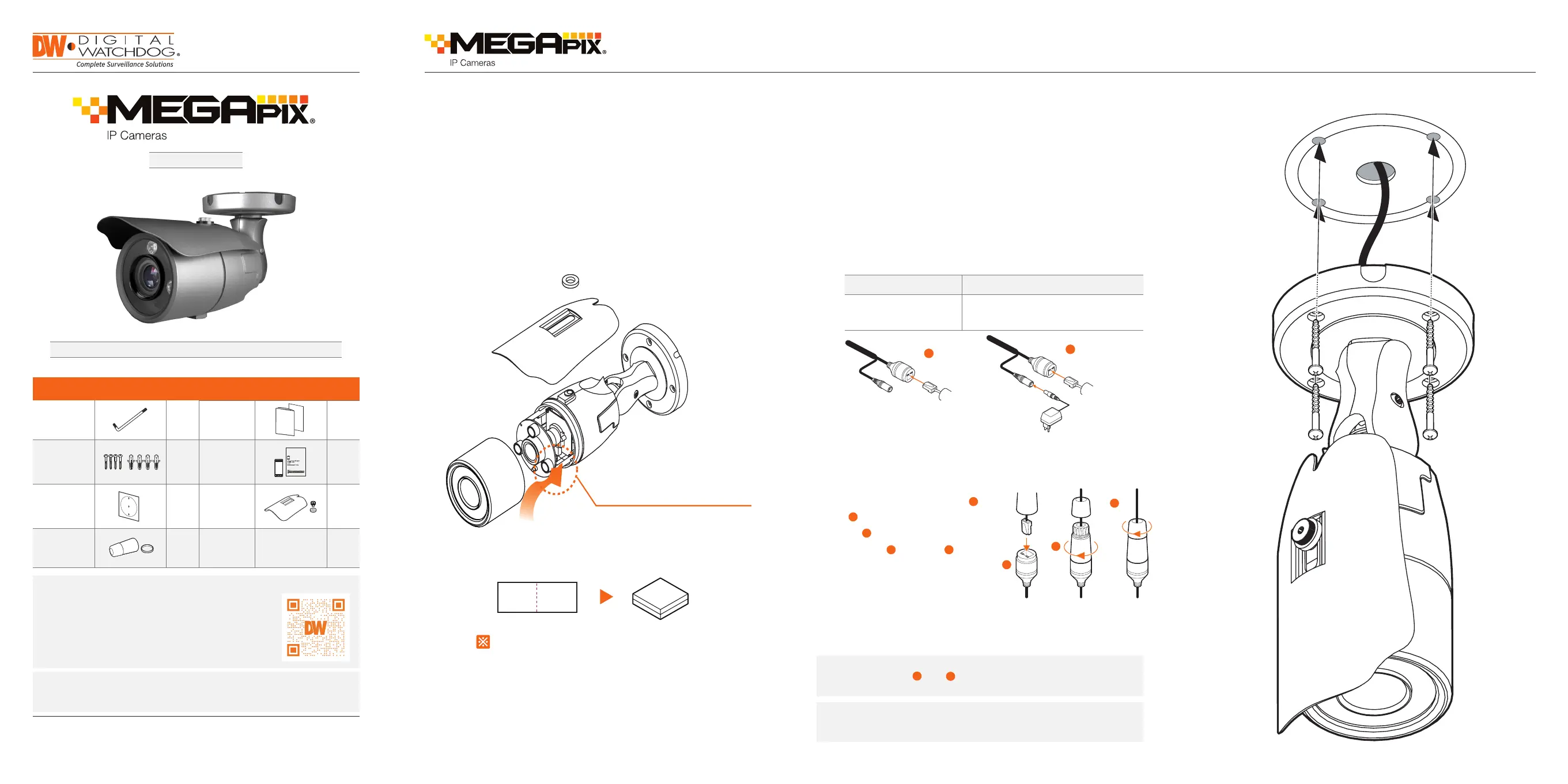

Quick Start Guide Quick Start Guide

1. The mounting surface must withstand ﬁve times the

camera weight.

2. Do not let the cables get caught in improper places or the electric

line cover can be damaged. This may cause a short or ﬁre.

3. Install the moisture packet in the base of the camera’s lens.

a. Remove the moisture absorber from the packaging.

b. Cut the card and folder along the dotted line.

c. Place the moisture absorber behind the camera’s lens module.

See the drawing for more information.

Pass the wires through the mount bracket and make all necessary

connections.

1. NETWORK CONNECTIONS – If you are using a PoE Switch,

connect the camera using an Ethernet cable for both data and

power.

2. NETWORK CONNECTIONS – If you are using a non-PoE switch,

connect the camera to the switch using an Ethernet cable

for data transmission and use a power adapter to power the

camera.

STEP 1 – PREPARING TO MOUNT THE CAMERA

STEP 3 – INSTALLING THE CAMERA

STEP 2 – CABLING THE CAMERA TO

EXTERNAL DEVICES

1. Secure the camera to the mounting surface using the screws and

anchors included.

2. To use the camera’s water proof wiring:

a. Install the LAN cable into .

b. will be assembled

to with a 1/4 turn.

c. Thread tightly to .

NOTE: To ensure moisture seal, make sure the o-ring is in place

between and . In extreme environments use of an

outdoor rated sealer is recommended.

a b

NOTE: When using the waterproof cap, crimp the RJ45

connector after passing the cable through the

waterproof cap.

Power requirements Power consumption

DC 12V, PoE (IEEE

802.3af Class 3).

(Adapter not included)

DC12V: max 5.2W

PoE: max 7.0W

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours:

9:00AM – 8:00PM EST, Monday thru Friday

digital-watchdog.com

Attention: This document is intended to serve as a quick reference for initial

set-up. It is recommended that the user read the entire instruction manual for

complete and proper installation and usage.

NOTE: Download all your support materials and tools in one place

1. Go to: http://www.digital-watchdog.com/resources

2. Search your product by entering the part number in the

search bar. Results for applicable ‘Search by Product’

part numbers will populate automatically based on the

part number you enter.

3. Click ‘Search’. All supported materials, including manuals

and quick start guide (QSGs) will appear in the results.

Power

Ethernet

Cable

4. Using the mounting template sheet or the camera itself, mark and

drill the necessary holes in the wall or ceiling.

WHAT’S IN THE BOX

Torque

wrench 1

Quick

setup

guide

Screws and

plastic

anchors-4pcs

1 Set

Moisture

absorber

and

absorber

guide

Mounting

template 1

Sunshield

cover and

adjusting

screws

cap and

gasket 1

Absorber attachment point

Please cut the card type absorber along

a dotted line, overlap and attach them

according to the direction of the arrow.

Default Login Information: admin | admin

Rev Date: 11/19

Speciﬁcations and pricing are subject to change without notice.

STEP 3 – INSTALLING THE CAMERA (CONT.)

4. Adjust the camera’s pan, tilt and position to achieve the desired

view. The cameras’ max angles are:

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

5. To adjust the camera’s focus and zoom:

a. Remove the sunshield and front case from the camera by

rotating it counter-clockwise.

b. Unlock the zoom or focus screws by rotating them

counter-clockwise.

c. Adjust the zoom and focus screws at the base of the camera

module to achieve a clear image.

d. Tighten the screws and close the front case by rotating

it clockwise.

6. Once the installation is complete, remove the protective ﬁlm from

the camera’s dome cover.

7. Assemble the dome cover over the camera body and detach the

protecting ﬁlm from the dome bubble.

Quick Start Guide

STEP 5 – WEB VIEWER

The GUI display may dier by camera models.

Resetting the camera: To reset the camera, use the tip of a

paper clip or a pencil and press the reset button. Pressing the

button for ﬁve (5) seconds will initiate a camera-wide reset of

all the settings, including network settings.

Reset Button

Zoom

Focus

STEP 4 – DW IP FINDER™

Thumbnail view

Firmware version

DHCP status

Camera’s uptime

Open IP conﬁguration

settings

Ping camera

Port information

Gateway address

Netmask address

Camera’s MAC address

Filter results

Scan network

Select network to scan

Show/hide thumbnail view

Refresh thumbnail view

Bulk password assignment

Bulk IP assignment

Firmware upgrade

Camera’s name

Camera’s IP address

Part number

Use the DW IP Finder™ software to scan the network and detect all MEGApix® cameras, set the camera’s network settings or access the camera’s web client.

Network Setup

1. To install the DW IP Finder™, go to:

http://www.digital-watchdog.com

2. Enter “DW IP Finder” on the search box at the top of the page.

3. Go to the “Software” tab on the DW IP Finder™ page to

download the installation ﬁle.

4. Follow the installation to install the DW IP Finder™. Open the

DW IP Finder™ and click ‘Scan Devices’. It will scan the selected

network for all supported devices and list the results in the

table. During the scan, the DW® logo will turn gray.

‘Port forwarding’ has to be set in your

network’s router for external access

to the camera.

Select DHCP to allow the camera to receive its IP address

automatically from the DHCP server.

Select “Static” to manually enter the camera’s IP address, (Sub)

Netmask, Gateway and DNS information.

* The camera’s IP must be set to Static if connecting to

Spectrum® IPVMS

Contact your network administrator for more information.

Default TCP/IP information: DHCP

5. When connecting to the camera for the ﬁrst time, a password

must be set. To set up a password for your new camera:

a. Check the box next to your new camera from the IP Finder’s

search results. You can select multiple cameras.

b. Click “Bulk Password Assign” on the left.

c. In the pop-up window, enter admin/

admin in the current username and

password ﬁelds. Enter a new

username and password to the right.

d. Press “change” to apply all changes.

6. Select a camera from the list by

double-clicking on the camera’s image

or clicking on the ‘Click’ button under

the IP Conf. column. The pop-up

window will show the camera’s current

network settings, allowing admin users

to adjust the settings as needed.

7. To access the camera’s web page,

go to the IP Conﬁg page and click on

‘View Camera Website’.

8. To save the changes made to the

camera’s setting, input username

and password of the camera and

click Apply.

NOTE: Please see the full product manual for web viewer setup,

functions and camera settings options.

NOTE: Some menu options may not be available based on the

camera model. See the full manual for more information.

Once the camera’s network settings have been setup properly, you

can access the camera’s web viewer using the DW IP Finder™.

To open the camera’s web viewer:

1. Find the camera using the DW IP Finder™.

2. Double-click on the camera’s view in the results table.

3. Press the ‘View Camera Website’. The camera’s web viewer will

open up in your default web browser.

4. Enter the camera’s username and password you setup in

the DW IP Finder™. If you did not setup a new username and

password via the DW IP Finder™, you will not be able to view

video from the camera. A message will direct you to setup a

new password for the camera in order to view video.

5. When accessing the camera for the ﬁrst time, install the VLC

player for web ﬁles in order to view video from the camera.
