Seite 1/167
822001421 10/13
www.datalogic.com
© 2012-2013 Datalogic ADC S.r.l. All rights reserved.
Datalogic and the Datalogic logo are registered
trademarks of Datalogic S.p.A. In many countries,
including the U.S.A. and the E.U.
User’s Manual
Personal Digital Assistant (PDA)
Via S. Vitalino, 13
40012 Lippo di Calderara di Reno
Bologna - Italy
Telephone: (+39) 051-3147011
Fax: (+39) 051-3147561
Datalogic ADC S.r.l.
Lynx™
Datalogic ADC S.r.l.
Via S. Vitalino, 13
40012 Lippo di Calderara di Reno
Bologna - Italy
Telephone: (+39) 051-3147011
Fax: (+39) 051-3147205
©2012-2014 Datalogic ADC S.r.l.
An Unpublished Work - All rights reserved. No part of the contents of this documentation or
the procedures described therein may be reproduced or transmitted in any form or by any
means without prior written permission of Datalogic ADC, Inc. or its subsidiaries or affiliates
("Datalogic" or “Datalogic ADC”). Owners of Datalogic products are hereby granted a non-
exclusive, revocable license to reproduce and transmit this documentation for the
purchaser's own internal business purposes. Purchaser shall not remove or alter any
proprietary notices, including copyright notices, contained in this documentation and shall
ensure that all notices appear on any reproductions of the documentation. Should future
revisions of this manual be published, you can acquire printed versions by contacting your
Datalogic representative. Electronic versions may either be downloadable from the Datalogic
website (www.datalogic.com) or provided on appropriate media. If you visit our website and
would like to make comments or suggestions about this or other Datalogic publications,
please let us know via the "Contact Datalogic" page.
Disclaimer
Datalogic has taken reasonable measures to provide information in this manual that is
complete and accurate, however, Datalogic reserves the right to change any specification at
any time without prior notice.
Datalogic has taken reasonable measures to provide information in this manual that is
complete and accurate, however, Datalogic reserves the right to change any specification at
any time without prior notice. Datalogic and the Datalogic logo are registered trademarks of
Datalogic S.p.A. in many countries, including the U.S.A. and the E.U.
Lynx and the Lynx logo are trademarks of Datalogic ADC S.r.l.
All other brand and product names may be trademarks of their respective owners.
Patents
This product is covered by one or more of the following patents:
Design Pat.: EP 1711946; US D633502; CN ZL201030189483.7.
Utility Patents: EP681257.
Additional patents pending.
iii
CONTENTS
REFERENCES ............................................................................................ vi
Conventions .................................................................................................. vi
Reference Documentation ............................................................................ vi
Services and Support .................................................................................... vi
GENERAL VIEW ........................................................................................ vii
1 INTRODUCTION .......................................................................................... 1
1.1 Lynx Description ........................................................................................... 1
1.2 Available Models ........................................................................................... 2
1.3 Package Contents ......................................................................................... 4
1.4 Inserting a MicroSD card ............................................................................... 6
1.4.1 Removing the MicroSD Card ........................................................................ 8
1.5 Installing the SIM Card .................................................................................. 9
1.5.1 Removing the SIM Card .............................................................................. 10
1.6 Accessories ................................................................................................. 11
2 BATTERIES AND MAINTENANCE ........................................................... 13
2.1 Charging the Battery Pack .......................................................................... 13
2.2 Replacing the Battery Pack ......................................................................... 16
2.3 Cleaning the PDA ....................................................................................... 19
3 CONNECTIONS ......................................................................................... 20
3.1 USB Connection ......................................................................................... 20
3.2 Connection to USB peripherals ................................................................... 22
3.3 RS232 Connection ...................................................................................... 25
3.4 WLAN Connection ...................................................................................... 27
3.5 WPAN Connections .................................................................................... 29
3.6 WWAN Connection ..................................................................................... 30
3.7 Wireless and Radio Frequencies Warnings ................................................ 32
4 USE AND FUNCTIONING .......................................................................... 34
4.1 Startup ........................................................................................................ 34
4.1.1 Using the Stylus .......................................................................................... 35
4.2 Windows Embedded Handheld Welcome Wizard ....................................... 36
4.3 Data Capture ............................................................................................... 37
4.3.1 Laser Data Capture ..................................................................................... 38
4.3.2 Imager Data Capture................................................................................... 40
4.4 Description of the Keys ............................................................................... 42
4.4.1 Alphanumeric Keyboard .............................................................................. 42
4.4.2 Resetting the Lynx ...................................................................................... 45
4.5 Status Indicators ......................................................................................... 47
4.5.1 LED Status .................................................................................................. 47
4.5.2 Taskbar ....................................................................................................... 48
iv
4.6 Settings ....................................................................................................... 49
4.6.1 Data Capture Configuration ........................................................................ 50
Decoding configuration pages ..................................................................... 50
4.6.2 Buttons ........................................................................................................ 59
4.6.3 DL Buttons .................................................................................................. 60
4.6.4 Triggers ....................................................................................................... 62
4.6.5 Application Switcher .................................................................................... 63
4.6.6 Wireless Communications ........................................................................... 64
4.6.7 Stylus Calibration ........................................................................................ 71
4.6.8 Audio Settings ............................................................................................. 73
4.7 Connecting to other Computers .................................................................. 76
4.7.1 Windows Mobile® Device Center ................................................................ 76
4.7.2 Bluetooth® Manager Device Setup ............................................................. 77
4.8 Datalogic Firmware Utility ........................................................................... 85
4.8.1 Retrieving a Firmware Image Update ......................................................... 85
4.8.2 Installing DFU on the Host PC .................................................................... 86
4.8.3 Updating the Firmware ................................................................................ 87
4.9 Datalogic Configuration Utility ..................................................................... 88
4.10 Radio Power Management .......................................................................... 89
4.11 Datalogic Desktop Utility ............................................................................. 91
4.11.1 Administrative Options (Admin tab) ............................................................. 92
4.11.2 Locked Web Browser Options (LockedWeb tab) ........................................ 95
4.11.3 Status Icons Options (Status Tab) ............................................................ 100
4.11.4 Windows Controls ..................................................................................... 101
4.11.5 AppSelector Options (AppSelect tab)........................................................ 103
4.12 AppSelector (Application Selector) ........................................................... 107
4.13 Locked Web Browser ................................................................................ 108
4.13.1 Locked Web Browser Special Meta-tags .................................................. 110
4.14 Autostart .................................................................................................... 114
4.14.1 Installing CAB files .................................................................................... 114
4.14.2 How AutoStart Uses Wceload ................................................................... 115
4.14.3 Interactive CAB Install ............................................................................... 116
4.14.4 Autostart.ini ............................................................................................... 116
5 TECHNICAL FEATURES ......................................................................... 122
5.1 Technical Data .......................................................................................... 122
5.2 Reading Diagrams .................................................................................... 126
6 TEST CODES ........................................................................................... 128
SAFETY REGULATIONS ......................................................................... 132
General Safety Rules ................................................................................ 132
Power Supply ............................................................................................ 132
Laser Safety .............................................................................................. 133
LED Class ................................................................................................. 139
Radio Compliance ..................................................................................... 140
v
Bluetooth® Approval ................................................................................. 140
FCC Compliance ....................................................................................... 142
RF Exposure Information (SAR) ............................................................... 143
Industry Canada Compliance .................................................................... 144
SAR Compliance ....................................................................................... 145
WEEE Compliance ................................................................................... 146
GLOSSARY .............................................................................................. 148
INDEX ....................................................................................................... 152
1
vi
REFERENCES
CONVENTIONS
This manual uses the following conventions:
“User” refers to anyone using an Lynx PDA.
“PDA” and "Lynx" refer to Lynx PDA.
“You” refers to the System Administrator or Technical Support person using this
manual to install, configure, operate, maintain or troubleshoot an Lynx PDA.
“Single Dock” refers to the Lynx Single Slot Dock.
The label artworks may be only a draft. Refer to the product labels for more precise
information.
REFERENCE DOCUMENTATION
For further information regarding Lynx refer to the SDK Help on-Line.
SERVICES AND SUPPORT
Datalogic provides several services as well as technical support through its website.
Please check our website at www.datalogic.com under “Support & Services”, then
“Automatic Data Capture”, and click on the links indicated for further information
including:
- Downloads
- Manuals for the latest versions of user manuals and product guides.
- Software & Utilities for the latest firmware release for your product. You can
also click on the following link for direct access to this section:
www.datalogic.com/products_updates.
- Service Program for warranty extensions and maintenance agreements.
- Repair Centers for a list of authorised repair centers.
- Technical Support Automatic Data Capture email form to contact our
technical support.
vii
GENERAL VIEW
A) Color Display
B) ON/OFF Power Key
C) Receiver
D) LEDs
E) Front Scan Key
F) Keyboard
G) Microphone
H) Telescope Stylus (not included in
the box, please order it separately,
p/n 94ACC0068)
I) Laser Safety Label
J) Loudspeaker
K) Color Camera
L) Flash
M) Product Label (under battery)
N) MicroSD Card Slot (under battery)
O) SIM Card Slot (under battery)
P) Reset Key (under battery)
Q) Guitar Pick
A
E
F
D
H
C
B
G
L
M
N
O
Q
I
K
J
Q
1
viii
R) Side Scan Key (right)
S) Up/down Volume Keys T) Side Scan Key (left)
U) Headset Connector
V) Micro-USB Port for supplying power
and data transfer (host/slave)
W) Data Capture Window X) Handylink™ Connector (host/slave)
R
S
W
X
T
U
V
INTRODUCTION
1
1
1 INTRODUCTION
1.1 LYNX DESCRIPTION
The Lynx contains the most innovative technical features, providing them to the user
in an ergonomic and elegant form factor. The accelerometer, the vibrator alert and
the 3 LEDs help to not waste time in the configuration and usage of the product.
Working with the Lynx becomes an easy pleasure.
Great aesthetics do not put the robustness on a second level. The Lynx has been
designed for survival in the industrial environmental, outside or inside the four walls.
The reliability of the product continues with the architecture chosen: an 806MHz
processor working with 256 MB of RAM and 512 MB of Flash. A Micro SD card slot
supporting micro SDHC storage cards provides for virtually unlimited storage space.
The Lynx has been equipped with both a 1D laser scanner and 2D bar code imager.
Ready for the most demanding applications, an autofocus camera with flash has
been foreseen on the back of the product.
The Lynx wireless technology provides as many as four radios with internal
antennas: Bluetooth® EDR for fast and close data connections, 802.11 b/g/n Cisco
CCX v4 certified Wi-Fi for quick wireless network access, 3G/4G (HSPA+) for real-
time wide area communication and Assisted GPS for location based applications.
The Lynx integrates the latest Windows Embedded Handheld 6.5, tailored for mobile
devices. As with all Datalogic computers, also this PDA offers Wavelink Avalanche®
for a fast configuration and deploymant. Finally, Datalogic’s comprehensive service
programs protect the Lynx investment.
1 LYNX™
2
1
1.2 AVAILABLE MODELS
The Lynx is available in different models depending on the options it is equipped
with. All options are listed below:
• communication options: 802.11 b/g/n radio, Bluetooth®, HSPA+
• data capture options: laser, 2D imager
• operating system: Windows Embedded Handheld
• keyboard options: numeric, QWERTY
For further details about the Lynx models refer to the web site:
http://www.datalogic.com
For further information regarding Windows Embedded Handheld refer to the website:
http://www.microsoft.com/windowsembedded.
The currently available models are:
• 944400000 Lynx 00N0LD-1N0-MEN0
Lynx with Bluetooth® v2.0, 802.11 b/g/n CCX v4, Std Laser, Windows
Embedded Handheld 6.5, 256 MB RAM / 512 MB Flash, 27-Key Numeric
• 944400001 Lynx H2N0LD-1N1-MEN0
Lynx with Bluetooth® v2.0, 802.11 b/g/n CCX v4, 3G/4G HSPA+, GPS, Std
Laser, Camera 3MPixel, Windows Embedded Handheld 6.5, 256 MB RAM / 512
MB Flash, 27-Key Numeric
• 944400002 Lynx 00N0WI-1N1-MEN0
Lynx with Bluetooth® v2.0, 802.11 b/g/n CCX v4, 2D Imager, Camera
3MPixel,Windows Embedded Handheld 6.5, 256 MB RAM / 512 MB Flash, 27-
Key Numeric
• 944400003 Lynx H2N0WI-1N1-MEN0
Lynx with Bluetooth® v2.0, 802.11 b/g/n CCX v4, 3G/4G HSPA+, GPS, 2D
Imager, Camera 3MPixel, Windows Embedded Handheld 6.5, 256 MB RAM /
512 MB Flash, 27-Key Numeric
• 944400004 Lynx 00N0LD-1Q0-MEN0
Lynx with Bluetooth® v2.0, 802.11 b/g/n CCX v4, Std Laser, Windows
Embedded Handheld 6.5, 256 MB RAM / 512 MB Flash, 46-Key QWERTY
• 944400005 Lynx H2N0LD-1Q1-MEN0
Lynx with Bluetooth® v2.0, 802.11 b/g/n CCX v4, 3G/4G HSPA+, GPS, Std
Laser, Camera 3MPixel, Windows Embedded Handheld 6.5, 256 MB RAM / 512
MB Flash, 46-Key QWERTY
INTRODUCTION
3
1
• 944400006 Lynx 00N0WI-1Q1-MEN0
Lynx with Bluetooth® v2.0, 802.11 b/g/n CCX v4, 2D Imager, Camera
3MPixel,Windows Embedded Handheld 6.5, 256 MB RAM / 512 MB Flash, 46-
Key QWERTY
1 LYNX™
4
1
1.3 PACKAGE CONTENTS
The Lynx package contains:
− 1 Lynx PDA
− 1 Lynx quick start guide
− 1 rechargeable battery pack (standard @1800 mAh for Wi-Fi models, extended
@3600 mAh for HSPA+ models)
− 1 power supply
− 1 AUS plug adapter
− 1 UK plug adapter
− 1 EU plug adapter
− 1 US plug adapter
− 1 lanyard
− 1 guitar pick stylus
− 1 micro-USB cable
− 1 Lynx Quick Start Guide
− 1 Safety and Regulatory Addendum
− 1 Wavelink Avalanche Insert
− 1 End User License Agreement (EULA) Sheet
Accessories necessary for the Lynx connection to the host computer and to the
network are packaged separately: the cradle, one or more connection cables.
Remove all the components from their packaging; check their integrity and compare
them with the packing documents.
Keep the original packaging for use when sending products to the
technical assistance center. Damage caused by improper
packaging is not covered under the warranty.
CAUTION
1 LYNX™
6
1
1.4 INSERTING A MICROSD CARD
Lynx supports microSD memory cards. To access the microSD card slot and insert
the card, proceed as follows:
1. Turn off the Lynx.
2. Shift the battery latch to the left and remove the battery pack:
3. Open the card slot and insert the microSD card with the written part downward:
INTRODUCTION
7
1
4. Shift the card to the right to lock it into the cardholder; close the card slot:
5. First insert the bottom (contacts) and then the upper side of the battery pack into
the slot. Press until the battery latch clicks.
1 LYNX™
8
1
1.4.1 Removing the MicroSD Card
To remove the microSD card, follow the steps above to access the microSD card
cage under the battery, and remove it from the microSD slot.
Follow proper ESD pr
ecautions to avoid damaging the
microprocessors in the Lynx or the microSD card itself.
Proper ESD precautions include, but are not limited to, working on
an ESD mat and ensuring that the operator is properly grounded.
Do not force the card. If you feel resistance, remove the card, check
the orientation, and reinsert it.
Do not use the microSD card slot for any other accessories.
CAUTION
INTRODUCTION
9
1
1.5 INSTALLING THE SIM CARD
To correctly insert the SIM Card, proceed as follows:
1. Turn off the Lynx.
2. Shift the battery latch to the left and remove the battery pack:
3. Insert the SIM card with the contacts downwards:
4. First insert the bottom (contacts) and then the upper side of the battery pack into
the slot. Press until the battery latch clicks.
1 LYNX™
10
1
Follow proper ESD precautions to avoid damaging the SIM card.
Proper ESD precautions include, but are not limited to, working on
an ESD mat and ensuring that the operator is properly grounded.
Do not force the card. If you feel resistance, remove the card, check
the orientation, and reinsert it.
Do not use the SIM card slot for any other accessories.
CAUTION
1.5.1 Removing the SIM Card
To remove the SIM card, follow the steps above to access the SIM area, and remove
it from its slot.
All the basic functionalities normally associated to the SIM card are
managed by the terminal (WWAN data connectivity, phone calls,
SMS handling).
All core functionalities (WWAN data connectivity, phone calls, and
SMS handling) are managed by the terminal. Advanced
functionality may require additional software from the SIM card
vendor.
It is possible that not all the services connected to the SIM card can
be used or can be managed by the terminal.
NOTE
INTRODUCTION
11
1
1.6 ACCESSORIES
General Accessories
94ACC0067 Stylus,Guitar Pick W/ Cord (5 pcs),Lynx
94ACC0068 Stylus,Telescopic W/ Cord (5 pcs), Lynx
94ACC0069 Lanyard (5 pcs), Lynx
94ACC0070 Belt Holster, Lynx
94ACC0072 Screen Protect, 2.7" (5PCS)
94ACC0079 Module, Ethernet Communication for Single Slot Dock
94ACC1372 Module, Modem Communication for Single Slot Dock
Batteries
94ACC0064 Battery, Standard Capacity, Lynx, 1800 mAh battery (included with
Wi-Fi models)
94ACC0065 Battery, High Capacity, Lynx, 3600 mAh battery (included with
3G/4G (HSPA+) models)
Cables
94A051020 CAB-427 RS-232 Null Modem Cable
94A051968 Cable, Micro USB, Client
94A051969 Cable, Micro USB, Host
94A051970 Cable, USB HandyLink™, Client
94A051971 Cable, USB HandyLink™, Host
94A051972 Cable, RS-232 HandyLink™, Client
94A051973 Cable, RS-232 HandyLink™, Host
94A051974 Cable, Dex HandyLink™
94A051975 Power Adapter, 12 To 24v Pwr Plug 2.1mm
94A051976 Adapter, Pwr Jack 2.1mm To HandyLink™
Docks/ Chargers
94A150036 Dock, Single Slot, Lynx PDA
94A150037 Charger, 4 Slot Dock, Lynx PDA
94A150054 Dock, Ethernet 4 Slot, Lynx PDA
94A150039 Charger, 4 Slot Battery, Lynx PDA
94A150051 Vehicle Holder, Lynx
1 LYNX™
12
1
Power Supplies/Cords
94ACC1150 Power Cord, 3 pin (Euro Plug) - 5 pcs
94ACC1381 Power Supply, Dock, PWR Plug 2.1mm
94ACC1385 Power Supply, Charger, MBC And Dock
95A051041 Power Cord, AC, IEC/EUR
95ACC1113 Power Cord, 120V AC, IEC/US
95ACC1212 Power Cord, IEC/Japan
95ACC1213 Power Cord, 240V AC, UK
95ACC1215 Power Cord, IEC/Australian
95ACC1284 Power Cord, IEC C13, Black Argentina, ROHS
Use only a Datalogic approved power supply and cables. Use of an
alternative power supply will invalidate any approval given to this
device and may be dangerous.
NOTE
BATTERIES AND MAINTENANCE
13
2
2 BATTERIES AND MAINTENANCE
Rechargeable backup batteries and battery packs are not initially
fully charged. Therefore the initial operation to perform is to charge
them. See below.
NOTE
Annual replacement of rechargeable battery pack avoids possible
risks or abnormalities and ensures maximum performance.
CAUTION
2.1 CHARGING THE BATTERY PACK
The battery pack autonomy varies according to many factors, such
as the frequency of barcode scanning, RF usage, battery life,
storage, environmental conditions, etc.
NOTE
The battery icon on the Taskbar indicates when the battery pack is low.
It is possible to recharge the battery pack by connecting the power supply directly to
the Lynx.
Alternatively, it is also possible to recharge the battery pack by using a Single Cradle
or the Lynx Multi Battery Charger.
1 LYNX™
14
2
Moreover recharging is possible by USB direct connection with the host computer,
but with longer charging times.
Insert the micro-USB cable output plug into the micro-
USB connector of
the Lynx, making sure that the arrow on the plug faces upwards:
NOTE
During the charging process the LED positioned at the right side of the display glows
red constantly. Once the charging process has been completed this LED glows green
constantly.
If the battery pack is removed from the PDA, it can be recharged by inserting it into
the rear slot of a Single Cradle or into a Lynx Multi Battery Charger.
Do not use the Lynx until standard batteries are charged for minimum
4 hours and extended batteries are charged for minimum 6 hours.
CAUTION
Even if the storage temperature range is wider, in order to achieve
the longest battery life, store the terminal and the spare batteries
between 20 to 30 ºC (68 to 86 ºF).
In order to achieve the maximum charging rate the LYNX WLAN
model should be charged beetween 0-40 °C, while 3G/4G models
should be charged between 0-35 °C.
Never charge the main device or spare batteries in a closed space
where excessive heat can build up.
NOTE
BATTERIES AND MAINTENANCE
15
2
The battery level may not be displayed correctly for some minutes
after the disconnection if the Lynx is disconnected from power supply
before the charging cycle is completed.
NOTE
The Lynx may get warm during charging; this is normal and does not
mean a malfunction.
NOTE
Use only a USB-IF compliant USB port as a charging source.
NOTE
1 LYNX™
16
2
2.2 REPLACING THE BATTERY PACK
To correctly replace the battery pack, proceed as follows.
1. Turn off the Lynx.
2. Shift the battery latch to the left and remove the battery pack:
3. Install the new battery pack, first insert the bottom (contacts) and then the upper
side of the battery pack into the slot. Press until the battery latch clicks.
1 LYNX™
18
2
WARNING
Do not disassemble or modify (i.e. bend, crush or deform) the battery
pack. The battery pack contains safety and protection devices,
which, if damaged, may cause the battery pack to generate heat,
explode or ignite.
In case of leakage of liquid from the battery, avoid contact with liquid
the skin or eyes. If the contact occurs, immediately wash the affected
area with water and consult a doctor.
Do not solder directly onto the battery pack.
Do not expose the battery pack to liquids.
Avoid any knocks or excessive vibrations. If the device or the battery
is dropped, especially on a hard surface, you should take it to the
nearest Authorised Repair Centre for inspection before continuing to
use it.
Do not replace the battery pack when the device is turned on.
Do not remove or damage the battery pack’s label.
Do not use the battery pack if it is damaged in any part.
Battery pack usage by children should be supervised.
Collect and recycle waste batteries separately from the device in
compliance with European Directive 2006/66/EC, 2011/65,
2002/96/EC and subsequent modifications, with US and China
regulatory laws and regulations about the environment.
In order to guarantee an adequate operating autonomy, when
replacing the battery pack the PDA checks the battery energy level.
If the battery is not sufficiently charged, the Lynx does not turn on
(when pressing the ON/OFF key).
In this case, either substitute the battery pack with a charged one
(sufficiently charged) or insert the Lynx into a powered cradle or
plug it into the direct power supply.
NOTE
To maximize battery life, turn off radios when they are not needed.
NOTE
BATTERIES AND MAINTENANCE
19
2
2.3 CLEANING THE PDA
Periodically clean the Lynx with a slightly dampened cloth.
Do not use alcohol, corrosive products or solvents.
1 LYNX™
20
3
3 CONNECTIONS
3.1 USB CONNECTION
You can use the standard micro USB cable 94A051968 or the Datalogic
HandyLink™ cable 94A051970 to directly connect the Lynx to a host computer to
transfer data through the USB interface.
Key:
A Host computer C Lynx
B Standard Micro USB cable
94A051968/ 94A051970
HandyLink™ USB Client Cable
Connection through the cable complies to the USB 1.1 standard.
NOTE
Insert the micro-USB cable output plug into the micro-USB
connector of the Lynx, making sure that the arrow on the plug faces
upwards:
NOTE
A
B
C
CONNECTIONS
21
3
The Single Dock can be connected to the Host by means of the Micro-B USB cord
94A051968.
Once the host computer has been turned on, insert the Lynx PDA into the cradle.
Key:
A Host computer C 94A150036 Lynx Single Slot Dock
B 94A051968 Micro USB Client
Cable D 94ACC1381 Power Adapter
Connection through the cradle complies to USB 1.1 standard.
NOTE
The actual data transfer speed can be appreciably lower than the
maximum theoretical speed.
NOTE
B
D
C
A
1 LYNX™
22
3
3.2 CONNECTION TO USB PERIPHERALS
To connect the Lynx to a USB keyboard or a memory device, connect the terminal to
the Datalogic 94A051969 cable or to the Datalogic 94A051971 cable (together with a
standard A to micro A USB cable).
For all these devices maximum current draw must be less than 100mA.
Key:
A Keyboard with USB interface C 94A051969 Micro USB Host Cable/
94A051971 HandyLink™ Micro USB
Host Cable
B Lynx D Standard A to Micro A USB Cable
Key:
A USB hard drive/ external
memory source C 94A051969 Micro USB Host Cable/
94A051971 HandyLink™ Micro USB
Host Cable
B Lynx D Standard A to Micro A USB Cable
A
B
C
D
A
B
C
D
CONNECTIONS
23
3
Insert the micro-USB cable output plug into the micro-USB
connector of the Lynx, making sure that the arrow on the plug faces
upwards:
NOTE
1 LYNX™
24
3
Connect the Single Slot Dock to the peripheral by means of a Micro-A USB cord, or
use a Micro-A to Std-A receptacle USB adapter such as Datalogic 94A051969
(together with a standard USB cable if needed).
A USB Peripheral (memory) D Standard A to Micro A USB Cable
B Lynx Single Slot Dock E 94ACC1381 Power Adapter
C 94A051969 Micro USB Host
Cable
Lynx works with most of the mentioned USB peripherals. Datalogic
can not guarantee the interoperability of Lynx with all devices on the
market.
NOTE
Connection is compliant to USB 1.1 standard.
NOTE
The actual data transfer speed can be appreciably lower than the
maximum theoretical speed.
NOTE
B
D
C
A
E
CONNECTIONS
25
3
3.3 RS232 CONNECTION
You can use the Datalogic 94A051972 cable to directly connect the Lynx to a host
computer to transfer data through the RS232 interface
Key:
A Host computer C Lynx
B 94A051972 HandyLink™
Micro RS232 Client Cable
Insert the HandyLink™ cable output plug into the HandyLink™
connector of the Lynx, making sure that both the arrows on the
connector and the Lynx face upwards:
NOTE
A
B
C
1 LYNX™
26
3
The Single Slot Dock can be connected to the Host by means of a standard null
modem cable such as Datalogic 94A051020 CAB-427 for 9-pin connections.
Once the Host computer has been turned on, insert the Lynx PDA into the cradle.
Key:
A Host Computer C Lynx Single Slot Dock
B 94A051020 CAB-427
RS232 Null Modem Cable D 94ACC1381 Power Adapter
A
B
C
D
CONNECTIONS
27
3
3.4 WLAN CONNECTION
Lynx 802.11 b/g/n radio models can communicate with the host using the on-board
Wi-Fi radio and an Access Point connected to the host computer network.
For models using the 802.11 b/g/n radio, you can find information about the applet for
radio configuration: http://www.summitdata.com/SCU.htm.
To launch this utility you can tap the specific icon if it is visible on the taskbar or you
can select the menu item: Start > Summit and tap the ‘SCU’ icon.
Key:
A) Lynx
B) Access point
C) Host – Application Server
A
B
C
A
1 LYNX™
28
3
802.11 b/g/n radio module is on by default, in order to avoid wasting
energy, you can switch it off using SCU.
NOTE
Suspending the terminal powers off the 802.11 b/g/n radio and drops
the radio connection. When the terminal resumes, depending on the
radio power mode and security protocol selected, it may take up to
30 seconds for the 802.11 b/g/n radio driver to re-associate the radio
to the network.
NOTE
Area coverage and radio performance may vary, due to
environmental conditions, access point types or interference caused
by other devices (microwave ovens, radio transmitters, etc.).
NOTE
In case of heavy usage the Lynx may get warm; this is normal and
does not mean a malfunction.
NOTE
CONNECTIONS
29
3
3.5 WPAN CONNECTIONS
Lynx Bluetooth® models can communicate with a Bluetooth® device, such as a
printer, within a range of 10 m, using the on-board Bluetooth® module.
Key:
A) Lynx
B) Bluetooth® printer
In order to extend battery life, the Bluetooth® module is off by
default. If you need to have Bluetooth® working, the module must be
powered on using the Wireless Communications applet (see par.
4.6.6), and perform the Discovery procedure (see par. 4.7.2).
NOTE
Suspending the terminal powers off the Bluetooth® radio and drops
the piconet (Bluetooth® connection). When the terminal resumes, it
takes approximately 10 seconds for the Bluetooth® radio driver to re-
initialize the radio.
NOTE
Area coverage and Bluetooth® radio performance may vary, due to
environmental conditions or interference caused by other devices
(microwave ovens, radio transmitters, etc.).
NOTE
A
B
1 LYNX™
30
3
3.6 WWAN CONNECTION
Lynx 3G/4G HSPA+ models enhance your connectivity solutions giving you an
opening to an international wireless infrastructure that is the global standard.
Lynx uses the following bands:
- UMTS/HSPA+: 800/850/900/1900/2100MHz
- GSM/GPRS/EDGE 850 900 1800 1900 MHz.
In order to use a WWAN Connection you have to install a SIM Card (see instructions
on par. 1.5).
In order to avoid wasting energy, the phone module is off by default.
If you need to have the phone working, the module must be powered
on using the Wireless Manager applet (see par. 4.6.6).
NOTE
Suspending the terminal does not power off the phone radio and the
phone remains connected to the cellular network ready to accept
incoming telephone calls. To prolong autonomy on battery power,
you may turn the phone off when it is not needed using the Wireless
Manager applet.
NOTE
The phone voice capability of this PDA has to be addressed to
occasional use, in well covered areas.
If the coverage is poor, the voice quality can be highly affected.
NOTE
CONNECTIONS
31
3
Calls can be made or received using the Lynx as a phone handset,
using the Lynx headset or using a Bluetooth® headset.
NOTE
During a call, you can set the speaker volume by pressing the
volume keys on the side of the Lynx.
NOTE
In case of heavy usage the Lynx may get warm; this is normal and
does not mean a malfunction.
NOTE
1 LYNX™
32
3
3.7 WIRELESS AND RADIO FREQUENCIES WARNINGS
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications or attachments could
damage the product and may violate laws and regulations. The
antennas inside the Lynx are not user-accessible and cannot be
replaced by end users. Send any faulty equipment to Datalogic for
repair.
WARNING
Most modern electronic equipment is shielded from RF signals.
However, certain electronic equipment may not be shielded against
the RF signals generated by Lynx.
WARNING
Datalogic recommends persons with pacemakers or other medical
devices to follow the same recommendations provided by Health
Industry Manufacturers Associations for mobile phones.
Persons with pacemakers:
• Should ALWAYS keep this device more than twenty five (25) cm
from their pacemaker and/or any other medical device;
• Should not carry this device in a breast pocket;
• Should keep the device at the opposite side of the pacemaker
and/or any other medical device;
• Should turn this device OFF or move it immediately AWAY if
there is any reason to suspect that interference is taking place.
• Should ALWAYS read pacemaker or any other medical device
guides or should consult the manufacturer of the medical device
to determine if it is adequately shielded from external RF energy.
In case of doubt concerning the use of wireless devices with an
implanted medical device, contact your doctor.
WARNING
Turn this device OFF in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care
facilities may use equipment that could be sensitive to external RF
energy.
WARNING
CONNECTIONS
33
3
RF signals may affect improperly installed or inadequately shielded
electronic systems in motor vehicles. Check with the manufacturer
or its representative regarding your vehicle. You should also
consult the manufacturer of any equipment that has been added to
your vehicle.
WARNING
An air bag inflates with great force. DO NOT place objects,
including either installed or portable wireless equipment, in the area
over the air bag or in the air bag deployment area. If a vehicle’s
wireless equipment is improperly installed and the air bag inflates,
serious injury could result.
WARNING
Turn off the device when in any area with a potentially explosive
atmosphere. Observe restrictions and follow closely any laws,
regulations, warnings and best practices on the use of radio
equipment near fuel storage areas or fuel distribution areas,
chemical plants or where any operation involves use of explosive
materials.
Do not store or carry flammable liquids, explosive gases or
materials with the device or its parts or accessories.
Areas with a potentially explosive atmosphere are often, but not
always, clearly marked or shown.
Sparks in such areas could cause an explosion or fire, resulting in
injury or even death.
WARNING
1 LYNX™
34
4
4 USE AND FUNCTIONING
The use of the Lynx depends on the application software loaded. However there are
several parameters that can be set and utilities that can be used to perform some
basic functions such as data capture, communications, file management, etc
4.1 STARTUP
The Lynx turns on when the battery pack or the external supply is inserted and the
ON/OFF Power button is pressed.
After the battery pack is installed, use the [ON/OFF] key to turn the PDA on and off.
As soon as the PDA is on, the Windows Embedded Handheld 6.5 desktop
configuration will appear on the screen. Wait a few seconds before starting any
activity so that the PDA completes its startup procedure.
Today Screen
Start Menu
Use the stylus (par. 4.1.1) as suggested to select icons and options.
The PDA goes into power-off (low power with display and keyboard backlight off)
when it is not used for more than a programmable timeout, which is defined in the
POWER applet of the Control Panel. In this mode it can be awakened (resuming
operation) by the [ON/OFF] key.
USE AND FUNCTIONING
35
4
The PDA can also be awakened or turned off by applications.
NOTE
4.1.1 Using the Stylus
The stylus selects items and enters information. The stylus functions like a mouse.
Tap:
Touch the screen once with the stylus to open items and select
options.
Drag:
Hold the stylus on the screen and drag across the screen to
select text and images. Drag in a list to select multiple items.
Tap-and-hold:
Tap and hold the stylus on an item to see a list of actions
available for that item. On the pop-
up menu that appears, tap the
action you want to perform.
To recalibrate the touch screen use the Screen applet (see par. 4.6.7).
Use only original Datalogic styluses supplied with the product itself.
In harsh applications, use of screen protectors should be taken into
consideration, in order to extend the touch screen operating life.
To prevent damage to the screen, do not use sharp objects or any
tool other than the Datalogic provided stylus.
Do not apply too much pressure when touching the screen.
For applications where an intensive use of the touch screen is
foreseen, please consider that touch screen components are subject
to progressive wear.
CAUTION
1 LYNX™
36
4
4.2 WINDOWS EMBEDDED HANDHELD WELCOME WIZARD
In Windows Embedded Handheld, at the very first Lynx startup, following a clean
boot or following a Registry restore to default values, the PDA startup (see par. 4.1)
is preceded by the Welcome Wizard.
Welcome Wizard Screen
The Welcome Wizard allows the user to calibrate the touch screen (see par. 4.6.7).
Touch Screen Calibration Screen
1 LYNX™
38
4
4.3.1 Laser Data Capture
To scan barcodes, point the Lynx laser model onto the code from a distance within
the reading range while pressing the SCAN key.
The lighted band emitted by the laser must completely cross the barcode as shown in
the figure below.
If the scan has taken place correctly:
− the Good Read LED glows steadily Green for a configurable time;
− if enabled, the Good Read Beep plays.
USE AND FUNCTIONING
39
4
Remove the protective film cover over the Laser Output Window
before use, if present.
NOTE
1 LYNX™
40
4
4.3.2 Imager Data Capture
The Lynx Imager captures a picture of the entire bar code. The omni-directional
scanning does not require that the operator orient the bar code to align with the scan
pattern.
To read a 1D or 2D code, simply point the Lynx Imager model onto the code and
press the SCAN Key.
The Lynx Imager uses an intelligent aiming system pattern, similar to those on
cameras, indicating the field of view, which should be positioned over the code:
Aiming System
If the aiming system pattern is centered over the entire symbology as shown in the
following figure, either wait for the timeout or release the Scan key to capture the
image.
A red beam illuminates the code, which is captured and decoded. You will get a good
read.
USE AND FUNCTIONING
41
4
Linear barcode
2D Matrix symbol
ÌBX3ÉÎ
Relative Size and Location of Aiming System Pattern
The field of view changes its size as you move the reader closer or farther away from
the code. The field of view indicated by the aiming system pattern will be smaller
when the Lynx Imager is closer to the code and larger when it is farther from the
code. Symbologies with smaller bars or elements (mil size) should be read closer to
the unit. Symbologies with larger bars or elements (mil size) should be read farther
from the unit. (See par. 5.1 for further details).
If the scan has taken place correctly:
the Good Read LED glows steadily Green for a configurable time;
if enabled, the Good Read Beep plays.
1 LYNX™
42
4
4.4 DESCRIPTION OF THE KEYS
The Lynx comes with two different keyboards, an alphanumeric keyboard
(QWERTY), having 46 keys, and a numeric keyboard, having a total of 27 keys.
4.4.1 Alphanumeric Keyboard
USE AND FUNCTIONING
43
4
Numeric Keyboard
1 LYNX™
44
4
Main Keys Function
KEY FUNCTION
Pressing the SCAN key starts barcode data capture.
Pressing cursor keys
lets you move forwards,
backwards, upwards or downwards within text fields,
scroll through a Menu list or browse among folder files.
Yellow modifier (toggle key): when pressed before a
standard key, it enables the character or functi
on printed
in yellow above the key.
Blue modifier (one shot key): when pressed before a
standard key, it enables the character or function printed
in blue above the key
It powers the Lynx
ON or OFF. It is placed on the upper
left side of the terminal.
The Telephone End key normally generates the
VK_TEND virtual key code, used to hang-
up phone calls
and to quickly return to the Today screen.
In blue mode, the Telephone End
key generates a
VK_ESCAPE virtual key code for applications that use
the Esc key to cancel
(e.g. touch screen calibration
application).
USE AND FUNCTIONING
45
4
4.4.2 Resetting the Lynx
There are several reset methods for the Lynx.
A warm boot terminates an unresponsive application and clears the working RAM,
but preserves the file system. Registry is restored from persistent memory if available
or returned to factory default.
A cold boot forces all applications to close, completely reinitializing the system. It
clears the working RAM, but the file system is preserved. Registry is restored from
persistent memory.
A clean boot restores the Lynx to a clean configuration: both the Registry and the file
system return to a clean status that conforms to factory default.
Warm Boot
To perform a warm boot, press and hold the following keys:
Cold Boot
To perform a cold boot, do the following steps:
1. Turn off the Lynx by pressing the on-off key.
2. Slide the battery latch leftward and remove the battery pack.
3. Press the reset button.
4. Insert the battery pack.
5. Turn on the Lynx by pressing the on-off key.
1 LYNX™
46
4
Clean Boot
To perform a clean boot, do the following steps:
1. Perform a Warm Boot (see Warm Boot)
2. Before the splash screen appears, press and hold down the 0 and Telephone
End keys simultaneously:
A dialog box will appear asking for confirmation. Press the Enter Key to confirm. If
you wish to cancel the clean boot, press Esc by pressing Blue + Telephone End.
Warm Boot
Cold Boot
Clean Boot
Registry
Restored from
flash
Restored from
flash
Clean configuration (no user
config)
File
System
Preserved Preserved Clean Installation (no user files)
USE AND FUNCTIONING
47
4
4.5 STATUS INDICATORS
4.5.1 LED Status
The Lynx provides three different LEDs signaling the PDA status.
LED STATUS
Good Read
(right side) Red
Scanning LED is ON from the time the
user hits the scan button or side trigger
buttons until the bar code is decoded.
Green Scanning LED is ON, showing a good
decode.
Charging Status
(left side)
Green It is constant once the charging process
has been completed (full charge).
Red It is constant while charging.
Red blinking In case of charge fault it is constant for
two hours, then it starts blinking.
Amber
It is constant when charging a severely
discharged main battery until the battery
has sufficient charge for its controller to
begin communicating with the Lynx's
power system. Once the battery is
communicating, the charge LED will
switch to glow red and continue charging
normally.
Keyboard Status
(center)
Off Keyboard in primary.
Yellow solid Yellow alternate key mode.
Blue solid Blue alternate key mode
Sky blue solid CapsLock enabled.
1 LYNX™
48
4
4.5.2 Taskbar
The Taskbar provides information about the time, the battery level, the keyboard
function, and the decoding status.
Windows Embedded Handheld Taskbar
ICONS DESCRIPTION
Zooms the screen.
Opens the Connections balloon, which includes hypertext links
to the Wireless Manager and the Connections applet. (see par.
4.6.6).
Displays the battery status.
Opens the Volume balloon, which allows the user to control the
main volume, in-
call volume, to mute all volumes, and to control
the vibrator.
Opens Clock & Alarms control panel applet. It allows the user to
set date, time and alarms.
USE AND FUNCTIONING
49
4
4.6 SETTINGS
From the Start menu, tap Settings. The settings are organized hierarchically.
Control panel applets are displayed as icons; each icon corresponds to one applet:
Windows Embedded Handheld Control Panel
1 LYNX™
50
4
4.6.1 Data Capture Configuration

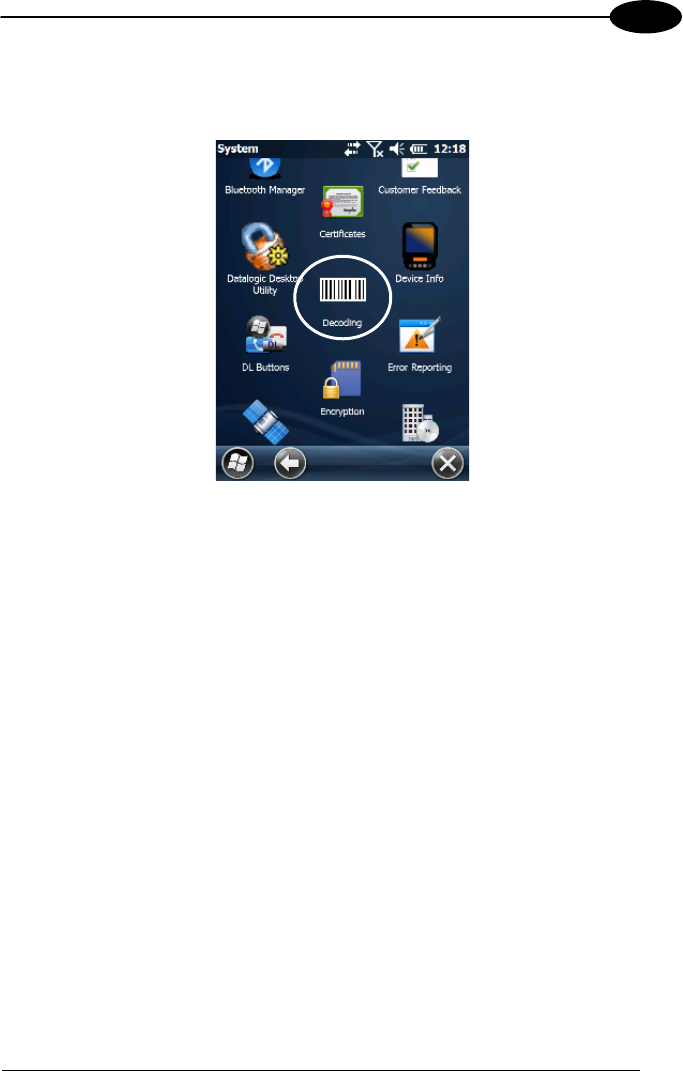

You can configure the Lynx’s decoding options by tapping Start -> Settings ->
System -> Decoding:
There are two sections in the Decoding control panel, each containing additional
pages. There are seven General Configuration pages and multiple Barcode
symbology pages.
DECODING CONFIGURATION PAGES
Select the desired configuration from the options shown in the figure below, and the
other Decoding Properties figures on the following pages.
Select General or 1D Bar Code, then use the menu or tap the left and right arrow
keys to navigate the different pages of the Decoding utility. The menu options will
change to reflect the items most recently selected.
USE AND FUNCTIONING
51
4
Audio
From the Decoding menu, tap Configure > General > Audio. Use it to set volume,
tone, duration, and number of various types of beeps.
Good Read
From the Decoding Properties applet, tap Configure > General > Good Read. Use it
to enable Good Read indications, the use of a vibrator feedback and to set the
decoding timeout for decoding labels.
1 LYNX™
52
4
General Options
From the Decoding menu, tap Configure > General > General Options. Select from
Label Programming Enable, Symbology IDs, Label Prefix, Label Suffix and Data
Separator.
USE AND FUNCTIONING
53
4
Decoding Options
From the Decoding Properties applet, tap Configure > General > Decoding Options.
Use it to configure the User ID for symbologies, Redundancy and Aggressive
Decoding (if supported by the decoding module). Select a symbology to view or
change the available properties settings.
1 LYNX™
54
4
Spot Beam
From the Decoding Properties applet, tap Configure > General > Spot Beam. It
allows enabling and configuration of Spot Beam and triggering modes.
It is only available on devices equipped with laser and advanced long range laser
decoding modules that support the Spot Beam Feature.
1 LYNX™
56
4
Devices
From the Decoding Properties applet, tap Configure > General > Devices. Use it to
enable or disable the keyboard wedge for Barcode scanner. Also use it to enable or
disable the Clipboard mode for passing decoding data to a receiving application.
When the Clipboard checkbox is checked, the Windows clipboard is used to pass
label data, which can be much faster than the keyboard wedge at typing label data
from a large label one character at a time. The disadvantage is that label data will
replace any data already in the Lynx's clipboard.
USE AND FUNCTIONING
57
4
1D Barcode Symbology Pages
Use the drop-down menus from Configure > 1D Barcode, or tap the left and right
arrow keys to navigate the different pages of the barcode symbology pages.
Each barcode symbology opens to its own page, as shown in the figure below. Refer
to the sample symbology control panels for examples of the types of fields and
options you can modify.
Codabar: Select Enable, Min/Max Lengths, Enable Checksum, Send Checksum,
Send Start/Stop and Convert to CLSI.
1 LYNX™
58
4
Decoding Settings
Select from the Decoding Properties Settings menu to restore previous
configurations and/or other available default settings. Choose from:
• Factory Defaults
• Minimum Settings
• Maximum Settings
• Save (New Settings)
• Revert to Saved Settings
The settings are saved when you tap OK.
The settings are saved when you tap ‘Yes’.
When open, Decoding Properties acts as a simple barcode test tool that provides the
Data decoded and the Data Type of the barcode scanned.
USE AND FUNCTIONING
59
4
4.6.2 Buttons
From the Start menu, tap Settings > Personal > Buttons.
On the Program Buttons tab, customize the program hardware buttons to launch your
most used applications. Under ‘Select a button’, tap the button you want to assign a
program to, and then select a program from ‘Assign a program’.
To configure the way the up/down control repeats, use the Up/Down Control applet
(Start > Settings > Personal > Buttons and then tap Up/Down Control).
1 LYNX™
60
4
4.6.3 DL Buttons
In Windows Embedded Handheld devices, <F1>-<F10> buttons (excluding F5) are
assigned by Windows to default applications. F5 is commonly used by applications to
refresh the few, but is not explicitly controlled by default.
To disable an assigned function, tap Start > Settings > System > DL Buttons to
display the DL Buttons window:
Select the button you want to disable. Select the function ‘None’ and the tap OK.
USE AND FUNCTIONING
61
4
To add the button, tap ‘New’ and then press the button you wish to add:
To assign a new function to the button, select the desired function and then tap ‘OK’:
To restore the old settings, do a clean boot.
1 LYNX™
62
4
4.6.4 Triggers
Triggers are special customizable buttons that are mapped by default by DL Buttons.
Also, they can be set as wakeup buttons:
TRIGGERS AVAILABLE FUNCTIONS
Bar Code Camera Shutter
Bar Code/
Camera Shutter
∗
Scan Activates the
scanner even if the
camera app is
running.
Takes a picture if
the Camera app is
running but will do
nothing if it isn't
running.
Activates the
scanner if the
Camera app is not
running but will take
a picture if the
Camera app is
running.
Right Side Scan
Left Side Scan
∗Default function
USE AND FUNCTIONING
63
4
4.6.5 Application Switcher
The application switcher provides the same functionality as the standard Windows®
Alt+Tab function. This allows the user to switch between the various open
applications.
The application switcher can be activated via an assigned shortcut key specified in
the “DL Buttons” tab (refer to par. 4.6.3). When the assigned button is pressed, the
dialog shown below will be displayed:
The <Esc> key can be used to close the Application Switcher. The
<Esc> key is activated by pressing + on the Lynx.
NOTE
Press the assigned button to open the application switcher. Press the assigned
button to cycle through the running applications when the dialog is open. Press
<Enter> to switch to the selected application or <Esc> to close the application
switcher.
1 LYNX™
64
4
4.6.6 Wireless Communications
The Wireless Manager application is a sort of 'Control Panel' for wireless
connections. From here it is possible to turn on or off Bluetooth® and radio modules.
Open the Wireless Manager by tapping Start > Settings > Connections > Wireless
Manager, or by tapping the connectivity icon on the taskbar and then tapping the
"Wireless Manager" hypertext link (see par.4.5.2). The following window will appear:
Wireless Manager Wireless Manager for 3G/4G
HSPA+ models
USE AND FUNCTIONING
65
4
Summit Client Utility (SCU)
Wireless networking has a customized control, Summit Client Utility (SCU). From the
Start menu, tap: Summit > SCU:
The SCU will open to the “Main” tab:
Summit Client Utility
1 LYNX™
66
4
1. To create a new profile, tap the "Profile" tab:
Information about the wireless network can be entered directly in the profile tab or by
pressing “Scan” when the desired network SSID is in range.
2. At the "Scan" screen, select the desired SSID:
USE AND FUNCTIONING
67
4
3. Tap the "Configure" button
4. Follow the on-screen instructions to configure security parameters for your
network. For more detailed settings specific to your installation please contact
your wireless network administrator.
5. When finished, tap “Commit” to save your settings.
Return to the “Main” tab, if you have not previously selected “Commit” you will be
prompted to save your changes.
1 LYNX™
68
4
At the “Main” tab select the profile you just created. If you used the “scan” button the
desired profile will have the same name as the SSID.
Use the “Status” tab to check connectivity to the network.
More detailed information about the applet for radio configuration can be found at
http://www.summitdata.com/Documents/summit_users_guide_3_03.html.
USE AND FUNCTIONING
69
4
Locating the IMEI Number on the Lynx
To find the IMEI number on the Lynx 3G/4G HSPA+ units, do the following steps:
1. Install a SIM card (see par.1.5)
2. From the desktop of the unit open the Start Menu > Settings > Connections >
Wireless Manager.
3. Make sure the Phone is set to ON. If it’s off then tap on Phone to turn it on.
1 LYNX™
70
4
4. Tap on Menu at the bottom of the screen and choose Phone Settings.
5. Tap the right or left arrow until Info displays in the center of the title bar. The
IMEI number should now be showing on the screen.
USE AND FUNCTIONING
71
4
4.6.7 Stylus Calibration
You might need to recalibrate the touch screen (i.e. when you attempt to select one
item with the stylus, another item is erroneously selected).
To recalibrate the touch screen, complete the following steps:
1. Select Start > Settings > System > Screen to open the Screen
Settings.
2. Tap Align Screen to open the Calibration screen shown in the figure below:
3. Carefully press and briefly hold stylus on the center of the target. Repeat as the
target moves around the screen.
4. New calibration settings are persistently saved in Registry.
1 LYNX™
72
4
Startup Stylus Calibration
When clean booting the terminal, a Welcome Wizard (with Stylus Calibration) comes
up if valid calibration settings are not available.
USE AND FUNCTIONING
73
4
4.6.8 Audio Settings
There are two applets that control volume: Audio and Volume & Sounds.
Audio
From the Start Menu, tap Settings > System > Audio:
The audio control panel can be used to independently set the playback or recording
volume for different types of audio inputs and outputs, such as a headset, powered
mobile dock, or the internal speakers and microphone.
Audio Windows
1 LYNX™
74
4
Sounds & Notifications
From the Start Menu, tap Settings > Sounds & Notifications:
The Sounds & Notifications applet configures audio features of all speakers and
headphones:
Sounds Tab
Notifications Tab
USE AND FUNCTIONING
75
4
You can also set the volume of a paired Bluetooth®headset. Tap:
Start > Settings > System > Bluetooth Manager, select the Connections tab and then
select the headset pairing in the Paired Devices list. The following window will
appear:
1 LYNX™
76
4
4.7 CONNECTING TO OTHER COMPUTERS
To connect the Lynx to another device (i.e. Host PC) which run Windows, several
programs are available. These programs require specific electrical connections in
order to function properly.
4.7.1 Windows Mobile® Device Center
The desktop application Windows Mobile® Device Center gives you the ability to
synchronize information between a desktop computer and your Lynx.
Synchronization compares the data on the Lynx with that on the desktop
computer and updates both with the most recent information.
Windows Mobile® Device Center is only compatible with Windows Vista and
Windows 7; if you run Windows XP or earlier, you have to download Microsoft
ActiveSync.
You can establish a connection to your Lynx through the following interfaces:
− USB either directly or through the Single Dock
− RS232 either directly (through the Datalogic 94A051972 HandyLink™ cable) or
through the Single Dock
− Bluetooth® (see par. 4.7.2)
To establish a partnership between the Lynx and a host PC, start Windows Mobile®
Device Center and follow the steps below:
1. Connect the Lynx to the host PC. Windows Mobile® Device Center configures
itself and then opens.
2. On the license agreement screen, click Accept.
3. On the Windows Mobile® Device Center’s Home screen, click Set up your
device.
4. Select the information types that you want to synchronize, then click Next.
5. Enter a device name and click Set Up.
When you finish the setup wizard, Windows Mobile® Device Center synchronizes the
PDA automatically. Microsoft® Office Outlook® emails and other information will
appear on your device after synchronization.
USE AND FUNCTIONING
77
4
4.7.2 Bluetooth® Manager Device Setup
Using the Lynx to connect to another device
To create a Bluetooth® pairing between your device and another device that has
Bluetooth® capabilities, ensure that the two devices are turned on, discoverable, and
within close range.
1. Open the Bluetooth® control panel by tapping Start > Settings > System >
Bluetooth Manager:
2. Search for available Bluetooth® devices by tapping the button for the type of
device you want (Printer, Serial or All) or tap the Discovery tab and then tap the
Discover button to skip this step. The Lynx will search for Bluetooth® devices
within range.
If you attempt to set up a connection when the Bluetooth® radio is
disabled, you will receive a message reminding you that the radio is
turned off, and asking if you want to turn it on. Tap Yes if you need to
enable the Bluetooth® radio.
NOTE
