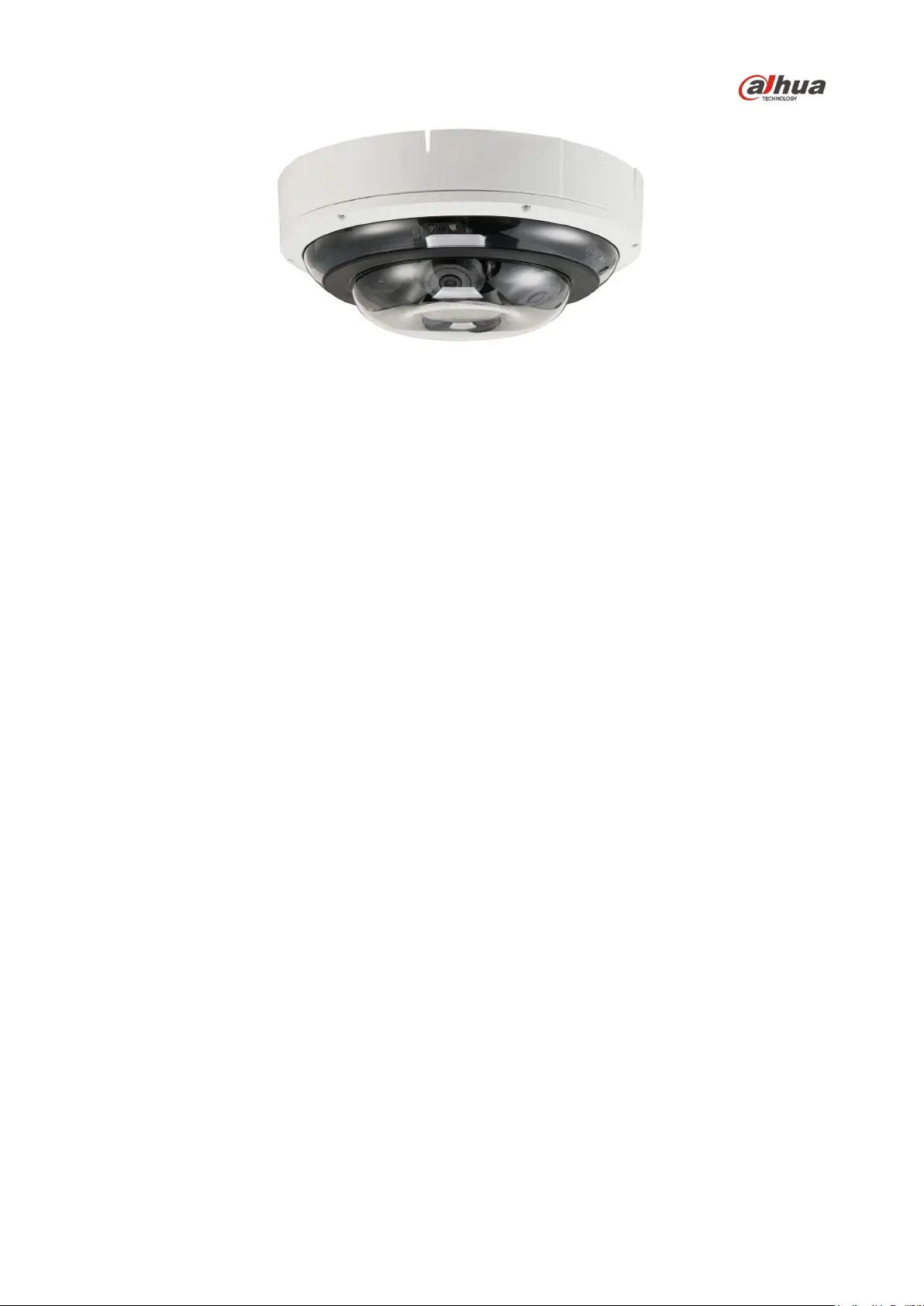

Multi-flex™ 4x2 IP Camera MP

DH- -IPC PDBW5831 B360N-

Installation Guide

V ersion 001.001

Dahua Technology USA Inc.

Table of Contents

1 1 Welcome........................................................................................................................

1.1 Important Safeguards and Warnings................................................................. 1

Electrical safety ................................................................................................. 1

Environmental Precautions ............................................................................... 2

Operation and Daily Maintenance ..................................................................... 2

Lifting Appliance Requirement .......................................................................... 3

Warnings ........................................................................................................... 3

1.2 FCC Information ................................................................................................ 3

FCC compliance： ............................................................................................ 4

1.3 Legal Notices .................................................................................................... 4

Trademarks ....................................................................................................... 4

1.4 Disclaimer ......................................................................................................... 4

2 Unpacking...................................................................................................................... 5

3 Installation and Configuration ........................................................................................ 6

3.1 External Cable 6..................................................................................................

Cable Connections ............................................................................................ 6

Alarm I/O Port Configuration ............................................................................. 6

3.2 Framework and Dimensions ............................................................................. 6

3.3 Alarm Setup ...................................................................................................... 6

3.4 Locally Storing Data .......................................................................................... 8

4 Device Installation ......................................................................................................... 9

4.1 Installing the Camera ........................................................................................ 9

5 Network Configuration ................................................................................................. 12

5.1 Network Protocols ........................................................................................... 12

5.2 Modifying the IP Address ................................................................................ 13

5.3 Using the ConfigTool ....................................................................................... 13

5.4 Accessing the Web Interface .......................................................................... 15

5.5 Configuring Local SD Card Recording ............................................................ 16

6 Camera Maintenance .................................................................................................. 18

6.1 Optical Components ........................................................................................ 18

6.2 Camera Body .................................................................................................. 18

1 Welcome

This manual offers reference material and general information about the basic operation,

maintenance, and troubleshooting of the Dahua 4x2MP IP Camera. Read, follow, and M - ™ ulti flex

retain the following safety instructions. Heed all warning on the unit and in the operating instructions

before operating the unit. Keep this guide for future reference.

1.1 Important Safeguards and Warnings

Electrical safety

• Install the unit in accordance with the manufacturer’s instructions and in accordance with

applicable local codes.

• All installation and operation must conform to your local electrical safety codes.

• Do not overload outlets and extension cords, which may cause fire or electrical shock.

• Do not place the camera near or in a place where the camera may contact overhead power lines,

power circuits, or electrical lights.

• All input/output ports are SELV circuits. Ensure that SELV circuits are connected only to other

SELV circuits.

• Ground the unit using the ground connection of the power supply to protect the unit from damage,

especially in damp environments.

• Protect the plug and power cord from foot traffic, being pinched, and its exit from the unit.

• Units with or without an ON/OFF switch have power supplied to the unit whenever the power cord

is inserted into the power source; however, the unit is operational only when the ON/OFF switch

is in the ON position. The power cord is the main power disconnect device for switching off the

voltage for all units.

• Operate the unit only from the type of power source indicated on the label. Before proceeding,

disconnect the power from the cable to be installed into the unit.

• For external power supplied units, use only the recommended or approved power supplies.

• Limited power sources must comply with EN 60950. Substitutions may damage the unit or

cause fire or shock.

• -For 24 VAC units, voltage applied to the unit’s input power should not exceed ±25%. User

supplied wiring must comply with local codes (Class 2 power levels). Do not ground the

supply at the terminals or at the unit’s power supply terminal.

• Contact the local dealer or the power company to verify the correct power supply.

• Do not supply power via the Ethernet connection (PoE) when power is already supplied via the

power connector.

• Do not attempt to service the unit. Opening or removing covers may expose you to dangerous

v oltage or other hazards. Refer all servicing to qualified personnel.

• If the unit is damaged and requires service, unplug the unit from the main AC power supply and

from the PoE supply and refer to qualified service personnel. Damage may include, but is not

limited to:

• The power supply cord or plug is damaged.

• Liquid has spilled in or on the unit.

• An object has fallen on the unit.

• The unit has been dropped and the housing is damaged.

Produktspezifikationen

Marke:	Dahua Technology
Kategorie:	Überwachungskamera
Modell:	DH-IPC-PDBW5831N-B360
