TDR-RVM32
Rear-View Mirror with Front and Rear Camera,
DVR and GPS Functions
1 of 4

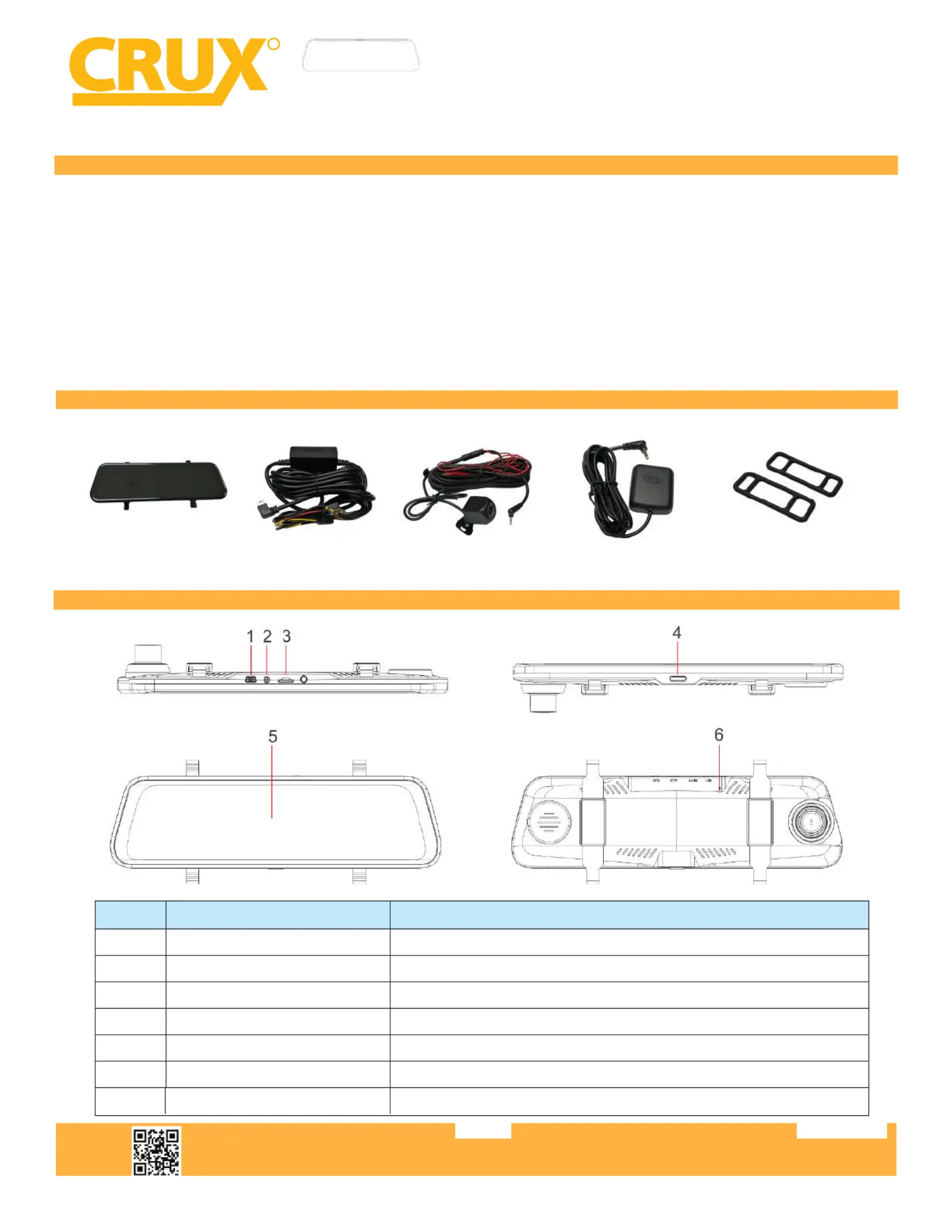

PRODUCT FEATURES:
- 9.66” IPS display 2K resolution full view monitor with touch screen operation.
-Wide angle HD front and rear camera.
- DVR function with 32GB micro SD card included.
- Loop video recording with real-time playback.
-Access and configure your dash cam videos via the Viidure app, using cloud technology
- Split screen viewing of front and rear cameras.
-Equipped with GPS logging, automatic time zone synchronization, and an integrated compass.
- Audio recording with built-in microphone.
- Collision detection sensor automatically video in the event of a collision./ motion detection saves
PARTS INCLUDED:
Rear View Mirror DVR Power Harness Backup Camera Rubber StrapsGPS Antenna
MIRROR CONTROL BUTTONS:
No. Name Funcon
1USB Port 5V Power
2Video Input Rear Camera Input
3 TF Memory Card TF Card Slot
4Power Buon Long press to turn On/O | Short press to turn o backlight
5Touchscreen Display Panel 9.66” High Denion Touchscreen
6Reset Buon System Reset
7
7 Rear Camera Input ear iew amera R V C
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.031224
TDR-RVM32
Rear-View Mirror with Front and Rear Camera,
DVR and GPS Functions
2 of 4
R
INTERFACING SOLUTIONS
INSTALLATION INSTRUCTIONS:
BACKUP CAMERA
1. Run the backup camera extension cable from the rear view mirror locaon along the headliner and
towards the trunk of the vehicle. Look for a suitable locaon for the backup camera and install using the
bracket. Tap the Red camera power wire to +12V backup light and the black wire to ground. Plug in the
camera cable to the extension cable connector.
GPS ANTENNA
2. Run the GPS antenna cable from the rear view mirror locaon towards the A pillar. Aach the GPS
antenna on the dashboard using double sided tape.
POWER CONNECTION
3. Starng from the rear view mirror locaon, run the power harness towards the fuseblock. The
fuseblock can be located either on the driver or passenger side wall. Look for a fuse that has constant
power (Baery) with 10 Amp capacity. Remove the fuse and insert the Yellow fused wire of the power
harness. Look for a fuse that is switched power (ACC) with 10 Amp capacity. Remove the fuse and insert
the RED fused wire of the power harness. Tap the ground terminal to a solid ground point such as a
screw or bolt.
MIRROR/DVR INSTALLATION
4. Plug in the GPS antenna, backup camera and mini USB power connectors to the mirror/DVR. Use the
rubber straps provided to secure the mirror in front of the original rear view mirror. Slide out the front
camera assembly to clear the rear view mirror.
TESTING THE MIRROR/DVR
Turn ignion on and test the front camera for funconality. Put the gear in reverse and check for the
backup camera image.
NOTE:
Do not remove the TF card while the mirror/DVR is powered on to avoid damaging the TF card.
It is recommended that the installer test the mirror/DVR and backup camera for funconality before
doing a permanent install. Power the mirror/DVR using the provided 5V power supply harness. Plug in
the backup camera and GPS antenna. Insert the TF card provided. Turn on the mirror/DVR power buon.
Check if front camera and backup camera image can be seen. Touch the mirror to change opons. The
DVR should be recording as soon as power is applied to the mirror.
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.031224
TDR-RVM32
Rear-View Mirror with Front and Rear Camera,
DVR and GPS Functions
3 of 4
R
INTERFACING SOLUTIONS
APPINSTALLATION INSTRUCTIONS:
1. Download the Viidure App: Scan the QR code provided with the product packaging using your
smartphone. For iPhone users, open the Camera app and focus on the QR code. A notification will
appear; tap it to be redirected to the App Store.
For Android users, use a QR code scanner or the Google Lens feature to scan the QR code and be
directed to the Google Play Store.
Download and install the Viidure app on your device.
- Launch the app after install
2. Select Camera WI-Fi & Connect
From the app, select your camera’s Wi-Fi network listed under
the available networks.
Enter the Wi-Fi password in the "Settings-Wi-Fi" option, and
return to the app after successful connection.
3. Configure Camera Settings:
Access the camera settings in the app to adjust video resolution, loop
recording options, collision sensing, parking mode, and other features.
Customize the settings according to your preferences.
select camera and
adjust settings
(see pg 4)
