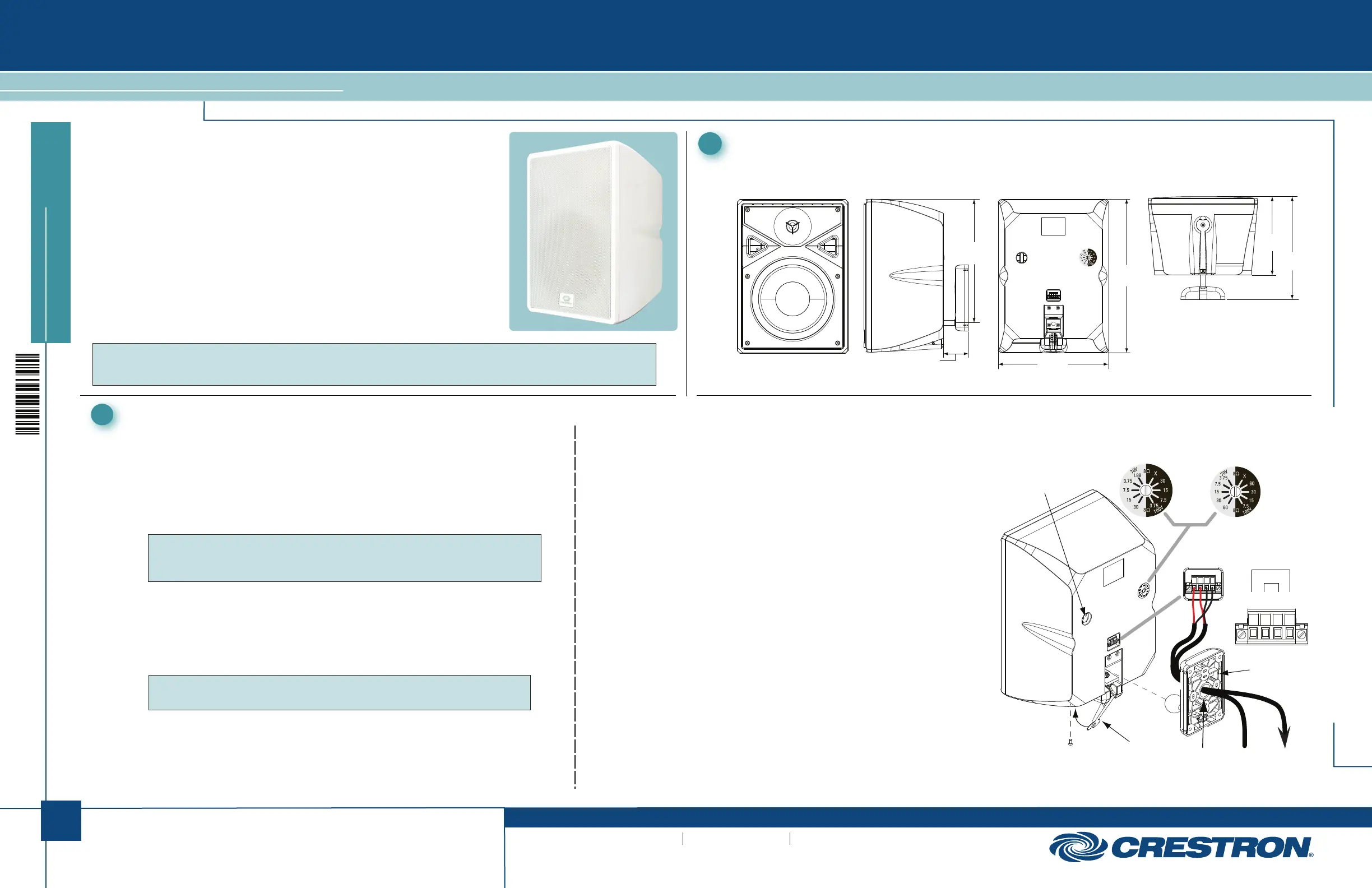

SarosÂź 2-Way Surface Mount Speakers
quickstart guide
SAROS_SR4T/SAROS_SR6T/SAROS_SR8T
www.crestron.com
Specifications subject to
change without notice.
SAROS_SR4T/SR6T/SR8T
4. Carefully mount the speaker onto the QuickBall mounting bracket, ensuring
that the ball is fully inserted into the cavity. Rotate and set the speaker at the
desired angle, and raise the ball socket clamp lever into position against the
bottom of the speaker to secure the speaker in position. Use the supplied
security screw to prevent the lever from being accidentally pulled, which
releases the speaker.
5. Attach a security cable (SPKA-ST-15, sold separately) to the security cable
attachment point. The other end of the cable must be attached to a secondary
point able to support several times the weight of the speaker.
6. The Saros speakers are equipped with a 70 V/100 V matching transformer for
distributed audio systems. The transformer tap selector switch on the rear
panel is used for setting the speaker power level. Use a flat blade screwdriver
to adjust the switch.
a. For SAROS_SR4T 70 V distributed systems, use the left side settings and
select from 1.88, 3.75, 7.5, 15, or 30 watts.
b. For SAROS_SR4T 100 V distributed systems, use the right side settings
and select from 3.75, 7.5, 15, or 30 watts. The X position should not be
used.
c. For SAROS_SR6T and SAROS_SR8T 70 V distributed systems, use the
left side settings and select from 3.75, 7.5, 15, 30, or 60 watts.
d. For SAROS_SR6T and SAROS_SR8T 100 V distributed systems, use the
right side settings and select from 7.5, 15, 30, or 60 watts. The X position
should not be used.
The switch may also be set to 8 operation, bypassing the transformer ℩
completely. This setting should be used only for 8 ohm audio systems.
NOTE: Before starting installation, ensure the wall and wall material are capable of supporting the combined
weight of the speakers and the wall mount assemblies. Refer to section for speaker weights.
QUICKSTART DOC. 7149E (2033424) 08.14
1
1Installation
SarosÂź speakers by CrestronÂź deliver professional grade performance and
flexible installation in a range of popular sizes for demanding commercial
applications. Solid construction and high-end components are hallmarks of the
complete Saros speaker line. Each Saros model is engineered to achieve a
smooth, even coverage pattern, and clear, natural sound quality through the
employment of a horn-loaded titanium dome tweeter, a high-performance
damped cone woofer, and a finely tuned crossover.
Featuring a unique “QuickBall” mounting system, the Saros speakers can be
mounted to any solid, flat surface with the ability to orient and aim the speaker
in virtually any position. The QuickBall bracket achieves a very clean and
stable installation using a tool-free ball-and-socket mechanism. Simply
position the speaker as desired and flip the clamp lever closed. A security
screw is included to deter theft by preventing the lever from being released.
Saros speakers, supplied in pairs, are available in black or white and can be
painted to blend with the surrounding architecture.
2Physical Views (SAROS_SR8T Shown)
Front View
(Grill Removed)e
10.73 in
(273 mm
)
2.16 in
(55 mm)
Side View
Rear View
(Mounting Bracket
Removed)
6.89 in
(175 mm)
9.05 in
(230 mm)
Bottom View
9.57 in
(244 mm)
13.31 in
(338 mm)
Security
Cable
Attachment
Point
Security
Screw
Speaker
Cable
Access
Hole
Ball Socket
Clamp Lever
Detachable
Screw Terminal Block
Quick Ball
Mounting
Bracket
From
Audio
Source
To
Parallel
Speaker
+ + - -
IN
THRU
SAROS_SR4T
Transformer Tap
Selection Switch
Label
SAROS_SR6T,
SAROS_SR8T
Transformer Tap
Selection Switch
SAROS_SR4T/SR6T/SR8T
Refer to the illustration to the right as necessary, and install the speakers as follows:
1. Route the cables from the audio source to the intended speaker locations while
following all appropriate local codes.
2. Attach the QuickBall mounting bracket directly to the wall or to a flush mounted
1-gang US, UK, or European electrical box, allowing the cable coming through
the wall (and the electrical box, if used) to exit through the speaker cable
access hole of the mounting bracket.
NOTE: If the mounting bracket is to be attached to an electrical box, be sure
it is also attached to surrounding framing to provide the support needed to
hold the weight of the speaker.
The QuickBall mounting bracket can also be mounted to a light pole or post
using pole mounting straps (not included).
3. Detach the 4-pin screw terminal block connector from the speaker. Connect the
audio source’s + and - outputs to the connector’s outer + and - (IN) terminals.
Maximum wire size is 12 AWG. Use the inner + and - (THRU) terminals to
connect a second speaker in parallel.
NOTE: The number of speakers that can be added is limited only by the
specifications of the amplifier.
a. Route the audio source’s (and a second speaker’s) wiring through the
supplied weather boot (if used). Strip the wires 1/4 in (~6 mm), twist the
strands, insert them into the terminal block, and tighten the screws to
secure them.
b. Reattach the terminal block to the speaker connector.
quickstart guide
SAROS_SR4T/SAROS_SR6T/SAROS_SR8T
www.crestron.com
Specifications subject to
change without notice.
SarosÂź 2-Way Surface Mount Speakers
SAROS_SR4T/SR6T/SR8T
QUICKSTART DOC. 7149E (2033424) 08.14
The specific patents that cover Crestron products are listed at patents.crestron.com.
Crestron, the Crestron logo, and Saros are either trademarks or registered trademarks of Crestron Electronics, Inc. in the
United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this
document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary
interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2014 Crestron Electronics, Inc.
3Specifications
2
SPECIFICATION SAROS_SR4T
Drivers
Woofer
Tweeter
Crossover Frequency
Impedance
Transformer Taps
Frequency Response
Frequency Range
Power Handling
Sensitivity
Environmental
Temperature
Humidity
Splash Resistance
SAROS_SR4T, SAROS_SR6T, SAROS_SR8T Specifications
4 in (102 mm) polypropylene with ring
mode decoupled cloth surround and steel
basket
0.79 in (20 mm) horn-loaded titanium dome
2.5 kHz
8 ohms nominal with transformer set to
8℩
1.88, 3.75, 7.5, 15, 30 watts at 70 V;
3.75, 7.5, 15, 30 watts at 100 V
100 Hz to 16 kHz (±3 dB)
80 Hz to 18 kHz (-10 dB)
100 watts program (8 ohms)
-2Âș to 120Âș F (-19Âș to 49Âș C)
5% to 95% RH (non-condensing)
IPx4 rated per IEC 60529
8 in (203 mm) polypropylene with ring
mode decoupled cloth surround and steel
basket
0.98 in (25 mm) horn-loaded titanium dome
2 kHz
8 ohms nominal with transformer set to
8℩
3.75, 7.5, 15, 30, 60 watts at 70 V;
7.5, 15, 30, 60 watts at 100 V
80 Hz to 16 kHz (±3 dB)
60 Hz to 18 kHz (-10 dB)
200 watts program (8 ohms)
-2Âș to 120Âș F (-19Âș to 49Âș C)
5% to 95% RH (non-condensing)
IPx4 rated per IEC 60529
SAROS_SR6T
6.5 in (153 mm) polypropylene with ring
mode decoupled cloth surround and steel
basket
0.98 in (25 mm) horn-loaded titanium dome
2 kHz
8 ohms nominal with transformer set to
8℩
3.75, 7.5, 15, 30, 60 watts at 70 V;
7.5, 15, 30, 60 watts at 100 V
90 Hz to 16 kHz (±3 dB)
70 Hz to 18 kHz (-10 dB)
-2Âș to 120Âș F (-19Âș to 49Âș C)
5% to 95% RH (non-condensing)
IPx4 rated per IEC 60529
150 watts program (8 ohms)
SAROS_SR8T
89.5 dB @ 1 W/1 m 90 dB @ 1 W/1 m 91.5 dB @ 1 W/1 m
The following table provides corrective action for possible trouble situations. If further
assistance is required, please contact a Crestron customer service representative.
Further Inquiries
To locate specific information or resolve questions after reviewing this guide, contact
Crestron's True Blue Support at 1-888-CRESTRON [1-888-273-7876] or, for assistance
within a particular geographic region, refer to the listing of Crestron worldwide offices at
www.crestron.com/offices.
To post a question about Crestron products, log onto Crestron’s Online Help at www.cre-
stron.com/onlinehelp. First-time users must establish a user account to fully benefit from
all available features.
Future Updates
As Crestron improves functions, adds new features, and extends the capabilities of the
SAROS_
SR4T,
SAROS_
SR6T, and
SAROS_
SR8T speakers
, additional information may
be made available as manual updates. These updates are solely electronic and serve as
intermediary supplements prior to the release of a complete technical documentation
revision.
Check the Crestron website periodically for manual update availability and its relevance.
Updates are identified as an “Addendum” in the Download column.
4Problem Solving
Troubleshooting
TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION
There is either no
sound or the sound
from the speakers is
intermittent.
There is a cable connection
error.
Verify the cable connections
between the amplifier and speakers.
The amplifier is not
receiving an input signal
or there is an amplifier
malfunction.
Verify that the amplifer is functioning
correctly, that it is receiving an input
signal, and that the correct input
source is selected.
There is a faulty device in
the system.
Verify that all devices in the system
are functioning properly.
Constant noise such as
buzzing, humming, or
hissing comes from the
speakers. There is a system
grounding fault.
Verify the system grounding
connection.
The low frequency
output is poor.
Verify speaker connection
polarity (i.e., + on speaker to
+ on amplifier).
Verify speaker connection polarity
(i.e., on amplifier to on speaker).+ +
Construction
Enclosure
Grille
Mounting
Dimensions
Height
Width
Depth
Positioning
Yaw (Horizontal)
Pitch (Vertical)
Roll
ABS plastic, textured finish, paintable
Aluminum, powder coated, paintable
Surface mount to a solid flat surface with
option to position over a flush-mounted
1-gang electrical box, 1-gang UK (BS
4662) electrical box, or 1-gang European
(DIN 49073) electrical box;
Pole mount (straps not included);
Rigging point for safety tether
(SPKA-ST-15 sold separately);
Theft-resistant security screw
8.67 in (220 mm)
5.91 in (151 mm)
6.50 in (165 mm), 8.66 in (220 mm)
with mounting bracket
± 30°
± 30°
360°
ABS plastic, textured finish, paintable
Aluminum, powder coated, paintable
Surface mount to a solid flat surface with
option to position over a flush-mounted
1-gang electrical box, 1-gang UK (BS
4662) electrical box, or 1-gang European
(DIN 49073) electrical box;
Pole mount (straps not included);
Rigging point for safety tether
(SPKA-ST-15 sold separately);
Theft-resistant security screw
13.31 in (338 mm)
9.57 in (244 mm)
± 30°
± 30°
360°
ABS plastic, textured finish, paintable
Aluminum, powder coated, paintable
Surface mount to a solid flat surface with
option to position over a flush-mounted
1-gang electrical box, 1-gang UK (BS
4662) electrical box, or 1-gang European
(DIN 49073) electrical box;
Pole mount (straps not included);
Rigging point for safety tether
(SPKA-ST-15 sold separately);
Theft-resistant security screw
11.19 in (285 mm)
8.08 in (205 mm)
6.70 in (170 mm), 8.86 in (225 mm)
with mounting bracket
± 30°
± 30°
360°
Weight 5.9 lb (~3 kg) 10.1 lb (~5 kg)8.3 lb (~4 kg)
6.89 in (175 mm), 9.05 in (230 mm)
with mounting bracket

Produktspezifikationen

Marke: Crestron
Kategorie: Lautsprecher
Modell: Saros SR6T-B-T-EACH

Brauchst du Hilfe?

Wenn Sie Hilfe mit Crestron Saros SR6T-B-T-EACH benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten


Bedienungsanleitung Lautsprecher Crestron

Crestron

Crestron ULTIMATE IC3-SA-WOOFER Bedienungsanleitung

29 August 2024
Crestron

Crestron ULTIMATE IC3-AW-SA-BOX-WOOFER Bedienungsanleitung

29 August 2024
Crestron

Crestron ULTIMATE IC3-AW-SA-TWEETER Bedienungsanleitung

29 August 2024
Crestron

Crestron ULTIMATE IWS82-AW-W-T-EACH Bedienungsanleitung

26 August 2024
Crestron

Crestron SAROS IC8T-W-T-EACH Bedienungsanleitung

25 August 2024
Crestron

Crestron ULTIMATE ICS8-AW-W-T-EACH Bedienungsanleitung

25 August 2024
Crestron

Crestron ULTIMATE IC8-DT-AW-W-T-EACH Bedienungsanleitung

25 August 2024
Crestron

Crestron SAROS ICT5T-22 Bedienungsanleitung

25 August 2024
Crestron

Crestron ULTIMATE IC6-AW-W-T-EACH Bedienungsanleitung

25 August 2024
Crestron

Crestron ULTIMATE IC8-AW-W-T-EACH Bedienungsanleitung

25 August 2024

Bedienungsanleitung Lautsprecher

Neueste Bedienungsanleitung fĂŒr -Kategorien-

Sonance

Sonance Visual Performance VP65 SST Bedienungsanleitung

16 Oktober 2024
Bowers And Wilkins

Bowers And Wilkins CWM664 Bedienungsanleitung

16 Oktober 2024
Focal

Focal Chorus 826 V Bedienungsanleitung

16 Oktober 2024
KEF

KEF Ci200ER Bedienungsanleitung

16 Oktober 2024
Steren

Steren SPK-1100BL Bedienungsanleitung

16 Oktober 2024
Aiwa

Aiwa SP-A100 Bedienungsanleitung

16 Oktober 2024
Trust

Trust GXT 628 Bedienungsanleitung

15 Oktober 2024
Pyle

Pyle PBMSPG6 Bedienungsanleitung

15 Oktober 2024
Marshall

Marshall Tufton Bedienungsanleitung

15 Oktober 2024
Sunstech

Sunstech SPUBT780 Bedienungsanleitung

15 Oktober 2024
