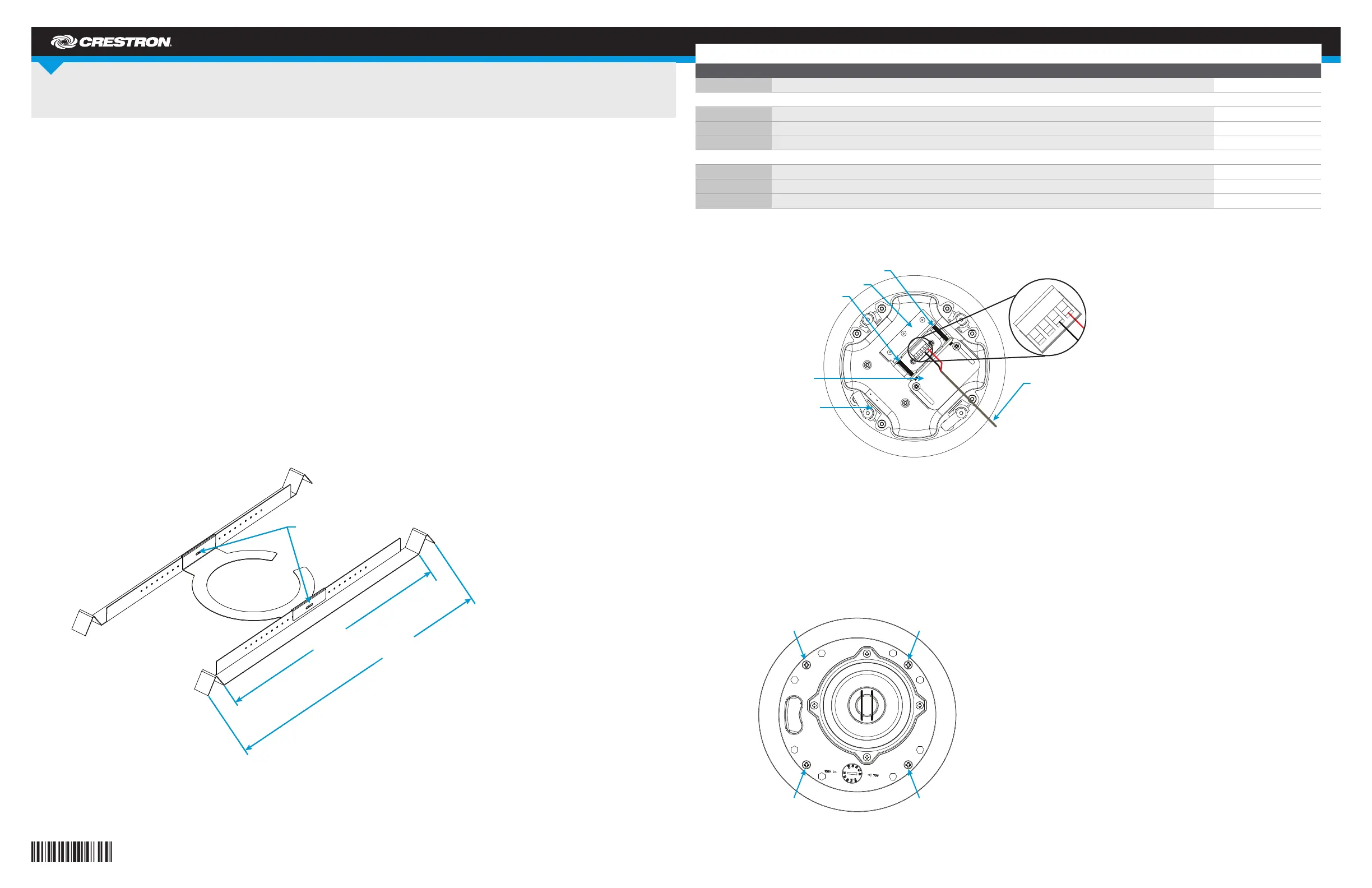

DO GUIDE

Mount or Remove the Speaker

1. Remove the connector from the speaker and terminate the wires, using the terminals as shown in the following diagram: red to and +

black to (not terminated in the diagram) as a pass-thru connection (parallel) to additional speakers. –. Use the second terminal pair and + –

2. Route the connector and speaker cable between the cable clamp plates and attach the connector to the speaker.

3. Tighten the two cable clamp screws to engage the cable clamp plates and secure the conduit (if used) and speaker cable(s). Do not overtighten.

4. Attach the SPKA-ST-15 Safety Tether/Tie Down Kit (sold separately) to the rigging point on the rear of the speaker enclosure, and secure it to

the structure as may be required by local building codes.

5. Insert and secure the speaker into the ceiling. The speaker has four toggle clamps that simplify the mounting process. The toggle clamps offer

two positions to accommodate both standard and extra thick surfaces up to 2.4 inches (61 mm). For extra thick tiles, reset the toggle clamps to

the upper position before continuing.

a. With the toggle clamps turned inward, insert the speaker into the opening.

b. Hold the speaker against the ceiling and begin tightening the four screws (shown in the following diagram) on the front of the speaker. The

toggle clamps rst rotate into clamping position (as indicated in the illustration below) and then begin holding the speaker to the ceiling.

c. Tighten the screws until the speaker is secure. Do not overtighten.

Remove the speaker by performing step 5 in reverse.

SAROS ICI4T/SAROS ICI6T

Saros® Integrator 2-Way In-Ceiling Speakers

The Saros® Integrator series of 2-way, in-ceiling speakers deliver easy installation and excellent performance in 4- and 6-inch sizes for cost-sensitive

commercial applications.

Aside from physical dimensions, the ICI4T and ICI6T speakers install in an identical manner. For simplicity within this guide, the term “speaker” is used except

where noted.

DO Install the Speaker

Prepare the Mounting Hole

Before nalizing the speaker location, check to make sure there are no xtures, pipes, air ducts, joists, or other possible obstructions. If applicable, use a

good quality stud nder to locate joists. If there are no obstructions, use the supplied template to trace an outline of the mounting hole.

For drop tile ceilings, remove the ceiling tile and place on a at surface to trace the mounting hole. For drywall or standard construction ceilings, use the

template to trace the mounting hole directly on the ceiling.

Install the Speaker Cable

Run the speaker cable from the audio source to the speaker location, observing all appropriate local codes. Strip the ends of the speaker cable’s wires

approximately 1/8" to 3/16" (~3 mm to ~5 mm), and twist the strands.

NOTE: Install in accordance with all local and national electrical codes.

Install the Tile Bridge (Drop Tile Ceiling Installations Only)

The included tile bridge components provide proper support when the speaker is installed in a typical drop tile ceiling, as shown in the following diagram.

1. Based on the location of the mounting hole determined in “Prepare the Mounting Hole” above, use the two supplied screws to attach the support

ring to the rails so that when installed, the ring is aligned with the mounting hole and the rails rest on the ceiling grid frame.

2. The support ring position on the rails is adjustable to enable off-center speaker positioning. The tile bridge assembly can be maneuvered to t

through the speaker cutout in blind-mount situations.

Tile Bridge Assembly

DO Check the Box

QUANTITY ITEM PART NUMBER

1 Rails, Mounting 2046653

Items for SAROS ICI4T

1 Template, Cutout 2046997

1 Grille 2047257

1 C-Ring, Mounting 2047136

Items for SAROS ICI6T

1 Template, Cutout 2046996

1 Grille 2047256

1 C-Ring, Mounting 2047137

Clamp screw

Clamp screw Clamp screw

Clamp screw

Cable clamp plate

Cable clamp screw

Cable clamp plate Speaker wire

Safety tether rigging point

Cable clamp screw

22.06 in

(560 mm)

22.06 in

(560 mm)

Insert screws

(supplied)

25 3/4 in

(655 mm)

25 3/4 in

(655 mm)

DO GUIDE DOC. 7842B (2046253) 05.18

Specicat ions subject t o change without not ice.

Set the Transformer Tap Selector Switch

The speakers are equipped with a 70/100 V matching transformer for distributed audio systems. The transformer tap selector switch on the front panel is used

to set the speaker power level. Use a at blade screwdriver to adjust the switch shown in the following diagram.

• For SAROS ICI4T and SAROS ICI6T 70 V systems, use the settings and select from , , , or watts.70V 3.8 7.5 15 30

• For SAROS ICI4T and SAROS ICI6T 100 V systems, use the settings and select from , , or watts. The position should not be 100V 7.5 15 30 N/A

used.

The switch may also be set to operation, bypassing the transformer completely. This setting should be used only for 8 Ω audio systems.8Ω

Install or Remove the Grille

To install the grille, place the grille in position on the speaker and press around the perimeter until the grille is in place.

To remove the grille, use an unfolded paper clip to hook into the grille and pull it away from the speaker.
