MP-AMP30
Media Presentation Audio Amplifier
crestron.com | 800.237.2041
>Compact stereo power amplifier
>15 Watts per channel into 8 or 4 Ohms
>Stereo or mono-summed operation
>High-efficiency Class D topology
>Energy saving design reduces power consumption
when idle
>Convection cooled for noiseless operation
>Simple volume, bass, and treble adjustments
>Built-in loudness contour circuit
>Electronic short-circuit and overload protection
>Detachable terminal block speaker connections
>Unbalanced RCA line input, 3’ cable included
>Integral surface mounting flanges
>UL 2043 compliant for installation within a
plenum-rated suspended ceiling[1]
The Crestron® MP-AMP30 provides a convenient, low-cost audio amplifier
solution for a variety of applications. A perfect complement to the entire
Media Presentation line from Crestron, it features a compact surface-
mountable design that installs virtually anywhere
without requiring an equipment rack. The MP-AMP30 meets the
requirements of UL 2043 for installation in an environmental air-handling
(plenum) space, such as above a suspended ceiling[1].
High-efficiency Class D circuitry delivers 15 Watts per channel to drive
one or two pairs of 8 Ohm speakers, or a single pair of 4 Ohm speakers,
making it ideal to support stereo speakers at the front of a room or mono
speakers in the ceiling. Mono-summed operation is enabled by changing
two jumpers on the front panel.
Refined, reliable operation is ensured thanks to pop-free turn-on circuitry
and electronic short-circuit and overload protection. An energy-saving
design achieves optimum efficiency under load, and the amplifier
powers down automatically when no input signal is detected for more
than 5 minutes, reducing overall power consumption and heat as part of a
green system design. The amplifier quickly powers back on the instant an
input signal is detected. Its extruded aluminum housing is both attractive
and effective at dissipating heat, affording a silent running design without
cooling fans.
Installation and setup of the MP-AMP30 is simple. Detachable output
connectors facilitate the termination of speaker wiring up to 16 gauge.
RCA inputs connect directly to the line output of a video projector or
display, audio processor, mixer, or AV switcher. Rotary controls provide for
adjusting the overall speaker volume, as well as bass and treble. For quiet
environments, loudness compensation is employed by setting the volume
control below the center detent position.
SPECIFICATIONS
Audio
Input Volume Range: -55dB to +20dB
Loudness: Active at volume settings below center detent
Bass Gain Range: ±15dB @ 100Hz
Treble Gain Range: ±15dB @ 10kHz
Frequency Response: 20Hz to 20kHz ±0.5dB
S/N Ratio: 75dB 20Hz to 20kHz A-weighted
THD+N: 0.7% 20Hz to 20kHz
Output Power: 15 Watts per channel at 8 or 4 Ohms
Amplifier Protection: Electronic short-circuit and overload protection
Connectors – Top Panel
AUDIO OUT 8Ω: (2) 2-pin 3.5mm detachable terminal blocks;
Left & right channel speaker-level audio outputs;
Wire Size: Connector accepts 16 AWG maximum;
Output Power: 15 Watts per channel at 8 or 4 Ohms
Connectors – Bottom Panel
AUDIO IN: (2) RCA female, unbalanced stereo line-level audio input;
Maximum Input Level: 2 Vrms;
Input Impedance: 18k Ohms;
3 ft (0.9 m) stereo RCA-RCA cable included
PWR 24VDC 2.0A: (1) 2.1 x 5.5 mm DC power connector;
24 Volt DC power input;
(power pack included)
MP-AMP30 Media Presentation Audio Amplifier
crestron.com | 800.237.2041
Controls & Indicators
BASS: Rotary low frequency boost/cut adjustment, flat at center detent
TREBLE: Rotary high frequency boost/cut adjustment, flat at center detent
VOL: Rotary input level adjustment
ST, MO: Mode selection jumpers, select stereo or mono-summed
operation
Power: (1) green LED, indicates operating power supplied from external
power pack
Power Requirements
Power Pack: 2.0 Amps @ 24 Volts DC;
100-240 Volts AC, 50/60 Hz power pack included
Environmental
Temperature: 41° to 104°F (5° to 40°C)
Humidity: 10% to 90% RH (non-condensing)
Heat Dissipation: 21 BTU/Hr
Enclosure
Chassis: Aluminum w/polycarbonate label overlay and (4) integral
mounting flanges, meets the requirements of UL 2043 for installation in an
environmental air-handling (plenum) space[1]
Mounting: Freestanding or surface mount
Dimensions
Height: 5.85 in (149 mm)
Width: 3.91 in (100 mm)
Depth: 1.43 in (37 mm)
Weight
11.8 oz (335 g)
MODELS & ACCESSORIES
Available Models
MP-AMP30: Media Presentation Audio Amplifier
Included Accessories
CBL Series: Crestron® Certified Interface Cables
CBL-KAUDIO-RCAM2-L-P-50: RCA Stereo Audio Cable Kit, Plenum, 50 ft
CBL-SPK-P-35: Speaker Cable, 16AWG, Plenum, 35 ft
CBL-PWR-EXT24V-P-6: DC Power Extension Cable, Plenum, 6 ft
MP-WP Series: Media Presentation Wall Plates
MPI-WP Series: Media Presentation Wall Plates - International Version

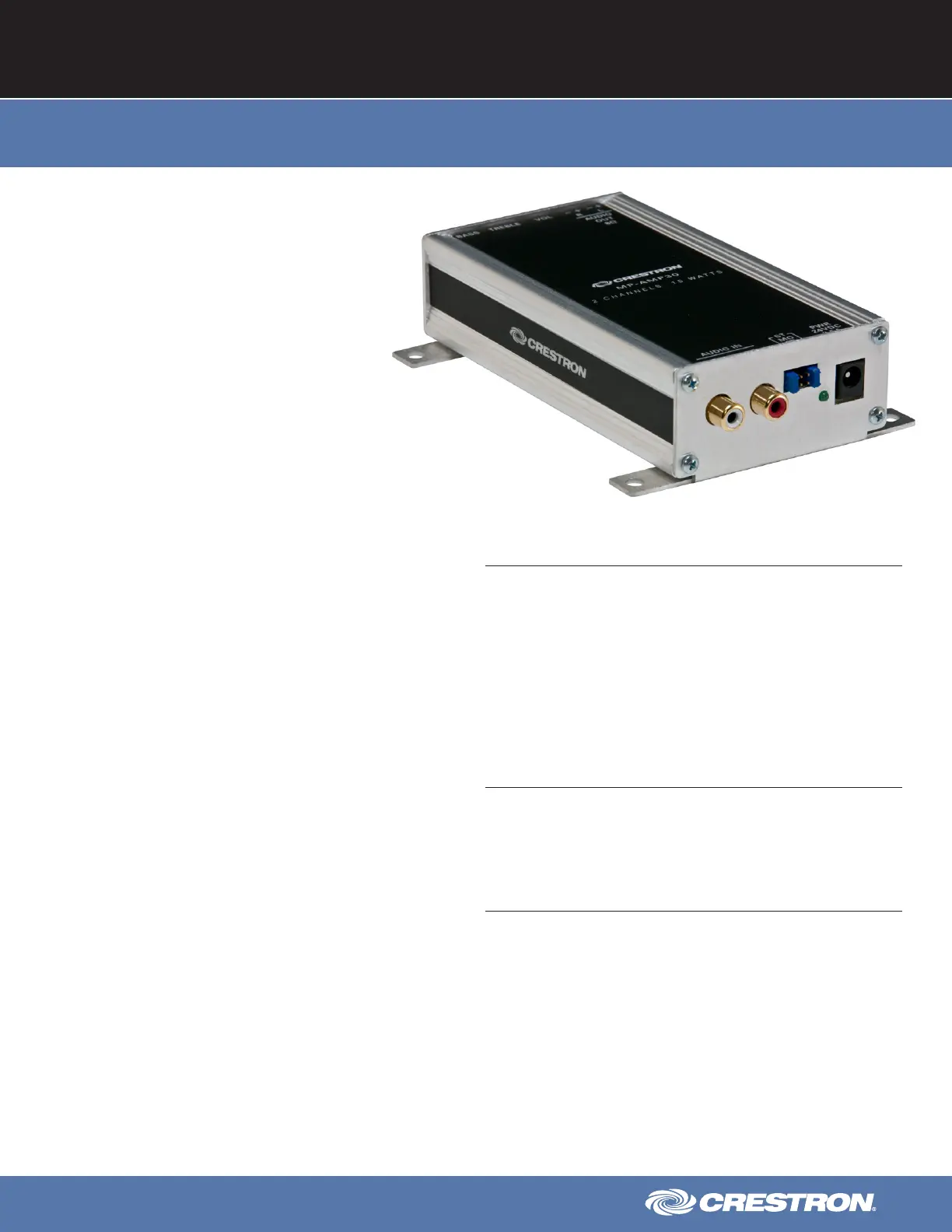

MP-AMP30 – Front, Top and Bottom Views
MP-AMP30 Media Presentation Audio Amplifier
Crestron Electronics, Inc. 15 Volvo Drive | Rockleigh, NJ 07647
Tel: 800.237.2041 / 201.767.3400 | Fax: 201.767.1903
www.crestron.com
All brand names, product names and trademarks are the property of their respective owners.
©2013 Crestron Electronics, Inc.
Specifications subject to change without notice. Revised 04/03/13
Notes:
1. The MP-AMP30 is tested by an NRTL (Nationally Recognized Testing Laboratory) and complies
to ANSI/UL2043 (Fire Test For Products Installed in Air-Handling Spaces). Full compliance
requires plenum rated cables such as Crestron audio cable, CBL-KAUDIO-RCAM2-L-P-50
CBL-SPK-P-35 speaker cable, and DC power extension cable. Please CBL-PWR-EXT24V-P-6
note that the included power pack is not ANSI/UL2043 compliant, and thus cannot be installed
in an air-handling space unless enclosed in a suitable plenum-rated enclosure.
This product may be purchased from an authorized Crestron dealer. To find a dealer, please
contact the Crestron sales representative for your area. A list of sales representatives is available
online at www.crestron.com/salesreps or by calling 800-237-2041.
The specific patents that cover Crestron products are listed online at: .patents.crestron.com
Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron
Electronics, Inc. in the United States and/or other countries. Other trademarks, registered
trademarks, and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Crestron disclaims any proprietary interest in the marks
and names of others. Crestron is not responsible for errors in typography or photography.
Specifications are subject to change without notice. ©2013 Crestron Electronics, Inc.
