DO GUIDE

HD(I)-XSPA

4K Ultra High-Denition 7.1 Surround Sound AV Receiver

DO Install the Device

The HD(I)-XSPA can be mounted in a rack or stacked with

other equipment. Two “ears” are provided so that the unit

can be rack mounted. These ears must be installed prior

to mounting. The only tool required is a #1 or #2 Phillips

screwdriver.

WARNING: To prevent bodily injury when mounting or

servicing this unit in a rack, observe the following guidelines:

• When mounting this unit in a partially lled rack, load

the rack from the bottom to the top with the heaviest

component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the

stabilizers before mounting or servicing the unit in the

rack.

CAUTION: To prevent equipment damage, use only the rack

ears Crestron® provides for this device.

NOTE: If rack mounting is not required, remove the feet from

the bottom of the unit with a screwdriver.

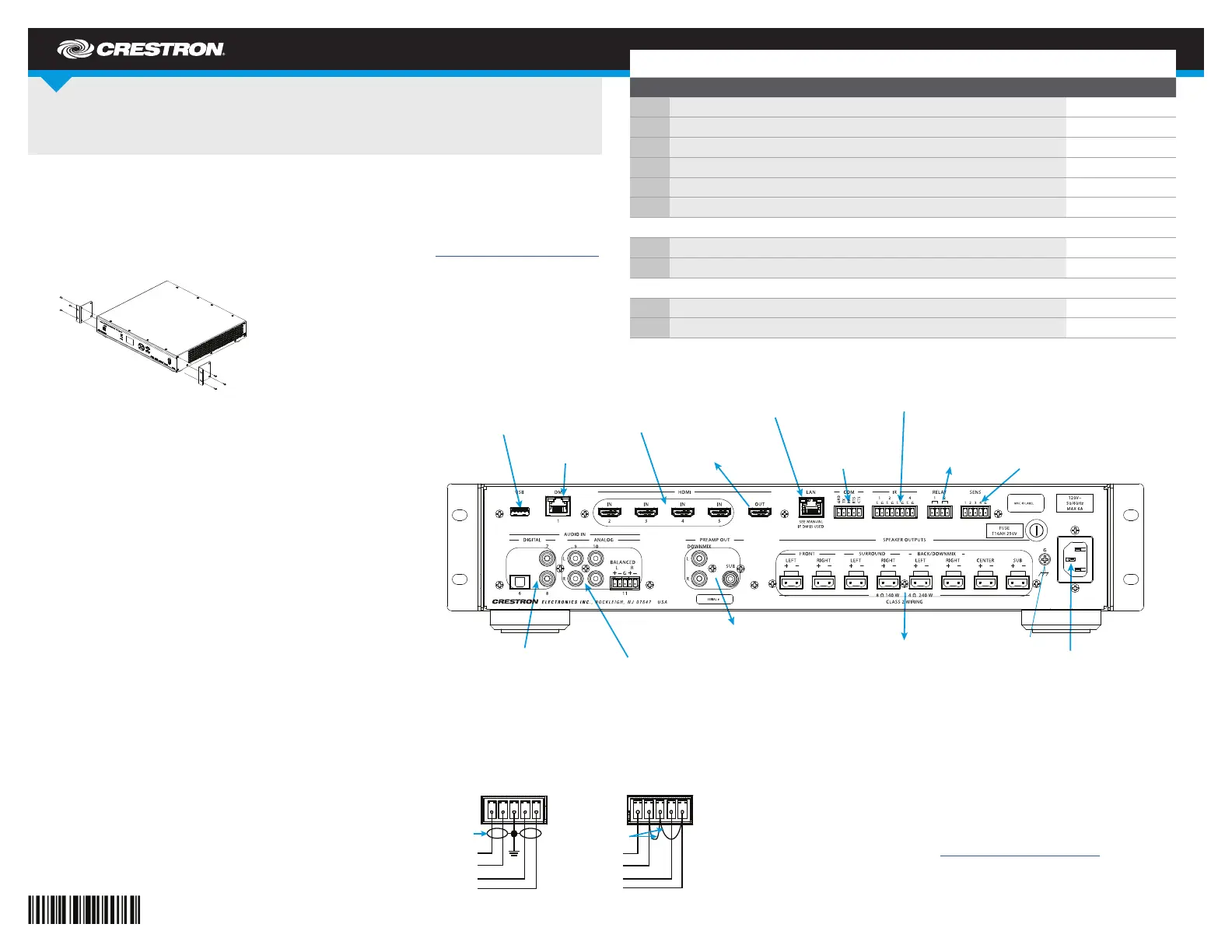

DO Make Connections to the Device

Make the necessary connections to the device as called out

in the diagram to the right. Connect the power last.

CAUTION: Keep the device unplugged until all of the input,

network, and speaker wiring is complete.

CAUTION: Check the speaker wires for shorts and frayed

wiring around the SPEAKER OUTPUTS connectors.

NOTE: The DM and LAN ports are for intra-building use only

and should not be connected to lines that run outside of the

building in which the unit is located.

NOTE: If the DM port is connected to a DM® switch, the LAN

port should not be connected to the local area network.

Additionally, the DM switch

can be used to congure the

network settings. Refer to

the DigitalMedia™ Design

Guide (Doc. 4546) at

www.crestron.com/manuals

for details.

NOTE: Ensure the unit is

properly grounded by con-

necting the chassis ground

lug to an earth ground

(building steel).

One balanced/unbalanced audio input is provided, utilizing a 5-pin terminal block connector. Refer to the following diagrams for

connecting a source.

DO Congure the Device

While the HD(I)-XSPA can be used right out of the box, the device can be

further customized with Crestron Toolbox™ or the front panel controls.

For details on using Crestron Toolbox, refer to the Crestron Toolbox help

le. For details on using the front panel controls, refer to the HD-XSPA

supplemental guide (Doc. 7448) at www.crestron.com/manuals.

DO Check the Box

QTY PRODUCT PART NUM.

2 Bracket, Rack Ear, 2U 2034434

8 Connector, 2-Pin 2012361

1 Connector, 4-Pin 2003576

3 Connector, 5-Pin 2003577

1 Connector, 8-Pin 2003580

1 Cable, USB 2.0, A - B, 6’ (1.83 m) 2014966

Items for HD-XSPA

1 Power Cord, 6' 7" (2 m) 4512528

1 Fuse, 10.0 A, Time Lag, 1.25" x 0.25", Ceramic Cartridge, 250 V 2017577

Items for HDI-XSPA

1 Varies by countryPower Cord

1 Fuse, 5.0 A, Time Lag, 5 x 20 mm, Ceramic Cartridge, 250 V 2017578

Wiring for Balanced Input

Right

Left

Shield

Wiring for Unbalanced Input

Right

Left

Jumpers

L R

+ - + -G

L R

+ - + -G

USB:

To HID-Compliant Keyboard or

Mouse

AUDIO IN (DIGITAL):

From Digital Audio Sources AUDIO IN (ANALOG):

From Analog Audio Sources

PREAMP OUT:

To Audio

Amplier

Ground

SPEAKER OUTPUTS:

To Speakers POWER:

From Line Voltage

DM:

From DigitalMedia Source

HDMI® IN:

From HDMI

Sources HDMI OUT:

HDMI Device

COM:

RS-232 Device RELAY:

To Controllable Device

SENS:

From Sensors

LAN:

10BASE-T/100BASE-TX Ethernet to

LAN

IR:

To IR Controlled Devices

DO GUIDE DOC. 7730B (2042843) 09.15

Specications subject t o change without notice.

DO Operate the Device

Switch the Power

To turn the amplier and audio outputs on,

move the POWER switch to |. To turn the

amplier and audio outputs off, move the

POWER switch to . This will also reset the

unit.

Select a Source or Decoding Mode

1. Press , followed by the center of HOME

the Nav Pad.

2. Press up or down on the Nav Pad to

highlight Source, and then press the

center of the Nav Pad to select a source

or decoding mode.

• Select a source:

a. Press up or down on the

Nav Pad to highlight Source

Select and press the center of

the Nav Pad.

b. Press up or down on the Nav

Pad to highlight the desired

source and press the center of

the Nav Pad.

• Select a decoding mode:

a. Press up or down on the Nav

Pad to highlight Decoding

Mode and press the center of

the Nav Pad.

b. Press up or down on the Nav

Pad to highlight the desired

decoding mode and press the

center of the Nav Pad.

Adjust Volume and Mute

(Theater Output Only)

To adjust the theater output’s volume level,

press or VOL VOL .

NOTE: The downmix output’s volume level

is adjusted via control system programming.

To mute the theater output, press . An MUTE

indicator lights on the bottom of the display.

Press MUTE again to unmute the output.

NOTE: The downmix output’s mute function

is controlled from the front panel controls.

For details on using the front panel controls,

refer to the HD-XSPA supplemental guide

(Doc. 7448) at www.crestron.com/manuals.

Other Functions

Other functions are available using the front

panel controls. For details on using the

front panel controls, refer to the HD-XSPA

supplemental guide (Doc. 7448) at

www.crestron.com/manuals.

DO Learn More

Visit the website for additional information and

the latest rmware updates. To learn more about

this product, use a QR reader application on your

mobile device to scan the QR image.

Crestron Electronics

15 Volvo Drive, Rockleigh, NJ 07647

888.CRESTRON

www.crestron.com

As of the date of manufacture, the product has been tested and found to comply with specications for CE marking.

The HD-XSPA is listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:

(1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference

that may cause undesired operation.

CAUTION: Changes or modications not expressly approved by the manufacturer responsible for compliance could void the

user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Industry Canada (IC) Compliance Statement

CAN ICES-3(B)/NMB-3(B

Rack Mounting Safety Precautions

• Elevated Operating Ambient Temperature: If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack

environment may be greater than room ambient temperature. Therefore, consideration should be given to installing the equipment in an environment

compatible with the maximum ambient temperature (Tma) specied by the manufacturer.

• Reduced Airow: Installation of the equipment in a rack should be such that the amount of airow required for safe operation of the equipment is not

compromised.

• Mechanical Loading: Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical

• Circuit Overloading: Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the

circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when

addressing this concern.

• Reliable Earthing: Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other

than direct connections to the branch circuit (e.g., use of power strips).

Electrical Connection

“This product must be connected to an earthed mains socket-outlet.”

• Finland: “Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan.”

• Norway: “Apparatet må tilkoples jordet stikkontakt.”

• Sweden: “Apparaten skall anslutas till jordat uttag.”

The specic patent s that cover Crestron products are listed at . Product warranty can be found at .ht t p://www.crestron.com/ legal/patent s/ www.crestron.com/warranty

Cert ain Crestron products contain open source software. For specic information, please visit www.crestron.com/opensource
