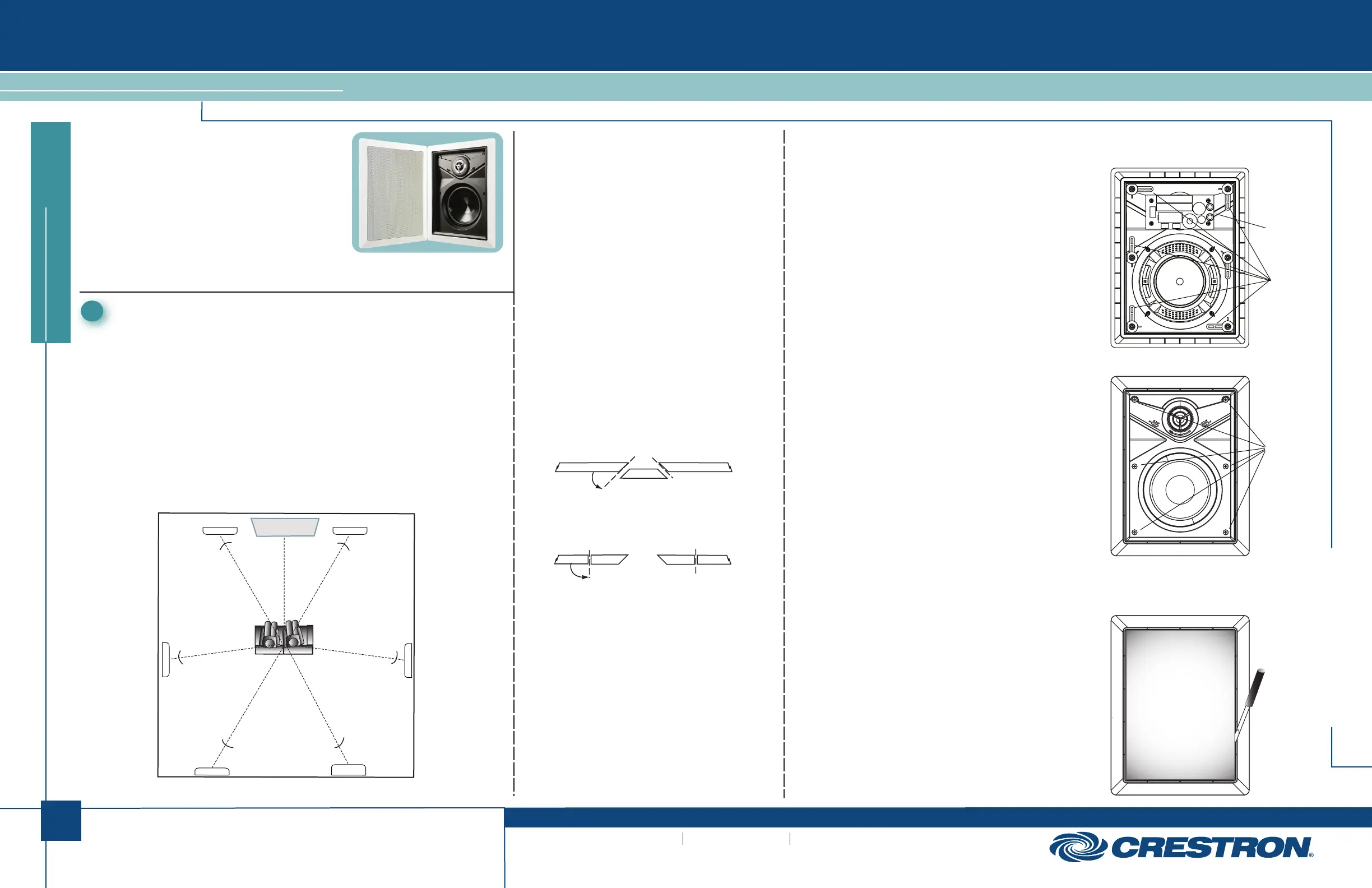

Excite™ In-Wall Speakers
quickstart guide
IW5, IW6, IW8
www.crestron.com
888.273.7876 201.767.3400
Specifications subject to
change without notice.
IW5, IW6, IW8
Mount/Remove Speakers
The in-wall speakers include six toggle clamps that simplify
the mounting process. If grilles are mounted on the speak-
ers, remove them before proceeding. (Refer to “Install/
Remove Grilles”, below.)
1. Connect the speaker cable wires to the spring terminals
by pressing the top of the terminals down and inserting
the exposed strands into the hole. Make sure that left
and right channels are connected to the left and right
speakers, respectively, and that the wires go to the + +
(red coded) terminals, and the wires go to the – –
(black coded) terminals.
2. With the toggle clamps turned inward, insert the
speaker into the opening. As you tighten the six screws
on the front of the speaker, the toggle clamps will first
rotate into clamping position and then begin holding the
speaker to the wall. Tighten the screws until the
speaker is secure; do not overtighten.
3. Speaker removal is accomplished by reversing the
procedures given in steps 1 and 2 above.
a. Loosen the front screws to unclamp the speaker.
Continue to loosen the screws until the toggle
clamps rotate inward.
b. When the speaker is loose, carefully pull the
speaker out from the opening.
c. Disconnect the wires from the terminals.
Install/Remove Grilles
To install the grille, place it in position and carefully press
until the surface of the grille is flush with the surface of the
outer flange.
To remove the grille, insert a slim, flat-blade screwdriver
between the grille and the outer flange, and carefully pry
the grille up and out.
It may be necessary to press one or more of the mounting
screws and toggle clamps toward the front to push the grille
free of the flange.
1
1Installation
For Regulatory Compliance information, refer to the latest
version of Doc. 7148.
Ideal components of every Sonnex™, Prodigy®, or
Adagio® multiroom audio system, Excite™ speakers
by Crestron® offer excellent sound quality and
flexible installation in a range of popular sizes and
configurations.
QUICKSTART DOC. 7128B (2029451) 05.11
The IW5, IW6, and IW8 rectangular in-wall speakers,
sold in pairs, include paint plugs installed on the front
of the speakers, perforated metal grilles, and a
mounting cut out template. The matte white ABS
plastic frame and white metal grille can be painted
to suit any room decor.
Determine Placement In Room
For applications such as classrooms, conference rooms, and multi-room
audio distribution installation, the Excite in-wall speakers are available in
three different sizes providing a great deal of flexibility to suit almost any
application.
For home theater applications, the Excite in-wall speaker line is an excellent
choice for the front, surround, and back channels.
As indicated in the figure below, suggested placement is at the angles from
the 0° primary viewing/ listening angle. For best results, place speakers
anywhere from the listener’s ear level to 2 to 3 feet (~ 0.6 to 0.9 meters)
above. 45°
90°
Prepare Mounting Holes
Before finalizing the speaker locations, check to
make sure there are no fixtures, pipes, air ducts,
power cables or other wiring, or other possible
obstructions. Use a good quality stud finder to
locate wall framing.
If you are not certain that there are no obstructions
in the proposed speaker locations, carefully drill a
small hole just through the wall near the middle of
the location(s) and use one of the commercially
available inspection devices designed for this
purpose, or do one of the following:
● Use a piece of stiff wire, bent into an “L”
shape, with one end long enough to explore
an area equal to the size of the speaker with
the toggle clamps extended. Insert the wire
into the hole, make sure it moves freely
through the proposed speaker area and that
there is sufficient depth, or
● Use a drywall saw to cut a small hole at a 45°
angle toward the inside of the hole. An angle
cut simplifies repair since the removed piece
can be reinserted to help plug the hole.
If there are no obstructions, use the supplied
template to trace outlines of the mounting holes on
the wall. Cut the final mounting holes at a 90°
angle to the wall.
Paint the Speakers/Grilles
Speaker rim and/or grille painting should be done
prior to mounting.
1. Leave the painting plug installed in the front of
the speaker.
2. Carefully remove the material on the underside
of the grille and set it aside for reinstallation. It
may be necessary to use a knife or other sharp
instrument to free an edge of the material so it
can be peeled away. Use care to avoid cutting
the material.
3. Dry brush or lightly spray the surface to be
painted. Use care to avoid clogging the holes
in the grille.
Rear View (Typical)
Spring
Terminals
Toggle
Clamps (6)
Front View (Typical)
Tighten
Screws
Install Cables
Run the cables from the audio source to each speaker
location following all appropriate local codes. Strip the
ends of the speaker cable wires 1/4” to 1/2” (6 mm to
12 mm) and twist the exposed strands.
0°
Left
Surround
Left
Back
Right
Back
Right
Surround
110°
135°
90°
150°
135°
150°
110°
90°
Left
Front
Right
Front
22°
30°
22°
30°
Excite™ In-Wall Speakers
quickstart guide
IW5, IW6, IW8
www.crestron.com
888.273.7876 201.767.3400
Specifications subject to
change without notice.
IW5, IW6, IW8
Crestron, the Crestron logo, Adagio, Excite, Prodigy and Sonnex are trademarks or registered trademarks of
Crestron Electronics, Inc. in the United States and other countries. Other trademarks, registered trademarks,
and trade names may be used in this document to refer to either the entities claiming the marks and names
or their products. Crestron disclaims proprietary interest in the marks and names of others.
©2011 Crestron Electronics, Inc.
The recommended setting for the low frequency
range (LF) switch is – to reduce bass when the
speaker is in a corner, + to increase bass when the
speaker is not near a wall or ceiling corner, and 0
(neutral) when the speaker is near one wall or
ceiling corner
3Specifications
QUICKSTART DOC. 7128B (2029451) 05.11
2
SPECIFICATION
Woofer
Size
Material
Tweeter
Size
Material
Surround Material
Environmental
Temperature
Humidity
Dimensions
Overall Height
Overall Width
Opening Height
Opening Width
Installed Depth
10.99 in (279 mm)
8.47 in (215 mm)
9.69 in (246 mm)
7.17 in (182 mm)
3.62 in (92 mm)
IW5, IW6, IW8 Specifications
Weight
For Regulatory Compliance information, refer to the latest
version of Doc. 7148.
Minimum Performance
Frequency Response (-3dB)
Power Handling (Program)
Sensitivity (1W @ 1m)
Electrical
Bass Switch
Tweeter Switch
Impedance / Voltage
Crossover Type
Terminations
Mechanical
Baffle Material
Mounting System
Grill Material
Swivel Tweeter
Paint Mask
Basket Material
Maximum Depth
Available Colors
1
5.25 in (134 mm)
Polypropylene
1
0.79 in (20 mm)
Treated cloth
Rubber
1
6.50 in (165 mm)
Polypropylene
1
0.79 in (20 mm)
Treated cloth
Rubber
1
8.00 in (203 mm)
Polypropylene
1
0.98 in (25 mm)
Treated cloth
Rubber
60 Hz - 20 kHz
60 W
87 dB
55 Hz - 20 kHz
75 W
89 dB
50 Hz - 20 kHz
125 W
89 dB
Yes
Yes
8 Ohm
2nd Order L-R
Spring Terminals
Yes
Yes
8 Ohm
2nd Order L-R
Spring Terminals
Yes
Yes
8 Ohm
2nd Order L-R
Spring Terminals
ABS
Toggle Clamps
Aluminum
Yes
Yes X2
Steel
3.93 in (100 mm)
White
ABS
Toggle Clamps
Aluminum
Yes
Yes X2
Steel
4.19 in (106 mm)
White
ABS
Toggle Clamps
Aluminum
Yes
Yes X2
Steel
4.42 in (112 mm)
White
IW5 IW6 IW8
12.43 in (316 mm)
9.54 in (242 mm)
11.13 in (282 mm)
8.24 in (242 mm)
3.88 in (99 mm)
14.47 in (368 mm)
11.02 in (280 mm)
13.17 in (335 mm)
11.02 in (280 mm)
4.11 in (105 mm)
The following table provides corrective action for possible trouble
situations. If further assistance is required, please contact a
Crestron customer service representative.
Further Inquiries
If you cannot locate specific information or have questions
after reviewing this guide, please take advantage of
Crestron's award winning customer service team by calling
Crestron at 1-888-CRESTRON [1-888-273-7876]. For
assistance in your region, please refer to the Crestron Web
site (www.crestron.com) for a listing of Crestron worldwide
offices.
You can also log onto the online help section of the Crestron
Web site (www.crestron.com/onlinehelp) to ask questions
about Crestron products. First-time users will need to establish
a user account to fully benefit from all available features.
Future Updates
Check the Crestron website periodically for manual update
availability and its relevance. Updates are identified as an
“Addendum” in the Download column.
TROUBLE
POSSIBLE CAUSE(S)
CORRECTIVE ACTION
No sound or
intermittent
sound from
speakers.
Cable connection
error.
Verify cable connections
between amplifier and
speakers.
Amplifier not receiving
input signal or amplifier
malfunction.
Verify amplifer is functioning
correctly, that it is receiving
an input signal and that
correct input source is
selected.
Faulty device in system. Verify all devices in system
are functioning properly.
Constant
noise such
as buzz,
hum, or hiss. System grounding fault. Verify system grounding.
Poor low
frequency
output.
Incorrect polarity
connection at speaker.
Verify speaker connection
polarity (i.e. + on speaker to
+ on amplifier).
4Problem Solving
Troubleshooting
41° to 104° F (5° to 40° C)
10 to 90% RH (non-condensing, indoor use only)
3.4 lbs (1.5 kg) 4.1 lbs (1.8 kg) 5.0 lbs (2.3 kg)
2Adjustments
Opening
Width
Installed
Depth
Frequency Settings
Aiming the Tweeter
HF
- 0 +
LF
Front, Side, and Bottom Views (Typical)
Adjusting the high and low frequency range switch
settings (refer to illustration below) is largely a
matter of personal preference.
The settings produce the following results.
–: Reduces the selected range loudness
0: Loudness remains neutral
+: Increases the selected range loudness
The tweeter can be aimed toward the primary
listening position by gently pressing on the plastic
ring around the tweeter dome. (Refer to the
illustration above.)
Press
- 0 +
Overall
Height
Opening
Height
Overall
Width

Produktspezifikationen

Marke: Crestron
Kategorie: Lautsprecher
Modell: Excite IW5

Brauchst du Hilfe?

Wenn Sie Hilfe mit Crestron Excite IW5 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten


Bedienungsanleitung Lautsprecher Crestron

Crestron

Crestron ULTIMATE IC3-SA-WOOFER Bedienungsanleitung

29 August 2024
Crestron

Crestron ULTIMATE IC3-AW-SA-BOX-WOOFER Bedienungsanleitung

29 August 2024
Crestron

Crestron ULTIMATE IC3-AW-SA-TWEETER Bedienungsanleitung

29 August 2024
Crestron

Crestron ULTIMATE IWS82-AW-W-T-EACH Bedienungsanleitung

26 August 2024
Crestron

Crestron SAROS IC8T-W-T-EACH Bedienungsanleitung

25 August 2024
Crestron

Crestron ULTIMATE ICS8-AW-W-T-EACH Bedienungsanleitung

25 August 2024
Crestron

Crestron ULTIMATE IC8-DT-AW-W-T-EACH Bedienungsanleitung

25 August 2024
Crestron

Crestron SAROS ICT5T-22 Bedienungsanleitung

25 August 2024
Crestron

Crestron ULTIMATE IC6-AW-W-T-EACH Bedienungsanleitung

25 August 2024
Crestron

Crestron ULTIMATE IC8-AW-W-T-EACH Bedienungsanleitung

25 August 2024

Bedienungsanleitung Lautsprecher

Neueste Bedienungsanleitung fĂĽr -Kategorien-

Sonance

Sonance Visual Performance VP65 SST Bedienungsanleitung

16 Oktober 2024
Bowers And Wilkins

Bowers And Wilkins CWM664 Bedienungsanleitung

16 Oktober 2024
Focal

Focal Chorus 826 V Bedienungsanleitung

16 Oktober 2024
KEF

KEF Ci200ER Bedienungsanleitung

16 Oktober 2024
Steren

Steren SPK-1100BL Bedienungsanleitung

16 Oktober 2024
Aiwa

Aiwa SP-A100 Bedienungsanleitung

16 Oktober 2024
Trust

Trust GXT 628 Bedienungsanleitung

15 Oktober 2024
Pyle

Pyle PBMSPG6 Bedienungsanleitung

15 Oktober 2024
Marshall

Marshall Tufton Bedienungsanleitung

15 Oktober 2024
Sunstech

Sunstech SPUBT780 Bedienungsanleitung

15 Oktober 2024
