Seite 1/2

DO GUIDE

4. Using the four included 6-32 x 1/4" Phillips head screws,

attach the device to the standoffs.

Inserting the Power Pack

into the Power Pack Holder

To insert the power pack into the power pack holder, do the

following:

1. Slide the power pack into the power pack holder.

2. Using the included 6-32 x 1/2" Phillips pan head screw,

thread the screw through either of the two provided

screw holes to hold the power pack in place.

3. Bundle the excess cable of the power pack into a loop,

and then fasten the bundled cable to the power pack

holder by doing the following:

a. Insert one of the included tie wraps through one of

the tie wrap holes in the power pack holder.

b. Wrap the tie wrap around the bundled cable.

DM-RMC-200-S/DM-RMC-200-S2

DigitalMedia 8G™ Fiber Receiver and Room Controller

DO Install the Device

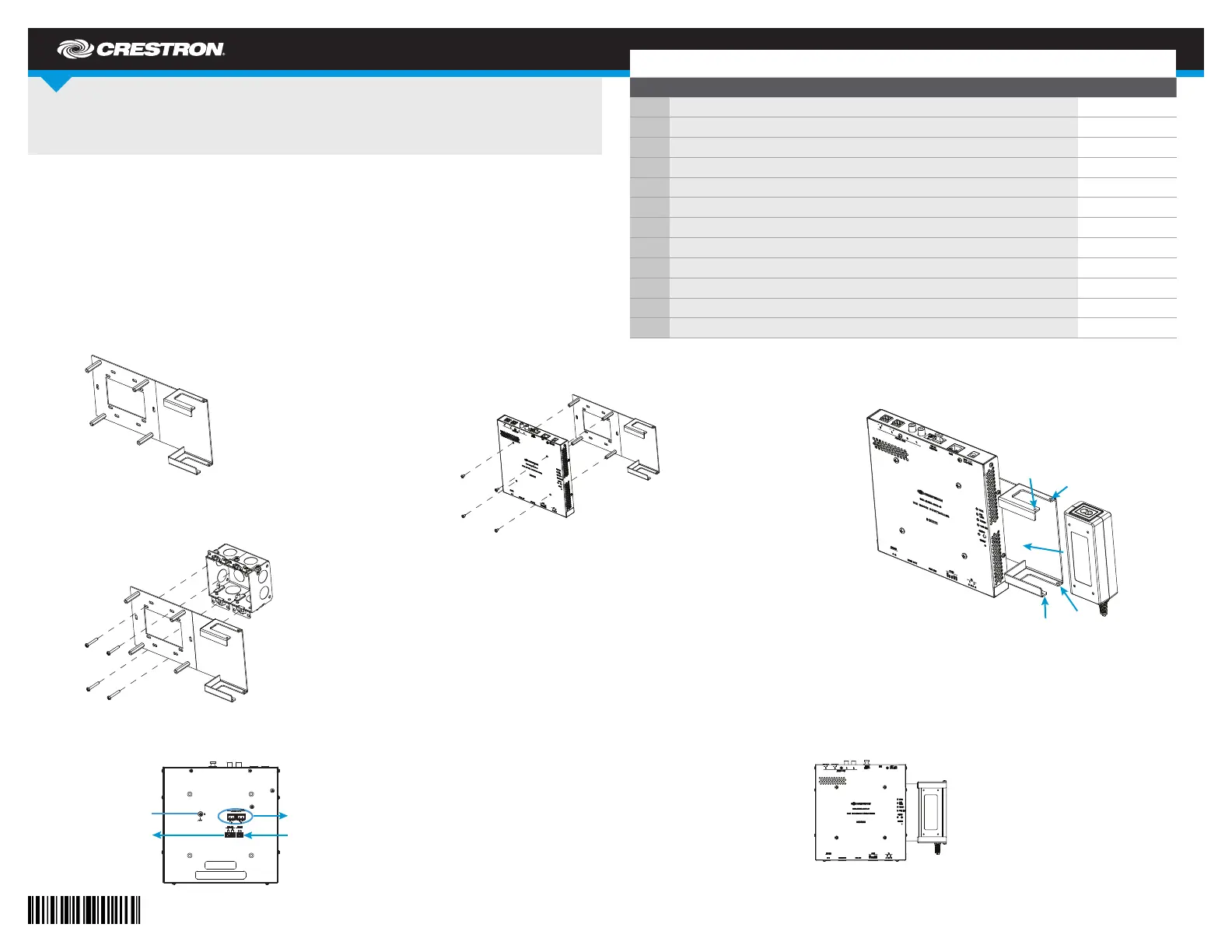

The Crestron® DM-RMC-200-S and DM-RMC-200-S2 mount

onto a 2-gang electrical box using the included support

bracket. The support bracket provides a holder for the included

power pack.

Mounting the Device onto an Electrical Box

To mount the device onto an electrical box, do the following:

1. Attach the four included 6-32 x 1-1/4" standoffs to the

studs of the included support bracket.

2. Using the four included 6-32 x 3/4" combo truss head

screws, attach the included support bracket to the

electrical box.

3. Ground the device and then connect the proper cables to

the bottom of the unit.

DO Check the Box

QTY PRODUCT COLOR PART NUM.

1 Bracket, Support 2047591

2 Connector, 2-Pin 2003574

4 Connector, 2-Pin 2003582

2 Connector, 4-Pin 2003576

1 Connector, 5-Pin 2003577

1 Power Cord, 5' 10" (1.78 m) 2042043

1 Power Pack, 24 Vdc 2.5 A, 100-240 Vac 2045873

1 Screw, 6-32 x 1/2", Pan Head, Phillips Black 2007238

4 Screw, 6-32 x 1/4", Pan Head, Phillips Black 2007215

4 Screw, 6-32 x 3/4", Truss Head, Combo 2009211

4 Standoff, 06-32 x 1-1/4", 1/4" OD, Hex 2007056

2 Tie Wrap, Cable Tie, 15-1/2" x 1" Black 2013608

c. Repeat steps 3a and 3b if necessary using the other

included tie wrap and the remaining tie wrap hole in

the power pack holder.

Installation of the power pack in the holder appears as shown

below.

Tie wrap

hole

Screw

hole*

Tie wrap

hole

Screw

hole*

*Use either screw hole for the included 6-32 x 1/2" Phillips

pan head screw.

Ground

RELAY:

To relay

controllable

devices

AUDIO OUT:

Amplied stereo

audio output

DIG IN:

Software

programmable

digital input

DO GUIDE

DO Complete the Connections

Make additional connections as appropriate for the application.

DM-RMC-200-S and DM-RMC-200-S2

Front Panel Connections

DM-RMC-200-S Rear Panel Connections

DM-RMC-200-S2 Rear Panel Connections

DO Set the IP Address

The conguration of the receiver within the DigitalMedia 8G™

system determines how the IP address of the receiver is set:

• If the receiver connects to a DigitalMedia™ switcher, the

receiver is congured by the switcher automatically.

• If the receiver connects to a DigitalMedia 8G ber

transmitter, the receiver uses its own conguration

settings. By default, DHCP (Dynamic Host Conguration

Protocol) is enabled. If it is desired, assign the default IP

address to the receiver by holding down the SETUP button

while the unit boots up. The default IP address overwrites

the current setting. The default IP address of the DM-

RMC-200-S and DM-RMC-200-S2 is 192.168.1.248.

To manually set a different IP address, use Crestron

Toolbox™ application.

DOC. 7810B (2044421) 09.16

Specications subject to change without notice.

DO Learn More

Visit the website for additional information and the

latest rmware updates. To learn more about this

product, use a QR reader application on your mobile

device to scan the QR images.

Crestron Electronics

15 Volvo Drive, Rockleigh, NJ 07647

888.CRESTRON | www.crestron.com

As of the date of manufacture, the products have been tested and found to comply with specications for CE marking.

This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.

Ce produit est homologué selon les normes et les exigences UL applicables par Underwriters Laboratories Inc.

Federal Communications Commission (FCC) Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference

that may cause undesired operation.

CAUTION: Changes or modications not expressly approved by the manufacturer responsible for compliance could void the

user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation

of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Industry Canada (IC) Compliance Statement

CAN ICES-3(A)/NMB-3(A)

The products are class 1 laser products. They comply with safety regulations of IEC-60825-1, FDA 21 CFR

1040 11 and FDA 21 CFR 1040 10.

WARNING: Visible and invisible laser radiation when open. Avoid direct exposure to beam.

NOTE: Plug the included dust cap into the optical transceiver when the ber optic cable is unplugged.

WARNING: These are Class A products. In a domestic environment these products may cause radio interference in which case the

user may be required to take adequate measures.
