Assembly Instructions
QUATTRO TABLES
Parts List
Qty. Part No. Description
4 010-3511 Corner Ties
4 017-0686 Bottom Legs
4 017-1026 Top Legs
4 015-0084 3/8-16 Glides
2 010-3520 Bin Mounting Bracket
(For Computer Tables Only)
Hardware List
Qty. Part No. Description
8 030-0396 3/8-16 x 1/2" Set screw
2 030-0357 #10-32 Flanged Hex Serrated Nut
(For Computer Tables Only)
2 030-0402 #10-32 x 5/8" Black Combo Head Screw
(For Computers Tables Only)
4 030-0852 5/16-18 x 1-1/4" Hex Flange Cap Screw
Tools Required
Philips Screwdriver
Allen Wrench
Adjustable Wrench

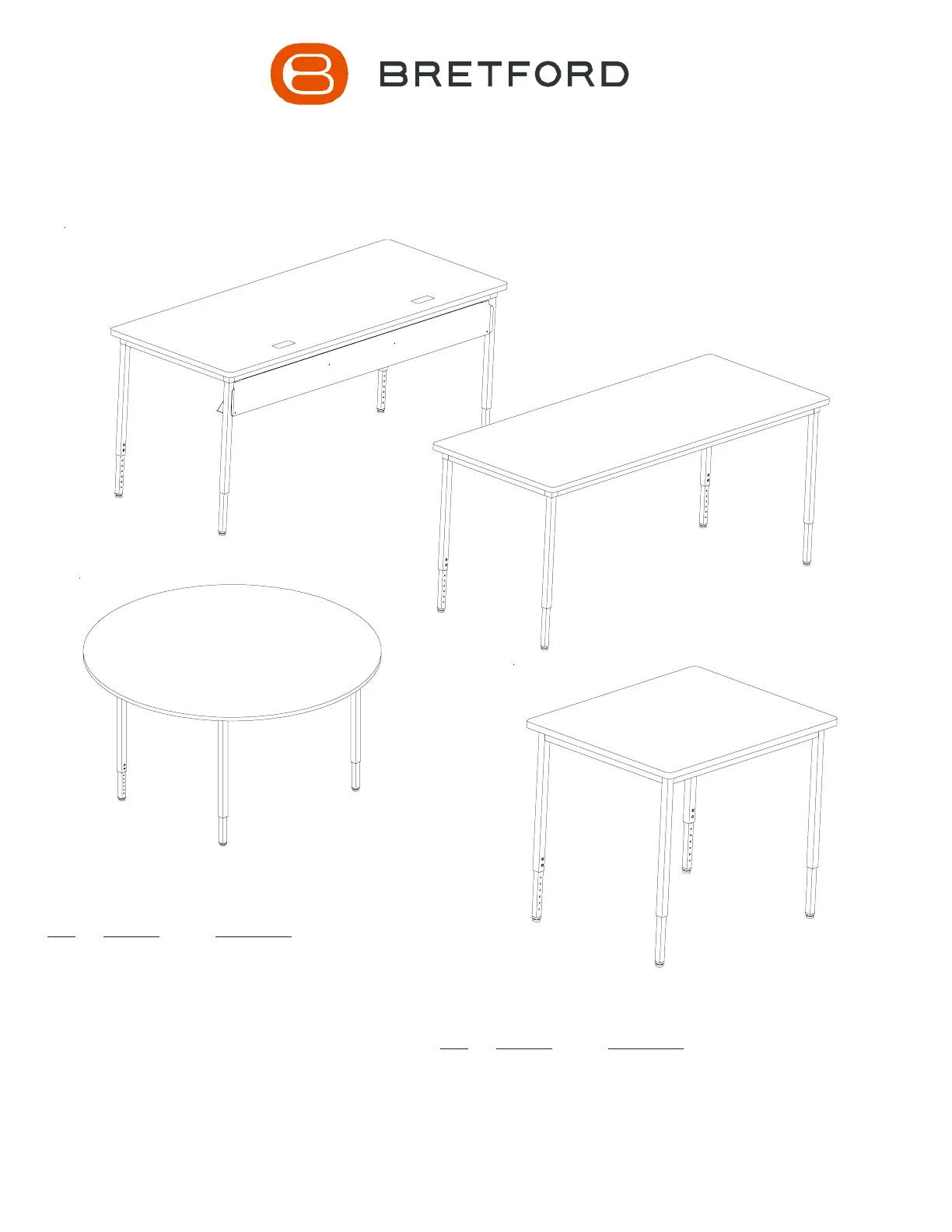

Computer Table
Work Table
Round Work Table
Square Work Table
Lay wood top on a carpeted surface with holes facing upward. Insert
the legs into each corner with holes facing in as shown.
Step 1
SAFETY WARNING
Note: TWO PERSON
ASSEMBLY REQUIRED
Attach legs with 5/16-18 x 1-1/4" Hex Flange Cap screws
(030-0852) and corner ties (010-3511). Tighten all screws.
Step 2
Corner tie
010-3511 5/16-18 x 1-1/4"
030-0852
All Leg Holes Face Inward
Screw glides (015-0084) into bottom legs (017-0686).
Glides should be fully installed into legs so that the
entire stem is inside of leg.
Step 3
Position holes in legs so that they face each other. Insert
bottom legs into top legs. Set desired height and insert 3/8-
16 x 1/2" (030-0396) Set screws into legs and tighten with
Allen wrench. Stand the unit upright.
Step 4
3/8-16 x 1/2"
Set screw
030-0396
Slide cord bin in between table legs. Slide the cord bin up on the
legs until it hooks onto apron's lip underneath working surface.
Step 5
(For tables with cord bin only)
Glide
015-0084
Cord bin
Bottom leg
017-0686
Cord bin
hook
Apron
hook
