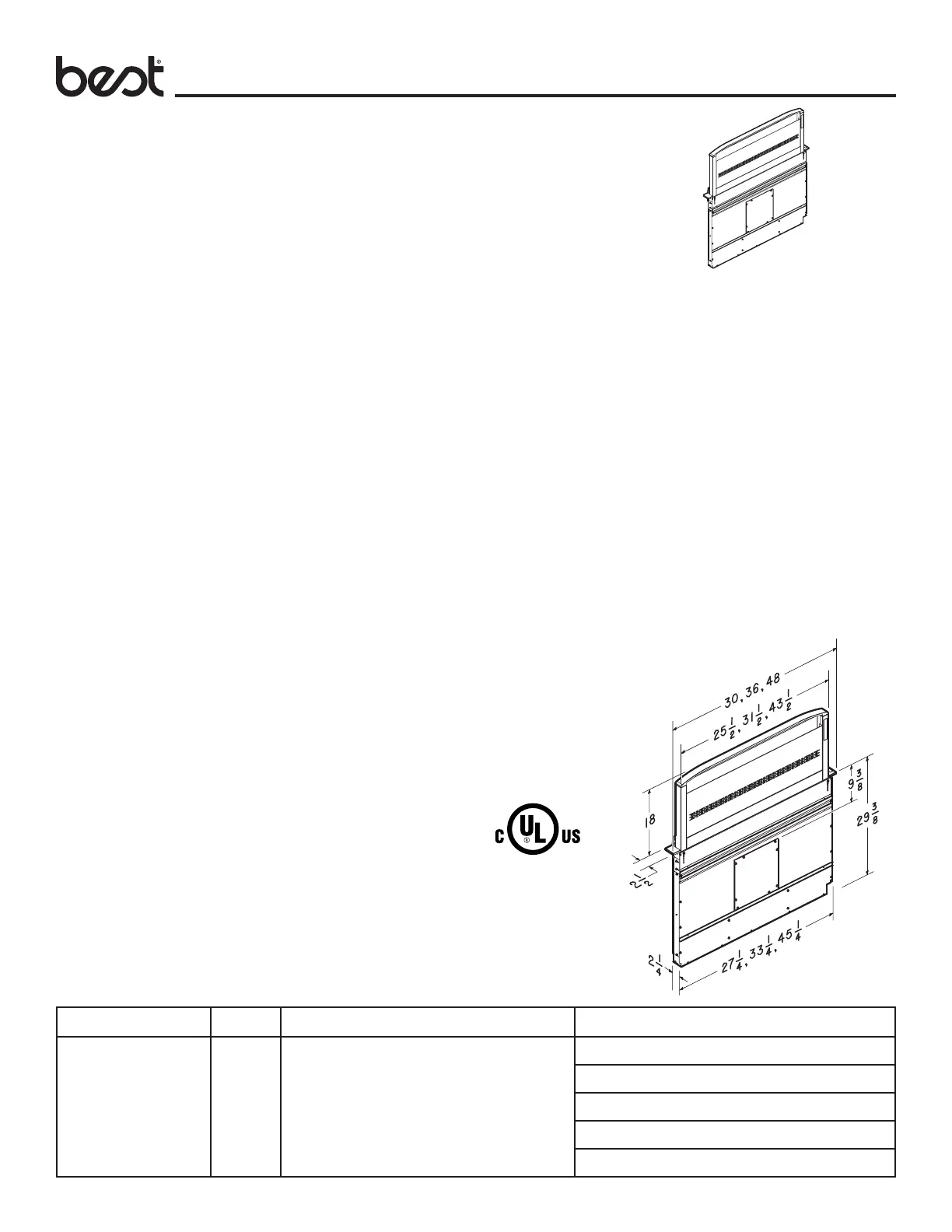

Models D49M30SB • D49M36SB • D49M48SB

DOWNDRAFT

VENTILATOR

WARNING

READ AND SAVE THESE INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR IN-

JURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer.

If you have questions, contact the manufacturer at the address

or telephone number in the warranty.

2. Before servicing or cleaning unit, switch power off at service

panel and lock the service disconnecting means to prevent

power from being switched on accidentally. When the service

disconnecting means cannot be locked, securely fasten a

prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a

qualified person(s) in accordance with all applicable codes

and standards, including fire-rated construction codes and

standards.

4. Sufficient air is needed for proper combustion and exhausting

of gases through the flue (chimney) of fuel burning equip-

ment to prevent backdrafting. Follow the heating equipment

manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA),

and the American Society for Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE), and the local code authori-

ties.

5. When cutting or drilling into wall or ceiling, do not damage

electrical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. To reduce the risk of fire, use only metal ductwork.

8. Do not install this product with the activating switch directly

behind a burner or element. Minimum distance between the

switch and the edge of the burner should be 4 inches.

9. Loose-fitting or hanging clothing should never be worn when

operating this appliance. They may be ignited by burners/

elements on cooktop.

10. Children should not be left alone or unattended in the area

where this appliance is in use.

11. This unit must be grounded.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings.

Boilovers cause smoking and greasy spillovers that may

ignite. Heat oils slowly on low or medium settings.

b) Always turn hood ON when cooking at high heat or when

cooking flaming foods.

c) Clean ventilating fans frequently. Grease should not be

allowed to accumulate on fan or filter.

d) Use proper pan size. Always use cookware appropriate

for the size of the surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE

EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE

FOLLOWINGa:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or

metal tray, then turn off the burner. BE CAREFUL TO

PREVENT BURNS. If the flames do not go out immedi-

ately, EVACUATE AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN - You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels - a

violent steam explosion will result.

4. Use an extinguisher ONLY if:

A. You know you have a Class ABC extinguisher, and you

already know how to operate it.

B. The fire is small and contained in the area where it

started.

C. The fire department is being called.

You can fight the fire with your back to an exit.D.

a Based on “Kitchen Firesafety Tips” published by NFPA.

CAUTION

1. For indoor use only.

2. For general ventilating use only. Do not use to exhaust hazard-

ous or explosive materials and vapors.

3. To avoid motor bearing damage and noisy and/or unbalanced

impellers, keep drywall spray, construction dust, etc. off power

unit.

4. Clean filters and grease-laden surfaces frequently.

5. Do not repair or replace any part of this appliance unless

specifically recommended in this manual. All other servicing

should be done by a qualified technician.

6. Please read specification label on product for further informa-

tion and requirements.

7. To reduce the risk of fire and electric shock, install this downdraft

only with blower models shown below. Other blower models

cannot be substituted. (Blowers sold separately).

Flex Blower Model PF6

Exterior Blower Models EB6, EB9, EB12, or EB15

In-Line Blower Models ILB3, ILB6, ILB9 or ILB11

For use with these blowers

(purchase blowers separately):

Model PF6 - Flex Blower - Interior

Models EB6, EB9, EB12, or EB15 - Exterior

Models ILB3, ILB6, ILB9 or ILB11 - In-Line

INSTALLER:

Save this manual for Electrical

Inspector and Homeowner to use.

Page 2

Models D49M30SB • D49M36SB • D49M48SB

PLANNING

ELECTRICAL SPECIFICATIONS

Model PF6 - Internal Flex:

120 VAC • 60 Hz • 3.0 A

Models EB6, EB9, EB12, or EB15 - Exterior

Models ILB3, ILB6, ILB9 or ILB11 - In-Line

120 VAC • 60 Hz • 6.0 A (max.)

TAKE MEASUREMENTS

Due to its flexible design, this downdraft system can be used to

exhaust airborne contaminants when cooking with a variety of gas

or electric cooking appliances - including cooktops, rangetops,

slide-in ranges and free-standing ranges.

It can be mounted in island, peninsula, or conventional wall

locations. The blower (purchase separately) and electrical panel

can be mounted to the downdraft unit, inside the cabinet, or in a

convenient remote location.

This unit can be easily installed following these basic steps:

• Cut out the countertop opening.

• Mount the unit in the cabinet.

• Install the blower and electrical panel.

• Connect the ductwork and electrical.

• Install the trim.

• Install the cooking appliance.

Note: the high level of air flow of this appliance may effect the

gas flame on some types of gas cooktops. This is NORMAL and

will cause no harm, but can be corrected by lowering the speed

of the blower.

A cooktop sealing kit is recommended for use with all gas

cooktops. The kit creates a seal between the cooktop and

the lower cabinet. Includes trim bracket and trim seal. See

"OPTIONAL ACCESSORIES".

PLAN THE DUCTWORK

1. Refer to the cooktop installation instructions for dimensions

of cooktop, countertop cut-out, and cabinet requirements.

However, it is recommended that oversized cabinets be used

for easier installation. Custom island designs need to account

for deeper cabinets - especially when installed with a range

in front of the downdraft or when mounting the blower behind

the downdraft. You must also plan for an access door.

2. Cooktop depth can vary greatly from one to another. This may

cause the fit of these two appliances to be rather tight.

Pay special attention to the areas of potential interference high-

lighted above. A countertop with (A) a raised lip and/or (B) a

backsplash may not allow enough flat countertop for a proper

installation. Note that 2-3/4" of flat countertop is required behind

cooktop and that 2-1/2" is necessary between the back edge of

the cooktop and the inside of cabinet back.

D E

HOUSING

1. The downdraft blower system is designed for use with 8"

round ductwork using a flex blower or 10" Round ductwork

using a remote blower. (Purchase blowers separately.) Six

(6) different discharge connections are available:

A = 8" Round, Left Discharge out of Flex Blower

B = 8" Round, Right Discharge out of Flex Blower

C = 8" Round, Down Discharge out of Flex Blower

(Electrical Panel to be mounted remotely)

D = 1-7/8" x 19", Left Discharge out of Housing to

Remote Blower or Flex Blower in remote location.

Use 1-7/8" x 19" to 8" round transition, 1-7/8" x 19" to

10" round transition, or 1-7/8" x 19" ductwork

as appropriate.

E = 1-7/8" x 19", Right Discharge out of Housing to

Remote Blower or Flex Blower in remote location.

Use 1-7/8" x 19" to 8" round transition, 1-7/8" x 19" to

10" round transition, or 1-7/8" x 19" ductwork

as appropriate.

F = 1-7/8" x 19", Rear Discharge out of Housing to

Remote Blower or Flex Blower in remote location.

Use 1-7/8" x 19" to 8" round transition, 1-7/8" x 19" to

10" round transition, or 1-7/8" x 19" ductwork

as appropriate.

2. For best performance: Choose the ducting option which allows

the shortest length of ductwork and a minimum number of

elbows and transitions. Check location of floor joists, wall

studs, electrical wiring or plumbing for possible interference.

CONTENTS

These parts are included with your downdraft housing:

1 - Parts Bag containing:

2 - 2-in. Support Legs

2 - 4-in. Support Legs

2 - Screws, 1/4-20 x .50 Hex Head

2 - Screws, #8-18 x .375 Phillips

8 - Wood Screws, #10 x .50 Phillips Round Head

1 - Trim Door Kit

1 - Electrical Panel

2 - Support Brackets

1 - Countertop Cut-out Template

2-3/4"

2-1/2"

FLEX

BLOWER *

* Remote blowers use 8" or 10" round remote discharge plate

instead of flex blower.

ELECTRICAL

PANEL

Page 3

Models D49M30SB • D49M36SB • D49M48SB

PLAN THE WIRING

1. This downdraft blower using the Flex Blower (purchase

separately) draws 3.0 Amps and requires a 120 VAC, 60 Hz

circuit. If using a remote blower (purchase separately), the

system draws 6.0 Amps (max.) and requires a 120 VAC, 60

Hz circuit.

2. The unit has a 30 in. long power cord with a 3-pronged plug.

Plan to provide a grounded outlet in a location which will allow

the unit’s power cord to reach.

3. Install electrical box according to local codes.

PREPARE THE DOWNDRAFT

Installations ducting through front panel opening only:

1. Place the downdraft on its back on a table or flat work surface.

2. Remove the to remove the HEX NUTS FRONT PANEL COVER.

FRONT PANEL COVER

(8)

#10-24 HEX

NUTS

FLEX

BLOWER

FRONT

PANEL

If blower discharge is

down, electrical panel

must be relocated.

See Step 6.

PLAN CABINET CUTOUTS

CAUTION: BEFORE CUTTING HOLE IN CABINET

FOR DUCTWORK, check for interference with floor

joists, wall studs, electrical wiring, or plumbing.

Use the dimensions in the above illustration to help plan how and

where to provide duct access through your cabinet. Generally, 1-7/8"

x 19" rectangular duct will be used through left, right, and back of

cabinet - while 8" round duct will be used through cabinet floor.

For left, right, or rear exhaust:

Allow at least 18" for transition and elbow or blower.

For left / right exhaust:

A 30" deep cabinet is recommended to align properly with flex

blower. Flex blower can be mounted to rear cabinet wall or to a

platform / frame (not provided) on the base of the cabinet floor.

(See flex blower instructions).

Cabinet depths of 24" to 30" are required - depending on the

type of cooking appliance.

INSTALLATION

CENTER LINE

HOLE

FOR

1 ” X 19”

DUCT &

TRANSITIONS

INSIDE

CABINET BACK

INSIDE

CABINET FLOOR

1½”

21”

centered 4”

5 ”

2”

21”

4”

REAR CORNER OF

COOKTOP CUT-OUT

24¾”

Electrical panel

can be mounted

remotely.

(8)

#10-24 HEX

NUTS

Hole in Cabinet Floor

Dimension A Dimension B

Using Flex Blower (Model

PF6 & 8" round duct straight

down through cabinet floor.)

(1½" left of installation center line)

Using Exterior or In-Line

Blower & 900 Duct Elbow

(on installation center line)

5-5/8 inches

7-5/8 inches

(Model 432

- 8" round

elbow)

8-5/8 inches

(Model 418

- 10" round

elbow)

(Purchase Model PF6 Flex Blower separately.)

3. Determine whether FLEX BLOWER will discharge to the left,

right, or down.

Tighten the hex nuts to secure blower in place.

Installations using FLEX BLOWER only:

Produktspezifikationen

Marke:	Best
Kategorie:	Dunstabzugshaube
Modell:	D49M36SB

Brauchst du Hilfe?

Wenn Sie Hilfe mit Best D49M36SB benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Dunstabzugshaube Best

Best Ispira UCB3I36SBB Bedienungsanleitung

21 August 2024

Best CP57IQT602SB Bedienungsanleitung

21 August 2024

Best Ispira UCB3I30SBN Bedienungsanleitung

21 August 2024

Best Harmonia WC45E90SB Bedienungsanleitung

21 August 2024

Best CP34I429SB Bedienungsanleitung

21 August 2024

Best Ispira ICB3I36SBS Bedienungsanleitung

21 August 2024

Best Colonne WPP9IQT36SB Bedienungsanleitung

21 August 2024

Best U10230SBI Bedienungsanleitung

21 August 2024

Best CP57IQT369SB Bedienungsanleitung

21 August 2024

Best WTT32I336SB Bedienungsanleitung

21 August 2024

Bedienungsanleitung Dunstabzugshaube

Neueste Bedienungsanleitung für -Kategorien-

Pelgrim ISW990 Bedienungsanleitung

16 Oktober 2024

Amana UVL6048JSS Bedienungsanleitung

16 Oktober 2024

Maytag UVL6048JSS Bedienungsanleitung

16 Oktober 2024

Freggia CHS46GTW Bedienungsanleitung

16 Oktober 2024

Freggia CHS46GW Bedienungsanleitung

16 Oktober 2024

Freggia CHS46GB Bedienungsanleitung

16 Oktober 2024

Freggia CHS46B Bedienungsanleitung

16 Oktober 2024

Freggia CHS45X Bedienungsanleitung

16 Oktober 2024

Freggia CHS45W Bedienungsanleitung

16 Oktober 2024

Freggia CHS45B Bedienungsanleitung

16 Oktober 2024
