Seite 1/241

IMPORTANT SAFETY INSTRUCTIONS

When using this machine, basic safety precautions should always be taken, including the following:

Read all instructions before using.

DANGER - To reduce the risk of electric shock:

1. The machine should never be left unattended while plugged in. Always unplug the machine from the electrical

outlet immediately after using and before cleaning.

WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Do not allow this machine to be used as a toy. Close attention is necessary when the machine is used by or

near children.

2. Use this machine only for its intended use as described in this manual. Use only accessories recommended by

the manufacturer as contained in this manual.

3. Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped

or damaged, or dropped into water. Return the machine to the nearest authorized retailer or service center for

examination, repair, electrical or mechanical adjustment.

4. Never operate the machine with any air openings blocked. Keep ventilation openings of the machine and foot

control free from the accumulation of lint, dust, and loose cloth.

5. Never drop or insert any object into any opening.

6. Do not use outdoors.

7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

8. To disconnect, turn the main switch to the symbol “ ” position which represents off, then remove plug from

outlet.

9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

10. Keep fingers away from all moving parts. Special care is required around the machine needle.

11. Always use the proper needle plate. The wrong plate can cause the needle to break.

12. Do not use bent needles.

13. Do not pull or push fabric while stitching. It may deflect the needle causing it to break.

14. Switch the machine to the symbol “ ” position when making any adjustments in the needle area, such as

threading needle, changing needle, threading bobbin, or changing presser foot, and the like.

15. Always unplug the machine from the electrical outlet when removing covers, lubricating, or when making any

other user servicing adjustments mentioned in the instruction manual.

16. This sewing machine is not intended for use by young children or infirm persons without supervision.

17. Young children should be supervised to ensure that they do not play with this machine.

18. If the LED light unit (light-emitting diode) is damaged, it must be replaced by authorized dealer.

19. Hold the foot controller plug when rewinding into cord reel. Do not allow the plug to whip when rewinding.

SAVE THESE INSTRUCTIONS

This machine is intended for household use.

FOR USERS IN THE UK, EIRE, MALTA

AND CYPRUS ONLY

If this machine is fitted with a three-pin non-rewireable BS plug then please read the following.

IMPORTANT

If the available socket outlet is not suitable for the plug supplied with this equipment, it should be cut off and an

appropriate three-pin plug fitted. With alternative plugs an approved fuse must be fitted in the plug.

NOTE

The plug served from the main lead must be destroyed as a plug with bared flexible cords is hazardous if engaged in

a live socket outlet. In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carrying

the mark, rating as marked on plug.

Always replace the fuse cover, never use plugs with the fuse cover omitted.

WARNING

DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER ‘E’, BY

THE EARTH SYMBOL OR COLOURED GREEN OR GREEN AND YELLOW.

The wires in this main lead are coloured in accordance with the following code:

As the colours of the wiring in the main lead of this appliance may not correspond with the coloured markings

identifying the terminals in your plug, proceed as follows.

The wire which is coloured blue must be connected to the terminal which is marked with the letter ‘N’ or coloured

black or blue.

The wire which is coloured brown must be connected to the terminal which is marked with the letter ‘L’ or coloured

red or brown.

Blue Neutral

Brown Live

iii

Federal Communications Commission (FCC)

Declaration of Conformity (For USA Only)

complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may

not cause harmful interference, and (2) this device must accept any interference received, including interference

that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the retailer or an experienced radio/TV technician for help.

• The enclosed interface cable should be used in order to ensure compliance with the limits for a Class

B digital device.

• Changes or modifications not expressly approved by Tacony Corporation could void the user's

authority to operate the equipment.

Responsible Party: Tacony Corporation

1760 Gilsinn Lane,

Fenton, Missouri 63026

declares that the product

Product Name:

Model Number:

Baby Lock Sewing Machine

BLG

CONGRATULATIONS ON CHOOSING OUR

MACHINE

Your machine is the most advanced computerized household embroidery and sewing machine. To fully enjoy all

the features incorporated, we suggest that you study the manual.

PLEASE READ BEFORE USING THIS MACHINE

For safe operation

1. Be sure to keep your eye on the needle while sewing. Do not touch the handwheel, thread take-up, needle, or

other moving parts.

2. Remember to turn off the power switch and unplug the cord when:

• Operation is completed

• Replacing or removing the needle or any other parts

• A power failure occurs during use

• Maintaining the machine

• Leaving the machine unattended.

3. Do not store anything on the foot controller.

4. Plug the machine directly into the wall. Do not use extension cords.

For a longer service life

1. When storing this machine, avoid direct sunlight and high humidity locations. Do not use or store the machine

near a space heater, iron, halogen lamp, or other hot objects.

2. Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders can damage

the case and machine, and should never be used.

3. Do not drop or hit the machine.

4. Always consult the operation manual when replacing or installing any assemblies, the presser feet, needle, or

other parts to assure correct installation.

For repair or adjustment

In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table in the back of the

operation manual to inspect and adjust the machine yourself. If the problem persists, please consult your local

authorized Baby Lock retailer.

For additional product information and updates, visit our web site at www.babylock.com

The contents of this manual and specifications of this product are subject to change without notice.

WHAT YOU CAN DO WITH THIS MACHINE

Check operations and view advice on the large LCD (liquid crystal display).

SPECIAL FEATURES

Prepare the bobbin thread with one touch.

The automatic thread tension makes trial sewing unnecessary.

Automatic threading makes threading quick and easy.

Utility Stitches Character/Decorative

Stitches

Chapter

To learn the operation of the principal

parts and the screens

Pre-programmed with more than

100 frequently used stitches

To learn how to prepare for sewing and

basic sewing operations

The variety of stitches widen your creativity

Getting Ready Sewing Basics

Embroidery

Chapter

Maximum 30 cm x 18 cm (approx. 12 x 7

inches) for large embroidery designs

Embroidery Edit

Chapter

Designs can be combined, rotated or enlarged

Appendix

Chapter

Caring for your machine and dealing with

errors and malfunctions

!"#$%& !"#$%'&

!"#$%(& !"#$%&&

!"#$%)*+ !"#$%)++

!"#$%*,)

vii

HOW TO USE THIS MANUAL

Chapter 1 and Chapter 2 explain your sewing machine’s basic operation procedures for someone who is

using the sewing machine for the first time. If you want to sew utility stitches or character/ decorative

stitches, read Chapter 1 and Chapter 2, then go on to Chapter 3 (Utility Stitches) or Chapter 4 (Character/

Decorative Stitches).

When you are ready to begin using the embroidery function after reading Chapter 1 and Chapter 2,

proceed to Chapter 5 (Embroidery). Once you understand the steps explained in Chapter 5, go on to

Chapter 6 (Embroidery Edit) for an explanation about the convenient embroidery edit functions.

In the screens that appear in the step-by-step directions the parts that are used for the operation are shown

in . Compare the screen in the directions with the actual screen, and carry out the operation.

If, while using the machine, you experience something you do not understand, or there is a function you

would like to know more about, refer to the index at the back of the operation manual in conjunction

with the table of contents to find the section of the manual you should refer to.

To sew utility stitches

To sew character or

decorative stitches

To do machine

embroidery

Chapter 1 Chapter 2

Chapter 3

Chapter 4

Chapter 1 Chapter 2 Chapter 5 Chapter 6

Contents

viii

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ..................i

WHAT YOU CAN DO WITH THIS MACHINE.....vi

HOW TO USE THIS MANUAL ............................vii

NAMES OF MACHINE PARTS AND THEIR

FUNCTIONS .........................................................1

Machine ................................................................................. 1

Needle and Presser Foot Section ............................................. 2

Embroidery Unit ..................................................................... 2

Operation Buttons................................................................... 3

Included Accessories .............................................................. 3

Options................................................................................... 6

Removing the LCD cover ........................................................ 7

Attaching the LCD cover......................................................... 7

Chapter 1 Getting Ready 9

TURNING THE MACHINE ON/OFF ...................10

LCD SCREEN .......................................................11

Using the Machine Setting Mode Key .................................. 14

Using the Machine Operation Mode Key .............................. 19

Using the Pattern Explanation Key ........................................ 20

LOWER THREADING..........................................21

Winding the Bobbin.............................................................. 21

Setting the Bobbin................................................................. 24

Pulling Up the Bobbin Thread............................................... 25

UPPER THREADING ...........................................27

Threading Using the “Automatic Threading” Button.............. 27

Threading Manually.............................................................. 29

Using the Twin Needle Mode .............................................. 31

Using Threads that Unwind Quickly ..................................... 33

CHANGING THE PRESSER FOOT .......................34

Removing the Presser Foot .................................................... 34

Attaching the Presser Foot..................................................... 34

Attaching the Walking Foot................................................... 35

CHANGING THE NEEDLE...................................36

Chapter 2 Sewing Basics 39

SEWING ..............................................................40

Sewing a Stitch ..................................................................... 40

Sewing Reinforcement Stitches ............................................ 42

Sewing Curves ...................................................................... 42

Changing Sewing Direction ................................................. 42

Sewing Heavyweight Fabrics ............................................... 43

Sewing Lightweight Fabrics .................................................. 43

STITCH SETTINGS ..............................................44

Setting the Stitch Width......................................................... 44

Setting the Stitch Length ....................................................... 44

Setting the Thread Tension ................................................... 45

USEFUL FUNCTIONS..........................................46

Automatic Reinforcement Stitching ...................................... 46

Automatic Thread Cutting..................................................... 47

Locking the Screen ............................................................... 48

Chapter 3 Utility Stitches 49

SELECTING UTILITY STITCHES ..........................50

Selecting a Stitch................................................................... 50

Saving Your Stitch Settings ................................................... 52

Using the Sewing Type Selection Key .................................. 53

SEWING THE STITCHES .....................................55

Straight Stitches..................................................................... 55

Dart Seam............................................................................. 59

Gathering.............................................................................. 59

Flat Fell Seam ....................................................................... 60

Pintuck ................................................................................. 61

Zigzag Stitches ..................................................................... 62

Elastic Zigzag Stitches .......................................................... 64

Overcasting ......................................................................... 65

Quilting ................................................................................69

Blind Hem Stitches ...............................................................74

Appliqué ..............................................................................75

Shelltuck Stitches .................................................................76

Scallop Stitches ....................................................................77

Top Stitching .........................................................................77

Smocking Stitches ................................................................78

Fagoting ...............................................................................78

Tape or Elastic Attaching ......................................................79

Heirloom ..............................................................................80

One-step Buttonholes ...........................................................82

Four-step Buttonholes............................................................86

Bar Tacks .............................................................................90

Button Sewing ......................................................................92

Eyelet ...................................................................................94

Multi-directional Sewing (Straight Stitch and Zigzag Stitch) ..95

Zipper Insertion ....................................................................96

Chapter 4 Character/Decorative Stitches 99

SELECTING STITCH PATTERNS........................ 100

Selecting Decorative Stitch Patterns/7mm Decorative Stitch

Patterns/Satin Stitch Patterns/7mm Satin Stitch Patterns/Cross

Stitch/Utility Decorative Stitch Patterns ...............................102

Alphabet Characters ...........................................................102

SEWING STITCH PATTERNS ........................... 104

Sewing Attractive Finishes ..................................................104

Basic Sewing .......................................................................104

Making Adjustments ...........................................................105

EDITING STITCH PATTERNS ........................... 107

Changing the Size ...............................................................108

Changing the Length (for 7mm Satin Stitch Patterns Only) ..109

Creating a Vertical Mirror Image ........................................109

Creating a Horizontal Mirror Image ....................................109

Sewing a Pattern Continuously ...........................................109

Changing Thread Density

(for Satin Stitch Patterns Only) ............................................110

Checking the Image.............................................................110

COMBINING STITCH PATTERNS .................... 112

Before Combining ...............................................................112

Combining Various Stitch Patterns ......................................112

Combining Large and Small Stitch Patterns .........................114

Combining Horizontal Mirror Image Stitch Patterns ............114

Combining Stitch Patterns of Different Length .....................115

Making Step Stitch Patterns

(for 7mm Satin Stitch Patterns Only) ...................................116

USING THE MEMORY FUNCTION .................. 118

Stitch Data Precautions .......................................................118

Saving Stitch Patterns in the Machine’s Memory .................120

Saving Stitch Patterns to USB Media

(Commercially Available) ....................................................122

Saving Stitch Patterns in the Computer ................................123

Retrieving Stitch Patterns from the Machine’s Memory ........124

Recalling from USB Media ..................................................125

Recalling from the Computer...............................................125

Chapter 5 Embroidery 127

BEFORE EMBROIDERING................................. 128

Embroidery Step by Step .....................................................128

Attaching Embroidery Foot “W” .........................................129

Attaching the Embroidery Unit ...........................................130

SELECTING PATTERNS .................................... 132

Selecting Embroidery Patterns/Floral alphabet Patterns/

Baby Lock Exclusive Embroidery Designs............................134

Selecting Alphabet Character Patterns .................................135

Selecting Frame Patterns .....................................................136

Selecting Patterns from Embroidery Cards ..........................137

Selecting Patterns from USB media/Computer .....................137

VIEWING THE SEWING SCREEN ..................... 138

Contents

PREPARING THE FABRIC..................................140

Attaching Iron-on Stabilizers (backing) to the Fabric ...........140

Hooping the Fabric in the Embroidery Frame .....................141

Embroidering Small Fabrics or Fabric Edges .......................143

ATTACHING THE EMBROIDERY FRAME..........145

CONFIRMING THE PATTERN POSITION ........146

Checking the Pattern Position .............................................146

Previewing the Completed Pattern ......................................147

SEWING AN EMBROIDERY PATTERN .............148

Sewing Attractive Finishes ..................................................148

Sewing Embroidery Patterns ................................................149

Sewing Embroidery Patterns Which Use Appliqué ..............150

ADJUSTMENTS DURING THE EMBROIDERY

PROCESS ..........................................................152

If the Bobbin Runs Out of Thread .......................................152

If the Thread Breaks During Sewing.....................................153

Restarting from the Beginning .............................................153

Automatically Resuming Embroidery When the Power

Goes Off .............................................................................154

Manually Resuming Embroidery After Turning Off

the Power ...........................................................................155

MAKING EMBROIDERY ADJUSTMENTS .........156

Adjusting Thread Tension ...................................................156

Using the Automatic Thread Cutting Function

(END COLOR TRIM) ...........................................................157

Using the Thread Trimming Function

(JUMP STITCH TRIM) ..........................................................157

Adjusting the Embroidery Speed .........................................158

Changing the Thread Color Display.....................................159

Changing the Embroidery Frame Display ............................160

REVISING THE PATTERN .................................161

Changing the Pattern Position .............................................161

Aligning the Pattern and the Needle ....................................161

Changing the Size ...............................................................162

Rotating the Pattern .............................................................163

Creating a Horizontal Mirror Image ....................................164

Changing the Density (Alphabet Character

and Frame Patterns Only) ...................................................164

Changing the Colors of Alphabet Character Patterns ...........165

USING THE MEMORY FUNCTION ..................166

Embroidery Data Precautions ..............................................166

Saving Embroidery Patterns in the Machine’s Memory ........168

Saving Embroidery Patterns to USB Media

(Commercially Available) ....................................................170

Saving Embroidery Patterns in the Computer .......................171

Retrieving Patterns from the Machine’s Memory .................172

Recalling from USB Media ..................................................172

Recalling from the Computer...............................................173

EMBROIDERY APPLICATIONS .........................175

Using a Frame Pattern to Make an Appliqué (1) ..................175

Using a Frame Pattern to Make an Appliqué (2) ..................176

Chapter 6 Embroidery Edit 177

EXPLANATION OF FUNCTIONS .....................178

SELECTING PATTERNS TO EDIT ......................179

Selecting Embroidery Patterns/Floral Alphabet Patterns/

Frame Patterns/Baby Lock Exclusive Embroidery Designs ....180

Selecting Alphabet Character Patterns .................................180

EDITING PATTERNS .........................................183

Moving the Pattern .............................................................185

Rotating the Pattern ............................................................185

Changing the Size of the Pattern .........................................186

Deleting the Pattern ............................................................187

Changing the Configuration of Alphabet Character Patterns 187

Changing Alphabet Character Spacing ...............................187

Changing the Color of Each Alphabet Character

in a Pattern .........................................................................188

Changing the Thread Color ................................................189

Creating a Custom Thread Table .........................................190

Choosing a Color from the Custom Thread Table ................191

Designing Repeated Patterns ...............................................192

After Editing ........................................................................196

COMBINING PATTERNS .................................. 197

Editing Combined Patterns.................................................. 197

Sewing Combined Patterns ................................................. 199

USING THE MEMORY FUNCTION .................. 200

Chapter 7 Appendix 201

CARE AND MAINTENANCE ............................. 202

Cleaning the LCD Screen ................................................... 202

Cleaning the Machine Casing ............................................ 202

Cleaning the Race............................................................... 202

ADJUSTING THE SCREEN ................................ 204

Screen Visibility is Low....................................................... 204

Touch Panel is Malfunctioning ........................................... 204

TROUBLESHOOTING ...................................... 206

ERROR MESSAGES ........................................... 209

SPECIFICATIONS.............................................. 215

UPGRADING YOUR MACHINE’S SOFTWARE. 216

Upgrade Procedure Using USB Media................................ 216

Upgrade Procedure Using Computer .................................. 217

STITCH SETTING CHART ................................. 219

INDEX............................................................... 226

Contents

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

The names of the various parts of the sewing machine and their functions are described below. Before

using the sewing machine, carefully read these descriptions to learn the names of the machine parts.

Machine

■Front View

aTop cover

Open the top cover to thread the machine and wind the bobbin.

bThread cutter

Pass the threads through the thread cutter to cut them.

cThread take-up lever check window

Look through the window to check the upper thread passing

through the thread take-up lever.

dFlat bed attachment with accessory compartment

Store presser feet and bobbins in the accessory compartment

of the flat bed attachment. When sewing cylindrical pieces,

remove the flat bed attachment.

eOperation buttons (6 buttons) and sewing speed

controller

Use these buttons and the slide to operate the sewing machine.

fKnee lifter slot

Insert the knee lifter into the slot.

gKnee lifter

Use the knee lifter to raise and lower the presser foot.

hLCD (liquid crystal display)

Settings for the selected stitch and error messages appear in

the LCD.

iThread guide plate

Pass the thread around the thread guide plate when threading

upper thread.

jSpool cap

Use the spool cap to hold the spool in place.

kSpool pin

Place a spool of thread on the spool pin.

lBobbin winder

Use the bobbin winder when winding the bobbin.

mSupplemental spool pin

Use this spool pin to wind the bobbin thread, or to sew with the

twin needle.

nThread guide for bobbin winding

Pass the thread around this thread guide when winding the

bobbin thread.

oPretension disk

Pass the thread around the pretension disk when winding the

bobbin thread.

pLCD cover

Attach the cover when not using the machine.

■Right-side/Rear View

aHandle

Carry the sewing machine by its handle when transporting the

machine.

bHandwheel

Turn the handwheel toward you to raise and lower the needle.

The wheel should be turned toward the front of the machine.

cEmbroidery card slot

Insert the embroidery cards (sold separately) into the

embroidery card slot.

dUSB port connector for media

In order to send patterns from/to USB media, plug the USB

media directly into the USB port connector.

eUSB port connector for computer

In order to import/export patterns between a computer and the

machine, plug the USB cable into the USB port connector.

fTouch pen holder

Use the touch pen holder to hold the touch pen when not in use.

gMain power switch

Use the main power switch to turn the sewing machine ON and

OFF.

hJack connector

Insert the power cord into the connector jack.

iFeed dog position switch

Use the feed dog position switch to lower the feed dogs.

jPresser foot lever

Raise and lower the presser foot lever to raise and lower the

presser foot.

kAir vent

The air vent allows the air surrounding the motor to circulate. Do

not cover the air vent while the sewing machine is being used.

lFoot controller with retractable cord

Depress the foot controller to control the speed of the machine.

mFoot controller jack

Insert the foot controller plug into its jack on the machine.

def

nom

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

Needle and Presser Foot Section

aPresser foot holder

The presser foot is attached onto the presser foot holder.

bPresser foot

The presser foot applies pressure consistently on the fabric as

sewing takes place. Attach the appropriate presser foot for the

selected stitch.

cFeed dogs

The feed dogs feed the fabric in the sewing direction.

dBobbin cover

Open the bobbin cover to set the bobbin.

eNeedle clamp screw

Use the needle clamp screw to hold the needle in place.

fButtonhole lever

The buttonhole lever is used with the one-step buttonhole foot

to create buttonholes.

gNeedle bar thread guides

Pass the upper thread through the two needle bar thread

guides.

hNeedle plate

The needle plate is marked with guides to help sew straight

seams.

iPresser foot holder screw

Use the presser foot holder screw to hold the presser foot

holder in place.

Embroidery Unit

aCarriage

The carriage moves the embroidery frame automatically when

embroidering.

bRelease button (located under the embroidery unit)

Press the release button to remove the embroidery unit.

cFeed dog position switch

Use the feed dog position switch to raise and lower the feed

dogs while the embroidery unit is attached.

dEmbroidery unit connection

Insert the embroidery unit connection into the connection port

when attaching the embroidery unit.

eEmbroidery frame holder

Insert the embroidery frame into the embroidery frame holder to

hold the frame in place.

fFrame-securing lever

Press the frame-securing lever down to secure the embroidery

frame.

CAUTION

• After the embroidery frame is set in the frame

holder, be sure the frame-securing lever is

correctly lowered.

Note

• Be sure that the feed dog position switch on

the embroidery unit is located at right when

embroidering.

• You can also sew utility/decorative stitches

with the embroidery unit attached. Set the

feed dog position switch on the embroidery

unit to the appropriate setting.

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

Operation Buttons

a“Start/Stop” button

Press this button and the machine will sew a few stitches at a

slow speed and then begin sewing at the speed set by the

sewing speed controller. Press the button again to stop the

machine. Hold the button in to sew at the machine’s slowest

speed. The button changes color according to the machine’s

operation mode.

b“Reverse/Reinforcement Stitch” button

Use this button to sew reinforcement stitches at the beginning

and end of sewing. Press this button, and the machine sews 3

stitches in the same spot and stops automatically. For straight

and zigzag stitch patterns that take reverse stitches, the

machine will sew reverse stitches at low speed only while

holding down the “Reverse/Reinforcement Stitch“ button (the

stitches are sewn in the opposite direction).

c“Needle Position” button

Use this button when changing sewing direction or for detailed

sewing in small areas. Press this button to raise or lower the

needle position. Press the button twice to sew a single stitch.

d“Thread Cutter” button

Press this button after sewing to automatically trim the excess

thread.

e“Presser Foot Lifter” button

Press this button to lower the presser foot and apply pressure to

the fabric. Press this button again to raise the presser foot.

fSewing Speed controller

Use this controller to adjust the sewing speed. Move the slide to

the left to sew at slower speeds. Move the slide to the right to

sew at higher speeds. Beginners should sew at a slow speed.

g“Automatic Threading” button

Use this button to automatically thread the needle.

Included Accessories

Pull the top of the flat bed attachment to open the

accessory compartment.

aStorage space

bPresser foot storage space

cPresser foot storage space

Included Accessories 30-33 are contained in the

embroidery unit carrying case. To open the

embroidery unit carrying case, raise the lock and

unlock the latch out of the position. To re-hook the

latches and securely close the case, position the

latch on the case and lower the lock till it snaps.

aLatches

bLocks

Green: the machine is ready to sew or is sewing.

Red: the machine cannot sew.

CAUTION

• Do not press the thread cutter button after the

threads have already been cut. Otherwise, the

needle may break, the threads may become

tangled, or damage to the machine may occur.

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

! Included Accessories

1 234567

8 9 10 11 12 13

14 15 16 17 18 19

20 21 22 23 24 25 26 27

28 29 30 31 32 33 34 35

36 37 38 39 40 41 42 43

44 45 46 47 48 49 50

75/11 2 needles

90/14 2 needles

90/14 2 needles:

Ball point needle

(gold colored)

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

No. Part Name Part Code

1 Buttonhole foot “A” X57789-151

2 Embroidery foot “W” XC8156-451

3 Overcasting foot “G” XC3098-051

4 Monogramming foot “N” X53840-351

5 Zipper foot “I” X59370-051

6 Zigzag foot “J” (on machine) XC3021-051

7 Blind stitch foot “R” X56409-051

8 Button fitting foot “M” 130489-001

9 Walking foot X59816-104

10 Free-motion quilting foot XA6928-001

11 Straight stitch foot XD0826-051

12 Seam ripper X54243-001

13 Bobbin " 10 X52860-150

14 Needle set X58358-051

15 Twin needle X59296-151

16 Ball point needle set XD0705-051

17 Scissors 184783-051

18 Chalk pen 184944-001

19 Cleaning brush X59476-051

20 Eyelet punch 135793-001

21 Screwdriver (large) X55467-051

22 Screwdriver (small) X55468-051

23 Spool cap (small) 130013-154

24 Spool cap (medium) " 2 X55260-153

25 Spool cap (large) 130012-054

26 Vertical spool pin XC8619-051

27 Spool felt X57045-051

28 Disc-shaped screwdriver XC1074-051

29 Spool net XA5523-050

30 Embroidery frame set (small)

H 2 cm " W 6 cm

(H 1 inch " W 2-1/2 inches)

EF73: Frame

EF77: Embroidery sheet

Embroidery frame set

(medium) H 10 cm

W 10 cm

(H 4 inches

W 4 inches)

EF74: Frame

EF78: Embroidery sheet

32 Embroidery frame set (large)

H 18 cm " W 13 cm

(H 7 inches " W 5 inches)

EF75: Frame

EF79: Embroidery sheet

33 Embroidery frame set (extra

large) H 30 cm " W 18 cm

(H 12 inches " W 7 inches)

EF76: Frame

EF80: Embroidery sheet

34 Foot controller XC8028-051

35 Embroidery needle plate

cover

XA9939-051

36 Touch pen (stylus) XA9940-051

37 Knee lifter XA6941-051

38 USB cable XC8897-051

39 Alternate bobbin case (pink

screw)

XC8167-251

40 Straight stitch needle plate XC8362-051

41 Cord guide bobbin cover (with

single hole)

XC8449-051

42 Embroidery bobbin thread BBT-W

43 Stabilizer material X81176-001

44 Instruction and reference

guide

XD0781-051

45 Quick reference guide XD0792-051

46 Additional accessories guide XC8504-051

47 Embroidery unit carrying

case

XC8150-051

48 Hard case XC7750-053

49 LCD cover XC8468-051

50 Bobbin center pin XC8661-051

Memo

(For U.S.A. only)

Foot controller: Model S

This foot controller can be used with this

machine model BLG.

Memo

• Always use accessories recommended for

this machine.

• The screw of the presser foot holder is avail-

able through your authorized retailer (Part

code XA4813-051).

• Included accessories 34, 44, 45 and 46 can

be stored in the machine’s hard case.

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

Options

123

No. Part Name Part Code

1 Side cutter foot XC3923-001

2 Seam guide XC8524-051

3 Embroidery bobbin thread

(White) BBT-W

Embroidery bobbin thread

(Black) BBT-B

4 Table and free motion grip BLG-ET

5 Embroidery card

6 Spool stand BLG-TS

7 Embroidery frame set (extra

large) H 26 cm x W 16 cm

(10 – 1/4 inches (H) x

6 – 1/4 inches (W))

EF81: Frame

EF86: Embroidery sheet

Memo

• All specifications are correct at the time of

printing.

Please be aware that some specifications

may change without notice.

Note

• Embroidery cards purchased in foreign

countries may not work with your machine.

• Use Baby Lock embroidery cards with your

machine. Please see your retailer for avail-

ability of additional embroidery cards.

• Visit your Baby Lock retailer for a complete

listing of optional accessories available for

your machine, or visit the Baby Lock web

site at www. babylock. com.

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

Removing the LCD cover

!While pressing down on the latch at the top

of the LCD cover, pull the cover towards

you.

aLatch

"Remove the LCD cover.

Attaching the LCD cover

!Insert the tabs at the bottom of the LCD

cover into the grooves at the bottom of the

LCD.

aTabs

bGrooves

"While pressing the latch at the top of the

LCD cover, insert the tabs at the top of the

LCD cover into the grooves at the top of the

LCD.

aLatch

bTabs

NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

!"#$%&'!!

Getting Ready

TURNING THE MACHINE ON/OFF....................................................10

LCD SCREEN........................................................................................11

■Key Functions..................................................................................................................12

Using the Machine Setting Mode Key......................................................................14

■Adjusting Screen Brightness ............................................................................................17

■Choosing the Display Language.......................................................................................18

Using the Machine Operation Mode Key ................................................................19

Using the Pattern Explanation Key ..........................................................................20

LOWER THREADING ..........................................................................21

Winding the Bobbin ................................................................................................21

■Using the Supplemental Spool Pin...................................................................................21

■Using the Spool Pin .........................................................................................................23

Setting the Bobbin...................................................................................................24

Pulling Up the Bobbin Thread .................................................................................25

UPPER THREADING............................................................................27

Threading Using the “Automatic Threading” Button...............................................27

Threading Manually ................................................................................................29

Using the Twin Needle Mode..................................................................................31

Using Threads that Unwind Quickly .......................................................................33

■Using the Spool Net ........................................................................................................33

■Using the Vertical Spool Pin............................................................................................33

CHANGING THE PRESSER FOOT .......................................................34

Removing the Presser Foot ......................................................................................34

Attaching the Presser Foot ......................................................................................34

Attaching the Walking Foot.....................................................................................35

CHANGING THE NEEDLE...................................................................36

■About the Needle ............................................................................................................38

■Fabric/Thread/Needle Combinations ..............................................................................38

TURNING THE MACHINE ON/OFF

!Insert the power cord into the power cord

jack connector, then insert the plug into a

wall outlet.

aMain power switch

bPower cord

"Turn the main power switch to “I” to turn

on the machine.

aOFF

bON

#Turn the main power switch to “O” to turn

off the machine.

WARNING

• Use only regular household electricity as the power source. Using other power sources may result in fire,

electric shock, or damage to the machine.

• Turn the main power to OFF and remove the plug in the following circumstances:

When you are away from the machine

After using the machine

When the power fails during use

When the machine does not operate correctly due to a bad connection or a disconnection

During electrical storms

CAUTION

• Do not use extension cords or multi-plug adapters with many other appliances plugged in to them. Fire or

electric shock may result.

• Do not touch the plug with wet hands. Electric shock may result.

• When unplugging the machine, always turn the main power to OFF first. Always grasp the plug to remove

it from the outlet. Pulling on the cord may damage the cord, or lead to fire or electric shock.

• Do not allow the power cord to be cut, damaged, modified, forcefully bent, pulled, twisted, or bundled.

Do not place heavy objects on the cord. Do not subject the cord to heat. These things may damage the

cord, or cause fire or electric shock. If the cord or plug is damaged, take the machine to your authorized

retailer for repairs before continuing use.

• Unplug the power cord if the machine is not to be used for a long period of time. Otherwise, a fire may

result.

• When leaving the machine unattended, either the main switch of the machine should be turned to OFF or

the plug must be removed from the socket-outlet.

• When servicing the machine or when removing covers either the machine or the electrical set must be

unplugged.

• For U.S.A. only

This appliance has a polarized plug (one blade wider than the other). To reduce the risk of electrical

shock, this plug is intended to fit in a polarized outlet only one way.

If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified

electrician to install the proper outlet. Do not modify the plug in any way.

LCD SCREEN

Getting Ready

LCD SCREEN

When switching on the machine, the screen will display the name of the machine. Touch the screen to

display the utility stitch. Either “1-01 Straight stitch (Left)” or “1-03 Straight stitch (Middle)” is selected,

depending on the setting selected in the setting screen (See page 14).

Press a key with your finger to select the stitch pattern, to select a machine function, or to select an

operation indicated on the key.

aShows single or twin needle mode setting, and the needle stop position.

bShows the presser foot code. Attach the presser foot indicated in this display before sewing.

cShows the name and code number of the selected stitch.

dShows a preview of the selected stitch.

eShows the stitch patterns.

fShows additional pages that can be displayed.

* All key functions of the LCD are explained in the “key functions” table on the following page.

Note

When the straight stitch needle plate is on the machine, the needle will automatically move to the middle

position.

Memo

• Only touch the screen with your finger or the included touch pen. Do not use a sharp pencil, screw-

driver, or other hard or sharp object. It is not necessary to press hard on the screen. Pressing too hard

or using a sharp object may damage the screen.

Single needle/down position Single needle/up position

Twin needle/down position Twin needle/up position

LCD SCREEN

■Key Functions

No. Display Key Name Explanation Page

aUtility stitch key Press this key to select a straight stitch, zigzag stitch, buttonhole, blind hem

stitch, or other stitches commonly used in garment construction.

bCharacter/Decorative

stitch key

Press this key to select character or decorative stitch patterns. 100

cEmbroidery key Attach the embroidery unit and press this key to sew embroidery. 132

dEmbroidery edit key Press this key to combine embroidery patterns. With the embroidery edit

functions, you can also create original embroidery patterns or frame patterns.

179

eSewing type selection

key

Press this key when you need help selecting the appropriate stitch pattern for

the sewing application and when you need instructions on how to sew the stitch

pattern. This key is very helpful for beginners.

fPattern explanation

key

Press this key to see an explanation of the selected pattern. 20

gAutomatic

reinforcement stitch

key

Press this key to use the automatic reinforcement stitching (reverse stitching)

setting. If you select this setting before sewing, the machine will automatically

sew reinforcement stitches at the beginning and end of sewing (depending on

the pattern, the machine may sew reverse stitches).

hAutomatic thread

cutting key

Press this key to set the automatic thread cutting function. Set the automatic

thread cutting function before sewing to have the machine automatically sew

reinforcement stitches at the beginning and end of sewing (depending on the

pattern, the machine may sew reverse stitches) and trim the threads after

sewing.

bcd

LCD SCREEN

Getting Ready

iStitch selection

display Press the key of the pattern you want to sew. Use to

change selection screens.

jScreen lock key Press this key to lock the screen.When the screen is locked, the various

settings, such as the stitch width and stitch length, are locked and cannot be

changed. Press this key again to unlock the settings.

kImage key Press this key to display an enlarged image of the selected stitch pattern. 51

lMirror image key Press this key to create a mirror image of the selected stitch pattern. If the key

display is light gray, a mirror image of the selected stitch pattern cannot be

sewn.

mNeedle mode

selection key (single/

double)

Press this key to select twin needle sewing mode. The sewing mode changes

between single needle mode and twin needle mode each time you press the

key. If the key display is light gray, the selected stitch pattern cannot be sewn in

twin needle mode.

nReset key Press this key to return the selected stitch pattern’s saved settings to the

original settings.

44-45

oRetrieve key Press this key to retrieve a saved pattern. 53

pManual memory key Change the stitch pattern settings (zigzag width and stitch length, thread

tension, automatic thread cutting or automatic reinforcement stitching, etc.),

then save them by pressing this key. Five sets of settings can be saved for a

single stitch pattern.

qStitch width and stitch

length key

Shows the zigzag width and stitch length settings of the currently selected stitch

pattern. You can use the plus and minus keys to adjust the zigzag width and

stitch length settings.

rThread tension key Shows the thread tension setting of the currently selected stitch pattern. The

thread tension is usually set automatically. You can use the plus and minus keys

to change the thread tension settings.

sMachine setting mode

key

Press this key to change the needle stop position, turn the buzzer ON/OFF,

adjust the pattern or screen, and change other machine settings.

tMachine operation

mode key

Press this key to see explanations for upper threading, winding the bobbin,

changing the presser foot, and how to use the machine.

uPresser foot/Needle

exchange key

Press this key before changing the needle, the presser foot, etc. This key locks

or unlocks all key and button functions to prevent operation of the machine.

34-37

No. Display Key Name Explanation Page

LCD SCREEN

Using the Machine Setting Mode Key

Press to change the default machine settings (needle stop position, embroidery speed, opening

display, etc.) Press , or to display the different settings screens.

Sewing settings

aSelect whether to use the sewing speed controller to determine the zigzag width (see page 72).

bMake adjustments to character or decorative stitch patterns (see page 105).

cAdjust the presser foot height. (Select the height of the presser foot when the presser foot is raised.)

dAdjust the presser foot pressure. (The higher the number, the greater the pressure will be. Set the pressure at 3 for

normal sewing.)

eChange the initial position of the needle when utility stitch is selected. (Choose left or middle position).

Memo

• Some of these functions will be available in future technology upgrades.

• Press or to display a different settings screen.

LCD SCREEN

Getting Ready

General settings

aChange the brightness of the LCD (see page 17).

bSelect the needle stop position (the needle position when the machine is not operating) to be up or down.

cTurn the buzzer ON/OFF.

dTurn the Needle Area and Work Area Lights ON/OFF.

eTurn the opening screen display ON/OFF.

fUse when running an application.

gChange the display language (see page 18).

hDisplay the service count of embroidery stitches. The service count is a reminder to take your machine in for regular

servicing. (Contact your authorized retailer for details.)

iThe “NO.” is the number for the embroidery and sewing machine.

jDisplay the program version.

Memo

The latest version of software is installed in your machine. Check with your local authorized Baby Lock

retailer or at www.babylock.com for notification of available updates (see page 216).

LCD SCREEN

Embroidery settings

aSelect from among 10 embroidery frame displays (see page 160).

bChange the thread color display on the embroidery screen; thread number, color name or each time to embroider

(see page 159).

cWhen the thread number #123 is selected, select among six thread brands (see page 159).

dAdjust the maximum embroidery speed setting (see page 158).

eAdjust the thread tension for embroidering.

fSelect the height of the embroidery foot “W” during embroidering (see page 140).

gChange the display units (mm/inch).

hChange the initial mode of the display (embroidery/embroidery edit).

iCustomize the thread color numbers (see page 190).

LCD SCREEN

Getting Ready

■Adjusting Screen Brightness

!Press .

!The Sewing settings screen appears.

"Press .

!The General settings screen appears.

#On the BRIGHTNESS OF LCD display, use

and to adjust the screen

brightness.

* Press to make the screen darker.

* Press to make the screen lighter.

aBrightness of LCD display

$Press .

Note

• All or part of the screen may sometimes

become darker or lighter because of

changes in the air temperature or other

changes in the environment around the

screen. This is normal and is not a sign of

malfunction. Adjust the screen if it is difficult

to read.

• The screen may be dark immediately after

turning on the power. This is a function of

the LCD back light screen, and it is not a

sign of malfunction. The screen will return to

its normal level of brightness after approxi-

mately 10 minutes.

• If you are not directly in front of the machine

when you view the LCD, the colors may

appear to change or the screen may be diffi-

cult to see. This is a characteristic of the

LCD, and not a sign of damage or malfunc-

tion. For best results operate the screen

while sitting in front of the machine.

Memo

• Press or to display a different

settings screen.

LCD SCREEN

■Choosing the Display Language

!Press .

!The Sewing settings screen appears.

"Press .

!The General settings screen appears.

#Use and to choose the display

language.

* Choose from the following languages: [ENGLISH],

[GERMAN], [FRENCH], [ITALIAN], [DUTCH],

[SPANISH], [JAPANESE], [DANISH],

[NORWEGIAN], [FINNISH], [SWEDISH],

[PORTUGEUSE] or [RUSSIAN].

aDisplay language

$Press .

LCD SCREEN

Getting Ready

Using the Machine Operation Mode Key

Press to open the screen shown below. Six categories are displayed at the top of the screen.

Press a key to see more information about that category.

aAdjusting thread tension information

displays information about

the main parts of the machine and their

functions. This is the first screen displayed

when you press .

displays information about

the operation buttons.

displays information about

threading the machine, changing presser feet,

etc.

displays information about

attaching the embroidery unit, preparing

fabric for embroidering, etc.

displays troubleshooting

information.

displays information about

cleaning the machine, etc.

LCD SCREEN

Example: Displaying information about

upper threading

!Press .

"Press .

!The lower half of the screen will change.

#Press (upper threading).

!The screen shows instructions for threading the

machine.

$Read the instructions.

* Press to see a video of the displayed

instructions.

* Press to view the next page.

%Press to return to the original

screen.

Using the Pattern Explanation

Key

If you want to know more about the uses of a stitch

pattern, select the pattern and press to see

an explanation of the stitch selection.

Example: Displaying information about

!Press .

"Press .

!The screen shows information about .

#Press to return to the original

screen.

LOWER THREADING

Getting Ready

LOWER THREADING

Winding the Bobbin

Press !!!

in that order to display a video example of

bobbin winding on the LCD (see page 20). Follow

the steps explained below to complete the

operation.

■Using the Supplemental Spool Pin

With this machine, you can wind the bobbin during

sewing. While using the main spool pin to sew

embroidery, you can conveniently wind the bobbin

using the supplemental spool pin.

aSupplemental spool pin

!Turn the main power to ON.

"Align the groove in the bobbin with the

spring on the bobbin winder shaft, and set

the bobbin on the shaft.

aGroove of the bobbin

bSpring on the shaft

#Set the supplemental spool pin in the “up”

position.

aSupplemental spool pin

$Place the spool of thread on the

supplemental spool pin, so that thread

unrolls from the front. Then push the spool

cap onto the spool pin as far as possible to

secure the thread spool.

aSpool pin

bSpool cap

cThread spool

CAUTION

• The enclosed bobbin was designed specifically

for this sewing machine. If bobbins from other

models are used, the machine will not operate

correctly. Use only the enclosed bobbin or

bobbins of the same type (part code: X52800-

150).

Actual size

This model Other models

11.5 mm

(approx.

7/16 inch)

7, 8

3, 4

LOWER THREADING

%With your right hand, hold the thread near

the thread spool. With your left hand, hold

the end of the thread, and use both hands to

pass the thread through the thread guide.

aThread guide

&Pass the thread under the pin, and pass the

thread around the pretension disk making

sure that the thread is under the pretension

disk.

aPin

bPretension disk

'Wind the thread clockwise around the

bobbin 4-5 times.

(Pass the end of the thread through the guide

slit in the bobbin winder seat, and pull the

thread to the right to cut the thread with

the cutter.

aGuide slit

bBobbin winder seat

CAUTION

• If the thread spool and/or spool cap are set

incorrectly, the thread may tangle on the spool

pin, the thread will wind uneven on the bobbin

and eventually cause damage to the machine.

• Use the spool cap (large, medium, or small)

that is closest in size to the thread spool. If a

spool cap smaller than the thread spool is

used, the thread may become caught in the slit

on the end of the spool and cause damage to

the machine.

Memo

When sewing with fine, cross-wound thread,

use the small spool cap, and leave a small

space between the cap and the thread spool.

aSpool cap (small)

bThread spool (cross-wound thread)

cSpace

CAUTION

• Be sure to follow the process described. If the

thread is not cut with the cutter, and the

bobbin is wound, when the thread runs low it

may tangle around the bobbin and cause the

needle to break.

LOWER THREADING

Getting Ready

)Set the bobbin holder to the left, until it

clicks into place.

aBobbin holder (switch)

!The bobbin starts winding automatically and stops

rotating when it is done winding. The bobbin holder

will return to the original position.

*Cut the thread with the cutter and remove

the bobbin.

■Using the Spool Pin

You can use the main spool pin to wind the bobbin

before sewing. You cannot use this spool pin to

wind the bobbin while sewing.

!Turn the main power to ON.

"Align the groove in the bobbin with the

spring on the bobbin winder shaft, and set

the bobbin on the shaft.

aGroove of the bobbin

bSpring on the shaft

#Pivot the spool pin so that it angles upward.

Set the thread spool on the spool pin so that

the thread unwinds from the front of the

spool.

aSpool pin

bSpool cap

cThread spool

Memo

When the bobbin holder is set to the left, it

works as a switch to make the bobbin wind

automatically.

Memo

• When removing the bobbin, do not pull on

the bobbin winder seat. Doing so could

loosen or remove the bobbin winder seat,

and could result in damage to the machine.

CAUTION

• Setting the bobbin improperly may cause the

thread tension to loosen, breaking the needle

and possibly resulting in injury.

LOWER THREADING

$Push the spool cap onto the spool pin as far

as possible, then return the spool pin to its

original position.

%Holding the thread with your hands, slide

the thread into the grooves on the thread

guide plate.

aThread guide plate

&Pass the thread through the thread guide.

aThread guide

'Pass the thread under the pin. Then pass the

thread around the pretension disk making

sure that the thread is under the pretension

disk.

aThread guide

bPin

cPretension disk

(Follow steps ' through * on page 22

through 23.

Setting the Bobbin

Press ! ! !

in that order to display a video example of

the operation on the LCD (see page 20). Follow

the steps explained below to complete the

operation.

!Press the “Presser Foot Lifter” button to

raise the presser foot.

"Slide the bobbin cover latch to the right.

aBobbin cover

bLatch

!The bobbin cover opens.

#Remove the bobbin cover.

$Hold the bobbin with your right hand and

hold the end of the thread with your left

hand.

CAUTION

• Use a bobbin thread that has been correctly

wound. Otherwise, the needle may break or

the thread tension will be incorrect.

LOWER THREADING

Getting Ready

%Set the bobbin in the bobbin case so that

the thread unwinds to the left.

&Hold the bobbin lightly with your right

hand, and then guide the thread with your

left hand.

'Pass the thread through the guide, and then

pull the thread out towards the front.

aCutter

!The cutter cuts the thread.

(Insert the tab in the lower-left corner of the

bobbin cover, and then lightly press down

on the right side to close the cover.

Pulling Up the Bobbin Thread

There may be some sewing applications where

you want to pull up the bobbin thread; for

example, when making gathers, darts, or doing

free motion quilting or embroidery.

!Guide the bobbin thread through the

groove, following the arrow in the

illustration.

* Do not cut the thread with the cutter.

* Do not replace the bobbin cover.

"While holding the upper thread, press the

needle position button to lower the needle.

aNeedle position button

CAUTION

• Be sure to hold down the bobbin with your

finger and unwind the bobbin thread correctly.

Otherwise, the thread may break or the thread

tension will be incorrect.

Memo

You can pull up the bobbin thread after thread-

ing the upper thread (see “UPPER THREAD-

ING” on page 27).

LOWER THREADING

#Press the “Needle Position” button to raise

the needle.

$Gently pull the upper thread, and a loop of

the bobbin thread will come out of the hole

in the needle plate.

%Pull up the bobbin thread, then pass it

under the presser foot and pull it about

100 mm (approx. 3-4 inches) toward the

back of the machine, making it even with

the upper thread.

aUpper thread

bBobbin thread

&Replace the bobbin cover.

UPPER THREADING

Getting Ready

UPPER THREADING

Threading Using the “Automatic

Threading” Button

Press !!!

in that order to display a video example of

the operation on the LCD (see page 20). Follow

the steps explained below to complete the

operation.

!Turn the main power to ON.

"Press the “Needle Position” button to raise

the needle.

#Pivot the spool pin so that it angles upward.

Set the thread spool on the spool pin so that

the thread unwinds from the front of the

spool.

aSpool pin

bSpool cap

cThread spool

$Push the spool cap onto the spool pin as far

as possible, then return the spool pin to its

original position.

CAUTION

• Be sure to thread the machine properly.

Improper threading can cause the thread to

tangle and break the needle, leading to injury.

• When using accessories not included with this

machine, attach the accessory to the machine

after threading the machine.

Memo

• The automatic threading function can be

used with sewing machine needles 75/11

through 100/16.

• Thread such as transparent nylon monofila-

ment thread and thread with a thickness of

130/20 or thicker cannot be used with the

automatic threading function.

• The automatic threading function cannot be

used with the wing needle or the twin nee-

dle.

• If the automatic threading function cannot be

used, see “Threading Manually” on page 29.

3, 4

Note

If you try to thread the needle automatically

without raising the needle, the thread may not

thread correctly.

CAUTION

• If the thread spool and/or spool cap are set

incorrectly, the thread may tangle on the spool

pin and cause the needle to break.

• Use the spool cap (large, medium, or small)

that is closest in size to the thread spool. If a

spool cap smaller than the thread spool is

used, the thread may become caught in the slit

on the end of the spool and cause the needle

to break.

UPPER THREADING

%Holding the thread with your hands, slide

the thread into the grooves on the thread

guide plate.

aThread guide plate

&While holding the thread in your right

hand, pass the thread through the thread

guide in the direction indicated.

'When finished pulling the thread through

the thread guide, cut the thread and leave

the thread in position.

aCutter

(Press the “Automatic Threading” button to

have the machine automatically thread the

needle.

!The upper threading is finished.

Memo

When sewing with fine, cross-wound thread,

use the small spool cap, and leave a small

space between the cap and the thread spool.

aSpool cap (small)

bThread spool (cross-wound thread)

cSpace

Memo

When the “Automatic Threading” button is

pressed, the presser foot will be automatically

lowered.

Note

In case the needle is not completely thread,

slowly pull the loop of the thread through from

the back of the needle.

aAbout 50mm (approx. 2 inches)

Memo

If the needle could not be threaded or the

thread was not passed through the needle bar

thread guides, perform the procedure again

starting from step #.

UPPER THREADING

Getting Ready

Threading Manually

Automatic threading cannot be used when using

the wing needle, the twin needle, or special thread

with a thickness of 130/20 or thicker. In these

cases, thread the needle as described below.

!Turn the main power to ON.

"Turn the handwheel so that the line on the

machine is aligned with the line on the

handwheel.

aLine on handwheel

#Press .

!The key appears as .

$Raise the presser foot lever.

%Pivot the spool pin so that it angles upward.

Set the thread spool on the spool pin so that

the thread unwinds from the front of the

spool.

aSpool pin

bSpool cap

cThread spool

Note

When the “Automatic Threading” button is

pressed, the presser foot will be automatically

lowered.

If you are using an incorrect needle and thread

combination, the hook may sometimes get

caught in the needle. If this happens, remove

the hook from the needle as described below.

CAUTION

• The needle thread carrier will automatically

thread the needle when the “Automatic

Threading” button is pressed. Be sure to keep

your hands and other items away from the

needle area, otherwise injuries may occur.

5, 6

4, 12

Memo

If the line on the machine is not aligned with

the line on the handwheel, the sewing

machine cannot be threaded. Check that the

line on the handwheel is facing up as shown in

the illustration above.

UPPER THREADING

&Push the spool cap onto the spool pin as far

as possible, then return the spool pin to its

original position.

'Holding the thread with both hands, slide

the thread into the grooves on the thread

guide plate.

aThread guide plate

(While holding the thread in your right

hand, use your left hand to pull the thread

toward the threading path cover, then pass

it along the thread path as shown in the

illustration.

Be sure to pass the thread along the right

side of the thread path guide.

aThreading path cover

bThread path guide

)Pull the thread under the thread path guide.

aThread path guide

*Pull back up the thread along the left side of

the thread path guide to the top left corner

of the threading path cover.

aTop left corner

bThreading path cover

+Pull the thread back down to the needle bar

along the left side of the thread path guide.

* Make sure the thread is hooked at the top corner

and positioned behind the transparent front cover.

aThread take-up lever check window

bTransparent front cover

CAUTION

• If the thread spool and/or spool cap are set

incorrectly, the thread may tangle on the spool

pin and cause the needle to break.

• Use the spool cap (large, medium, or small)

that is closest in size to the thread spool. If a

spool cap smaller than the thread spool is

used, the thread may become caught in the slit

on the end of the spool and cause the needle

to break.

Memo

Look through the thread take-up lever check

window and check that the thread is correctly

fed through the take-up lever, turning the

handwheel toward you.

(A)

(B)

(C)

a Take-up lever b Thread

UPPER THREADING

Getting Ready

,Lower the presser foot lever.

-Holding the thread with both hands, pass

the thread through both the upper and

lower needle bar thread guides.

aNeedle bar thread guide (upper)

bNeedle bar thread guide (lower)

.Pass the thread through the eye of the

needle from front to back.

/Pass the thread through the presser foot,

and then pull out about 100-150 mm

(approx. 4-6 inches) of thread toward the

back of the machine.

a100-150 mm (approx. 4-6 inches)

0Press to unlock all keys and

buttons.

Using the Twin Needle Mode

The twin needle can only be used for patterns that

show after being selected. Before you

select a stitch pattern, make sure the stitch can be

sewn in the twin needle mode (refer to the

“STITCH SETTING CHART” at the end of this

manual).

!Press and install the twin needle

(see “CHANGING THE NEEDLE” on page 36).

"Manually thread the machine.

* Follow the steps for threading a single needle for the

first threading (see “Threading Manually” on page

29).

CAUTION

• Use only twin needles made for this machine

(part code X59296-151). Other needles could

break, resulting in damage.

• Be sure to set the twin needle mode when

using the twin needle. Using the twin needle

while the machine is in single needle mode

could cause the needle to break, resulting in

damage.

• Do not sew with bent needles. The needle

could break and cause injury.

• When using the twin needle, be sure to use

presser foot “J”.

• When the twin needle is used, bunched

stitches may occur depending on the types of

fabric and thread that are used.

If this occurs, use monogramming foot “N”.

UPPER THREADING

Getting Ready

*Select a stitch pattern. (Example: )

* Refer to the “STITCH SETTING CHART” at the end

of this manual for proper stitch to use with presser

foot “J”.

!The Selected stitch is displayed.

+Press to select the twin needle

mode.

aSingle needle/twin needle setting

! appears.

,Start sewing.

Sample of Twin Needle Sewing

Using Threads that Unwind

Quickly

■Using the Spool Net

If using transparent nylon thread, metallic thread, or

other strong thread, place the included spool net

over the spool before using it. When using these

threads, threading must be done manually.

If the spool net is too long, fold it once to match it to

the spool size before placing it over the spool.

■Using the Vertical Spool Pin

Use the vertical spool pin when using an irregularly

shaped thread spool, and when sewing or

embroidering with metallic thread.

!Insert the vertical spool pin into the end of

the bobbin winder shaft.

"Install the spool felt and the thread spool in

that order, and then thread the upper

thread.

Note

If the key is light gray after selecting

the stitch, the selected stitch cannot be sewn

in the twin needle mode.

CAUTION

Be sure to set the twin needle mode when using

the twin needle. Using the twin needle while the

machine is in single needle mode could cause the

needle to break, resulting in damage.

Memo

• When threading the spool with the spool net

on, the thread may not come out enough.

Make sure that 5-6 cm (approx. 2 - 2-1/2

inches) of thread are pulled out.

• It may be necessary to adjust the thread ten-

sion when using the spool net.

Memo

• When setting the thread spool, set it so that

the thread winds off from the front of the

spool.

• If using metallic thread, we recommend that

you use a 90/14 home sewing machine nee-

dle.

• This method keeps the thread from twisting

as it comes off the spool pin.

aSpool net

bThread spool

cSpool pin

dSpool cap

aBobbin winder shaft

bVertical spool pin

cSpool felt

dThread spool

CHANGING THE PRESSER FOOT

Removing the Presser Foot

!Press the “Needle Position” button to raise

the needle.

"Press .

!The key appears as .

#Raise the presser foot lever.

$Press the black button on the presser foot

holder and remove the presser foot.

aBlack button

bPresser foot holder

Attaching the Presser Foot

!Place the new presser foot under the

holder, aligning the foot pin with the notch

in the holder. Lower the presser foot lever

so that the presser foot pin snaps into the

notch in the holder.

aNotch

bPin

"Press to unlock all keys and

buttons.

#Raise the presser foot lever.

CAUTION

• Always press on the screen before changing the presser foot. If is not pressed and the

“Start/Stop” button or another button is pressed, the machine will start and may cause injury.

• Always use the correct presser foot for the selected stitch pattern. If the wrong presser foot is used, the

needle may strike the presser foot and bend or break, and may cause injury.

• Only use presser feet made for this machine. Using other presser feet may lead to accident or injury.

CHANGING THE PRESSER FOOT

Getting Ready

Attaching the Walking Foot

The walking foot holds the fabric between the

presser foot and the feed dogs to feed the fabric.

This enables you to have better fabric control

when sewing difficult fabrics (such as quilting or

velvet) or fabrics that slip easily (such as vinyl

cloth, leather, or synthetic leather).

!Follow the steps in “Removing the Presser

Foot” on the previous page.

"Loosen the screw of the presser foot holder

to remove the presser foot holder.

#Set the operation lever of the walking foot

so that the needle clamp screw is set

between the fork, and position the walking

foot on the presser foot bar.

aOperation lever

bNeedle clamp screw

cFork

dPresser foot bar

$Lower the presser foot lever. Insert the

screw, and tighten the screw securely with

the screwdriver.

Note

• When sewing with the walking foot, sew at

medium to low speeds.

Memo

• The walking foot can only be used with

straight or zigzag stitch patterns. Reverse

stitches cannot be sewn with the walking

foot. Only select straight or zigzag stitch pat-

terns with reinforcement stitches.

CAUTION

• Use the screwdriver to tighten the screw

securely. If the screw is loose, the needle may

strike the presser foot and cause injury.

• Be sure to turn the handwheel toward the

front of the machine to check that the needle

does not strike the presser foot. If the needle

strikes the presser foot, injury may result.

CHANGING THE NEEDLE

!Press the “Needle Position” button to raise

the needle.

"Press .

!The key appears as .

#Use the screwdriver to turn the screw

toward the front of the machine and loosen

the screw, then remove the needle.

CAUTION

• Always press on the screen before changing the needle. If is not pressed and the Start/

Stop button or another operation button is pressed accidentally, the machine will start and injury may

result.

• Use only sewing machine needles made for home use-type 130/705H needle. Other needles may bend or

break and may cause injury.

• Never sew with a bent needle. A bent needle will easily break and may cause injury.

Memo

To check the needle correctly, place the flat

side of the needle on a flat surface. Check the

needle from the top and the sides. Throw

away any bent needles.

aParallel space

bLevel surface (bobbin cover, glass, etc.)

Note

• Do not apply pressure to the needle clamp

screw. Doing so may damage the needle or

machine.

CHANGING THE NEEDLE

Getting Ready

$With the flat side of the needle facing the

back, insert the new needle all the way to

the top of the needle stopper (viewing

window) in the needle clamp. Use a

screwdriver to securely tighten the needle

clamp screw.

aNeedle stopper

bHole for setting the needle

cFlat side of needle

%Press to unlock all keys and

buttons.

CAUTION

• Be sure to push in the needle until it touches

the stopper, and securely tighten the needle

clamp screw with a screwdriver. If the needle

is not completely inserted or the needle clamp

screw is loose, the needle may break or the

machine may be damaged.

CHANGING THE NEEDLE

■About the Needle

The sewing machine needle is probably the most important part of the sewing machine. Choosing the proper

needle for your sewing project will result in a beautiful finish and fewer problems. Below are some things to keep

in mind about needles.

• The smaller the needle number, the finer the needle. As the numbers increase, the needles get thicker.

• Use fine needles with lightweight fabrics, and thicker needles with heavyweight fabrics.

• To avoid skipped stitches, use ball point needle (golden colored) 90/14 with stretch fabrics.

• To avoid skipped stitches, use ball point needle (golden colored) 90/14 when sewing character or decorative

stitches.

• Use needle 75/11 for embroidery. Use ball point needle HA × 130 for embroidering patterns with short jump

stitches such as alphabet characters when the thread trimming function is turned on. Ball point needles

(golden colored) 90/14 are not recommended for embroidery, as they may bend or break, causing injury.

• It is recommended that a 90/14 needle should be used when embroidering on heavyweight fabrics or

stabilizing products (for example, denim, puffy foam, etc.). A 75/11 needle may bend or break, which could

result in injury.

• A home sewing machine needle 75/11 is inserted in the sewing machine.

■Fabric/Thread/Needle Combinations

The following table provides information concerning the appropriate thread and needle for various fabrics.

Please refer to this table when selecting a thread and needle for the fabric you wish to use.

Fabric Thread Size of needle

Type Size

Medium weight fabric Broadcloth Cotton 60 - 80 75/11 - 90/14

Taffeta Synthetic mercerized 60 - 80

Flannel, Gabardine Silk or silk finished 50

Lightweight fabric Lawn, Batiste Cotton 60 - 80 65/9 - 75/11

Georgette Synthetic mercerized 60 - 80

Challis, Satin Silk 50

Heavyweight fabric Denim Cotton 30 - 50 90/14 - 100/16

Corduroy Synthetic mercerized 50

Tweed Silk 50

Stretch fabric Jersey Thread for knits 50 - 60 Ball point needle

(golden colored)

75/11 - 90/14

Tr i c o t

For top stitching Synthetic mercerized 30 90/14 - 100/16

Silk 30

Memo

For transparent nylon thread, always use needle 90/14 - 100/16.

The same thread is usually used for the bobbin thread and upper threading.

CAUTION

• Be sure to follow the needle, thread, and fabric combinations listed in the table. Using an improper

combination, especially a heavyweight fabric (i.e., denim) with a small needle (i.e., 65/9 - 75/11), may

cause the needle to bend or break, and lead to injury. Also, the seam may be uneven, the fabric may

pucker, or the machine may skip stitches.

!"#$%&'!"

Sewing Basics

SEWING ..............................................................................................40

Sewing a Stitch........................................................................................................40

■Using the Foot Controller................................................................................................41

Sewing Reinforcement Stitches ...............................................................................42

Sewing Curves.........................................................................................................42

Changing Sewing Direction.....................................................................................42

Sewing Heavyweight Fabrics...................................................................................43

■If the Fabric does not Fit under the Presser Foot .............................................................43

■If the Fabric does not Feed at the Beginning of Stitching.................................................43

Sewing Lightweight Fabrics .....................................................................................43

STITCH SETTINGS...............................................................................44

Setting the Stitch Width ..........................................................................................44

Setting the Stitch Length .........................................................................................44

Setting the Thread Tension......................................................................................45

■Proper Thread Tension ....................................................................................................45

■Upper Thread is Too Tight...............................................................................................45

■Upper Thread is Too Loose..............................................................................................45

USEFUL FUNCTIONS..........................................................................46

Automatic Reinforcement Stitching ........................................................................46

Automatic Thread Cutting.......................................................................................47

■Using the Knee Lifter.......................................................................................................48

Locking the Screen ..................................................................................................48

SEWING

Sewing a Stitch

!Turn the main power to ON, and push the

“Needle Position” button to raise the

needle.

"Press the key of the stitch you want to sew.

!The symbol of the correct presser foot will be

displayed in the upper left corner of the LCD.

#Install the presser foot (see “CHANGING

THE PRESSER FOOT” on page 34).

$Set the fabric under the presser foot. Hold

the fabric and thread ends in your left hand,

and turn the handwheel to set the needle in

the sewing start position.

%Lower the presser foot.

* You do not have to pull up the bobbin thread.

&Adjust the sewing speed with the speed

control slide.

* You can use this slide to adjust sewing speed during

sewing.

aSlow

bFast

CAUTION

• To avoid injury, pay special attention to the needle while the machine is in operation. Keep your hands

away from moving parts while the machine is in operation.

• Do not stretch or pull the fabric during sewing. Doing so may lead to injury.

• Do not use bent or broken needles. Doing so may lead to injury.

• Take care that the needle does not strike basting pins or other objects during sewing. Otherwise, the

needle may break and cause injury.

• If stitches become bunched, lengthen the stitch length setting before continuing sewing. Otherwise, the

needle may break and cause injury.

CAUTION

• Always use the correct presser foot. If the

wrong presser foot is used, the needle may

strike the presser foot and bend or break,

possibly resulting in injury.

Memo

The black button on the left side of presser

foot “J” should be pressed only if the fabric

does not feed or when sewing thick seams

(see page 43). Normally, you can sew without

pressing the black button.

SEWING

Sewing Basics

'Press the “Start/Stop” button to start

sewing.

* Guide the fabric lightly by hand.

(Press the “Start/Stop” button again to stop

sewing.

)Press the “Thread Cutter” button to trim

the threads.

!The needle will return to the up position

automatically.

*When the needle has stopped moving, raise

the presser foot and remove the fabric.

■Using the Foot Controller

You can also use the foot controller to start and stop

sewing.

!Pull the retractable cord out from the foot

controller to the desired length, and then

insert the foot controller plug into its jack

on the machine.

aFoot controller

bFoot controller jack

CAUTION

• Do not press the “Thread Cutter” button after

the threads have been cut. Doing so could

tangle the thread or break the needle and

damage the machine.

• Do not press the “Thread Cutter” button when

there is no fabric set in the machine or during

machine operation. The thread may tangle,

possibly resulting in damage.

Note

• When cutting thread thicker than #30, nylon

thread, or other decorative threads, use the

thread cutter on the side of the machine.

Memo

This machine is equipped with a bobbin thread

sensor that warns you when the bobbin thread

is almost empty. When the bobbin thread is

nearly empty, the machine automatically

stops. However, if the “Start/Stop” button is

pressed, a few stitches can be sewn. If the

warning displays, re-thread the machine

immediately.

CAUTION

Do not allow fabric pieces and dust to collect in

the foot controller. Doing so could cause a fire or

an electric shock.

Memo

• When the foot controller is being used, the

“Start/Stop” button has no effect on sewing.

• The foot controller cannot be used when

embroidering. The foot controller can be

used for sewing utility and decorative

stitches when the embroidery unit is

attached.

Note

Do not pull retractable cord out beyond the red

mark.

SEWING

"Slowly depress the foot controller to start

sewing.

#Release the foot controller to stop the

machine.

Sewing Reinforcement Stitches

Reverse/reinforcement stitches are generally

necessary at the beginning and end of sewing. You

can use the “Reverse/Reinforcement Stitch” button

to sew reverse/reinforcement stitches manually

(see page 3).

If the automatic reinforcement stitch is selected on

the screen, reverse stitches (or reinforcement

stitches) will be sewn automatically at the

beginning of sewing when the “Start/Stop” button

is pressed. Press the “Reverse/Reinforcement

Stitch” button to sew reverse stitches (or

reinforcement stitches) automatically at the end of

sewing (see page 46).

Sewing Curves

Sew slowly while keeping the seam parallel with

the fabric edge as you guide the fabric around the

curve.

Changing Sewing Direction

Stop the machine. Leave the needle in the fabric,

and press the “Presser Foot Lifter” button to raise

the presser foot. Using the needle as a pivot, turn

the fabric so that you can sew in the new

direction. Press the “Presser Foot Lifter” button to

lower the presser foot and start sewing.

When edge stitching a short stitch length close to

the edge of the fabric, the presser foot may not

cover enough fabric for proper feeding. Before you

begin to sew, sew a basting thread at the corner

point. When you change direction at the corner,

start sewing as you pull the basting thread toward

the back.

a5 mm (approx. 3/16 inch)

Memo

The speed set using the sewing speed con-

troller is the foot controller’s maximum sewing

speed.

Memo

(For U.S.A. only)

Foot controller: Model S

This foot controller can be used with model

BLG

SEWING

Sewing Basics

Sewing Heavyweight Fabrics

The sewing machine can sew fabrics up to 6 mm

(approx. 1/4 inch) thick. If the thickness of a seam

causes sewing to occur at an angle, help guide the

fabric by hand and sew on the downward slope.

■If the Fabric does not Fit under the

Presser Foot

If the presser foot is in the up position, and you are

sewing heavyweight or multiple layers of fabric

which do not fit easily under the presser foot, use

the presser foot lever to raise the presser foot to its

highest position. The fabric will now fit under the

presser foot.

■If the Fabric does not Feed at the

Beginning of Stitching

If the fabric does not feed when starting to sew or

when sewing thick seams, press the black button on

the left side of presser foot “J”.

!Raise the presser foot.

"While keeping the black button on the left

side of presser foot “J” pressed in, press the

“Presser Foot Lifter” button to lower the

presser foot.

#Release the button.

!The presser foot remains level, enabling the fabric to

be fed.

Sewing Lightweight Fabrics

Place thin paper or tear away embroidery

stabilizer under thin fabrics to make sewing easier.

Gently tear off the paper or the stabilizer after

sewing.

aThin paper

CAUTION

• Do not forcefully push fabrics more than 6 mm

(approx. 1/4 inch) thick through the sewing

machine. This may cause the needle to break

and cause injury.

Memo

You cannot use the presser foot lever after

the presser foot has been raised using the

“Presser Foot Lifter” button.

Memo

Once the trouble spot has been passed, the

foot will return to its normal position.

STITCH SETTINGS

When you select a stitch, your machine automatically selects the appropriate stitch width, stitch length,

and upper thread tension. However, if needed, you can change any of the individual settings.

Setting the Stitch Width

Follow the steps below when you want to change

the zigzag stitch pattern width.

Example:

Press to narrow the zigzag stitch pattern width.

! The value in the display gets smaller.

Press to widen the zigzag stitch pattern width.

! The value in the display gets bigger.

Setting the Stitch Length

Follow the steps below when you want to change

the stitch pattern length.

Example:

Press to shorten the stitch length.

! The value in the display gets smaller.

Note

• Settings for some stitches cannot be changed (refer to the “STITCH SETTING CHART” at the end of

this manual).

• If you turn off the machine or select another stitch without saving stitch setting changes (see “Saving

Your Stitch Settings” on page 52), the stitch settings will return to their default settings.

Memo

• For an alternate method of changing the

stitch width using the speed controller, see

page 72.

Memo

• Press to return the stitch width to the

original setting.

STITCH SETTINGS

Sewing Basics

Press to lengthen the stitch length.

! The value in the display gets bigger.

Setting the Thread Tension

You may need to change the thread tension,

depending on the fabric and thread being used.

Follow the steps below to make any necessary

changes.

■ Proper Thread Tension

The upper and lower threads should cross near the

center of the fabric. If the thread tension is not

properly set, the seam may have a poor finish or the

fabric may pucker.

aWrong side

bSurface

cUpper thread

dBobbin thread

■Upper Thread is Too Tight

If the bobbin thread can be seen on the surface of

the fabric, press .

aBobbin thread

bUpper thread

cSurface

dLocks appear on surface of fabric

■Upper Thread is Too Loose

If the upper thread can be seen on the wrong side of

the fabric, press .

aUpper thread

bBobbin thread

cWrong side

dLocks appear on wrong side of fabric

Memo

• Press to return the stitch length to the

original setting.

CAUTION

If the stitches get bunched together, lengthen the

stitch length and continue sewing. Do not

continue sewing without lengthening the stitch

length. Otherwise, the needle may break and

cause injury.

Memo

• Press to return the thread tension to

the original setting.

USEFUL FUNCTIONS

Automatic Reinforcement

Stitching

After selecting a stitch pattern, turn on the

automatic reinforcement stitching function before

sewing, and the machine will automatically sew

reinforcement stitches (or reverse stitches,

depending on the stitch pattern) at the beginning

and end of sewing.

!Select a stitch pattern.

"Press to set the automatic

reinforcement stitching function.

!The key will display as .

#Set the fabric in the start position and start

sewing.

aReverse stitches (or reinforcement stitches)

!The machine will automatically sew reverse stitches

(or reinforcement stitches) and then continue

sewing.

$Press the “Reverse/Reinforcement Stitch”

button.

aReverse stitches (or reinforcement stitches)

!The machine will sew reverse stitches (or

reinforcement stitches) and stop.

Memo

Some stitches, such as buttonholes and bar

tacks, require reinforcement stitches at the

beginning of sewing. If you select one of these

stitches, the machine will automatically turn on

this function (the key appears as when

the stitch is selected).

Memo

If you press the “Start/Stop” button to pause

sewing, press it again to continue. The

machine will not sew reverse reinforcement

stitches again.

Memo

To turn off the automatic reinforcement stitch-

ing function, press again, so it appears

as .

USEFUL FUNCTIONS

Sewing Basics

Automatic Thread Cutting

After selecting a stitch pattern, turn on the

automatic thread cutting function before sewing,

and the machine will automatically sew

reinforcement stitches (or reverse stitches,

depending on the stitch pattern) at the beginning

and end of sewing, and trim the threads at the end

of sewing. This function is useful when sewing

buttonholes and bar tacks.

!Select a stitch pattern.

"Press to set the automatic thread

cutting function.

!The key will display as .

#Set the fabric in the start position and start

sewing.

aReverse stitches (or reinforcement stitches)

!The machine will automatically sew reverse stitches

(or reinforcement stitches) and then continue

sewing.

$Press the “Reverse/Reinforcement

Stitching” button.

aReverse stitches (or reinforcement stitches)

!The machine will sew reverse stitches (or

reinforcement stitches), then trim the thread.

Memo

This function is set automatically when sewing

embroidery.

Memo

If you press the “Start/Stop” button to pause

sewing, press the same button again to con-

tinue. The beginning reverse/reinforcement

stitches will not be sewn again.

Memo

To turn off the automatic thread cutting func-

tion, press again, so it appears as .

USEFUL FUNCTIONS

■Using the Knee Lifter

Using the knee lifter, you can raise and lower the

presser foot with your knee, leaving both hands free

to handle the fabric.

!Align the tabs on the knee lifter with the

notches in the jack, and then insert the knee

lifter as far as possible.

"Use your knee to move the knee lifter to the

right in order to raise the presser foot.

Release the knee lifter to lower the presser

foot.

Locking the Screen

If the screen is locked before starting to sew, the

various settings such as the stitch width and stitch

length are locked and cannot be changed. This

prevents screen settings from accidentally being

changed or the machine from being stopped while

large pieces of fabric or projects are being sewn.

The screen can be locked when sewing utility

stitches and character decorative stitches.

!Select a stitch pattern.

"If necessary, adjust any settings such as the

stitch width and stitch length.

#Press to lock the screen settings.

!The key appears as .

$Sew your project.

%When you are finished sewing, press

again to unlock the screen settings.

Note

If the knee lifter is not pushed into the mount-

ing slot as far as possible, it may come out

during use.

CAUTION

Be sure to keep your knee away from the knee

lifter during sewing. If the knee lifter is pushed

during machine operation, the needle may break

or the thread tension may loosen.

CAUTION

• If the screen is locked ( ), unlock the

screen by pressing . While the screen is

locked, no other key can be operated.

• The settings are unlocked when the machine is

turned off and on.

!"#$%&'!#

Utility Stitches

SELECTING UTILITY STITCHES......................50

Selecting a Stitch .............................................................. 50

■Stitch Selection Screens............................................................ 50

■Using the Mirror Image Key ..................................................... 51

■Using the Image Key................................................................. 51

Saving Your Stitch Settings ............................................... 52

■Saving Settings.......................................................................... 52

■Retrieving Saved Settings.......................................................... 53

Using the Sewing Type Selection Key ............................... 53

SEWING THE STITCHES.................................55

Straight Stitches ................................................................ 55

■Changing the Needle Position (Left or Middle Needle Position

Stitches Only) .......................................................................... 57

■Using the Straight Stitch Needle Plate and the Straight Stitch

Foot.......................................................................................... 57

■Basting ..................................................................................... 58

Dart Seam......................................................................... 59

Gathering.......................................................................... 59

Flat Fell Seam.................................................................... 60

Pintuck.............................................................................. 61

Zigzag Stitches.................................................................. 62

■Overcasting (Using a Zigzag Stitch) ......................................... 62

■Appliqué (Using a Zigzag Stitch) .............................................. 62

■Patchwork (for Crazy Quilt)..................................................... 63

■Sewing Curves (Using a Zigzag Stitch) .....................................63

■Cord Guide Bobbin Cover (Using a Zigzag Stitch) ................... 63

Elastic Zigzag Stitches....................................................... 64

■Tape Attaching ......................................................................... 64

■Overcasting.............................................................................. 64

Overcasting ...................................................................... 65

■Overcasting Using Presser Foot “G” ........................................ 65

■Overcasting Using Presser Foot “J”.......................................... 66

■Overcasting Using the Optional Side Cutter ............................ 67

■When Sewing Straight Stitches While Using the Side Cutter.... 68

Quilting ............................................................................ 69

■Piecing ..................................................................................... 70

■Quilting.................................................................................... 70

■Appliqué................................................................................... 71

■Quilting with Satin Stitches...................................................... 72

■Free-motion Quilting................................................................ 73

Blind Hem Stitches ........................................................... 74

■If the Needle does not Catch the Fold......................................75

■If the Needle Catches Too Much of the Fold............................75

Appliqué ........................................................................... 75

■Sewing Sharp Curves................................................................ 76

Shelltuck Stitches.............................................................. 76

Scallop Stitches................................................................. 77

Top Stitching..................................................................... 77

Smocking Stitches ............................................................. 78

Fagoting............................................................................ 78

Tape or Elastic Attaching .................................................. 79

Heirloom .......................................................................... 80

■Hemstitching (1) (Daisy Stitch) ................................................ 80

■Hemstitching (2) (Drawn Work)............................................... 80

■Hemstitching (3)....................................................................... 81

One-step Buttonholes ....................................................... 82

■Sewing Stretch Fabrics ..............................................................85

■Odd Shaped Buttons/Buttons that do not Fit into

the Button Holder Plate ............................................................85

Four-step Buttonholes........................................................86

■Darning.....................................................................................88

Bar Tacks ...........................................................................90

■Bar Tacks on Thick Fabrics........................................................91

Button Sewing ...................................................................92

■Attaching 4 Hole Buttons..........................................................93

■Attaching a Shank to the Button ...............................................93

Eyelet.................................................................................94

Multi-directional Sewing (Straight Stitch and

Zigzag Stitch).....................................................................95

Zipper Insertion.................................................................96

■Centered Zipper........................................................................96

■Inserting a Side Zipper ..............................................................97

SELECTING UTILITY STITCHES

Selecting a Stitch

■Stitch Selection Screens

There are 5 categories of Utility Stitches. indicates that there is more than one stitch selection screen

for that category.

Straight/Overcasting/Quilting Stitches Decorative Stitches

Heirloom Stitches Buttonholes/Bar tacks Multi-directional Sewing

SELECTING UTILITY STITCHES

Utility Stitches

!Turn the main power to ON.

!Either “1-01 Straight stitch (Left)” or “1-03 Straight

stitch (Middle)” is selected, depending on the setting

selected in the setting screen.

"Use to select the

category you want.

* Press to view this screen if another screen

displays.

* Press to view the next page.

aPreview of the selected stitch

bStitch selection screen

#Press the key of the stitch you want to sew.

■Using the Mirror Image Key

Depending on the type of utility stitch you select,

you may be able to sew a horizontal mirror image of

the stitch.

If is lit when you select a stitch, it will be

possible to make a mirror image of the stitch.

Press to create a horizontal mirror image of

the selected stitch.

The key will display as .

■Using the Image Key

You can display an actual size image of the selected

stitch. You can also check and change the colors of

the image on the screen.

!Press .

!An image of the selected stitch is displayed.

Memo

For details on each stitch, refer to the

“STITCH SETTING CHART” at the end of this

manual.

Note

If is light gray after you select a stitch,

you cannot create a horizontal mirror image of

the selected stitch (this is true of buttonholes,

multi-directional sewing, and others).

SELECTING UTILITY STITCHES

"Press to change the thread color of

the stitch on the screen.

* Press to display an enlarged image of the

stitch.

aStitch screen

#Press to go back to the original

screen.

Saving Your Stitch Settings

The settings for the zigzag stitch width, stitch

length, thread tension, automatic thread cutting,

automatic reinforcement stitching, etc., are preset

in the machine for each stitch. However, if you

have specific settings that you wish to reuse later

for a stitch, you can change the settings so that

they can be saved for that stitch. Five sets of

settings can be saved for a single stitch.

■Saving Settings

!Select a stitch. (Example: )

"Specify your preferred settings.

Memo

• The color changes every time you press

• The units of the stitch display area are in

mm.

SELECTING UTILITY STITCHES

Utility Stitches

#Press .

!The settings are saved and the original screen

automatically appears.

■Retrieving Saved Settings

!Select a stitch.

"Press .

#Press the numbered key of the settings to be

retrieved.

* Press to return to the original screen

without retrieving settings.

aNumbered keys

$Press .

!The selected settings are retrieved, and the original

screen automatically appears.

Using the Sewing Type Selection

Key

You can also select utility stitches using .

Use this key when you are not sure which stitch to

use for your application, or to get advice about

sewing particular stitches. For example, if you

want to sew overcasting, but you do not know

which stitch to use or how to sew the stitch, you

can use this screen to get advice. We recommend

that beginners use this method to select stitches.

Memo

If you try to save settings when there are

already 5 sets of settings saved for a stitch, a

message will appear. Follow the directions in

the message to erase one set of currently

saved settings and save the new settings.

Memo

When a stitch is selected, the last settings

retrieved are displayed. The last settings

retrieved are retained even if the machine was

turned off or a different stitch was selected.

Memo

You can delete the selected settings by press-

ing .

SEWING THE STITCHES

Utility Stitches

SEWING THE STITCHES

Straight Stitches

Stitch Stitch name Presser

foot Applications

Stitch width

[mm (inch.)]

Stitch length

[mm (inch.)] Twin

needle

Auto. Manual Auto. Manual

Straight stitch (Left) General sewing, gather, pintuck,

etc. Reverse stitch is sewn while

pressing “Reverse/

Reinforcement Stitch” button.

0.0

(0)

0.0 - 7.0

(0 - 1/4)

2.5

(3/32)

0.2 - 5.0

(1/64 - 3/16)

( J )

Straight stitch (Left) General sewing, gather, pintuck,

etc. Reinforcement stitch is sewn

while pressing “Reverse/

Reinforcement Stitch” button.

0.0

(0)

0.0 - 7.0

(0 - 1/4)

2.5

(3/32)

0.2 - 5.0

(1/64 - 3/16)

( J )

Straight stitch

(Middle)

General sewing, gather, pintuck,

etc. Reverse stitch is sewn while

pressing “Reverse/

Reinforcement Stitch” button.

3.5

(1/8)

0.0 - 7.0

(0 - 1/4)

2.5

(3/32)

0.2 - 5.0

(1/64 - 3/16)

( J )

Straight stitch

(Middle)

General sewing, gather, pintuck,

etc. Reinforcement stitch is sewn

while pressing “Reverse/

Reinforcement Stitch” button.

3.5

(1/8)

0.0 - 7.0

(0 - 1/4)

2.5

(3/32)

0.2 - 5.0

(1/64 - 3/16)

( J )

Triple stretch stitch General sewing for

reinforcement and decorative

topstitching

0.0

(0)

0.0 - 7.0

(0 - 1/4)

2.5

(3/32)

1.5 - 4.0

(1/16 - 3/16)

( J )

Stem stitch Reinforced stitching, sewing and

decorative applications 1.0

(1/16)

1.0 - 3.0

(1/16 - 1/8)

2.5

(3/32)

1.0 - 4.0

(1/16 - 3/16)

( J )

Decorative stitch Decorative stitching, top

stitching 0.0

(0)

0.0 - 7.0

(0 - 1/4)

2.5

(3/32)

1.0 - 4.0

(1/16 - 3/16)

( J )

Basting stitch Basting 0.0

(0)

0.0 - 7.0

(0 - 1/4)

20.0

(3/4)

5.0 - 30.0

(3/16 - 1-3/16) NO

aLeft needle position

bMiddle needle position

aReverse stitch

bReinforcement stitch

Memo

If the selected stitch has a double mark “ ” at the top of the key display, you can sew reverse stitches

holding the “Reverse/Reinforcement Stitch” button.

If the selected stitch has a dot mark “ ” at the top of the key display, you can sew reinforcement stitches

holding the “Reverse/Reinforcement Stitch” button (see page 42).

J J

SEWING THE STITCHES

!Select a stitch.

"Attach presser foot “J”.

#Hold the thread tails and fabric with your

left hand, and turn the handwheel with

your right hand to insert the needle into the

fabric.

aSewing start position

$Lower the presser foot, and hold the

“Reverse/Reinforcement Stitch” button to

sew 3-4 stitches.

!The machine sews reverse stitches (or reinforcement

stitches).

%Press the “Start/Stop” button to sew

forward.

aReverse stitches

!The machine will begin sewing slowly.

&When sewing is completed, hold the

“Reverse/Reinforcement Stitch” button to

sew 3-4 reverse stitches (or reinforcement

stitches) at the end of the seam.

'After sewing, press the “Thread Cutter”

button to trim the threads.

CAUTION

Be sure the needle does not strike a basting pin, or

any other objects, during sewing. The thread

could tangle or the needle could break, causing

injury.

Memo

When the automatic thread cutting and auto-

matic reinforcement stitch keys on the screen

are selected, reverse stitches (or reinforce-

ment stitches) will be sewn automatically at

the beginning of sewing when the “Start/Stop”

button is pressed. Press the “Reverse/Rein-

forcement Stitch” button to sew reverse

stitches (or reinforcement stitches) and trim

the thread automatically at the end of sewing.

SEWING THE STITCHES

Utility Stitches

■Changing the Needle Position (Left

or Middle Needle Position Stitches

Only)

When you select left or middle needle position

stitches, you can use and in the stitch

width display to change the position of the needle.

Match the distance from the right edge of the presser

foot to the needle with the stitch width, then align

the edge of the presser foot with the edge of the

fabric during sewing for an attractive finish.

aStitch width

Example: Left/Middle needle position stitches

■Using the Straight Stitch Needle

Plate and the Straight Stitch Foot

The straight stitch needle plate and the straight stitch

foot can only be used for straight stitches (middle

needle position stitches). Use the straight stitch

needle plate and the straight stitch foot when sewing

thin fabrics or when sewing small pieces which tend

to sink into the hole of the regular needle plate

during sewing. The straight stitch foot is perfect to

reduce puckering on lightweight fabrics. The small

opening on the foot provides support for the fabric

as the needle goes through the fabric.

!Press the “Presser Foot Lifter” button to

raise the presser foot and turn the main

power to OFF.

"Remove the flat bed attachment or the

embroidery unit if either are attached.

#Grasp both sides of the needle plate cover,

and then slide it toward you.

aNeedle plate cover

$Grasp the bobbin case, and then pull it out.

aBobbin case

%Use the screwdriver included with the

machine to unscrew and remove the regular

needle plate.

12.0 mm

(approx.

1/2 inch)

8.5 mm

(approx.

11/32

inch)

6.5 mm

(approx.

1/4 inch)

5.0 mm

(approx. 3/

16 inch)

Memo

For a standard 16 mm (approx. 5/8 inch) seam

allowance, set the width to 0 mm on the

screen. While sewing, align the edge of the

fabric with the 16mm (approx. 5/8 inch) mark

on the needle plate.

a16 mm (approx. 5/8 inch)

CAUTION

Always use the straight stitch foot in combination

with the straight stitch needle plate.

SEWING THE STITCHES

&Set the straight stitch needle plate in place

and use the screwdriver to tighten the plate.

'Insert the bobbin case in its original

position (see page 203), and then attach the

needle plate cover.

(After reinstalling the needle plate cover,

select any of the straight stitches.

)Attach the straight stitch foot.

*Start sewing.

* After sewing, make sure to remove the straight stitch

needle plate and the straight stitch foot, and reinstall

the regular needle plate, the needle plate cover and

the presser foot “J”.

■Basting

!Select and attach presser foot “J”.

"Press the “Reverse/Reinforcement Stitch”

button to sew reinforcement stitches, then

continue sewing.

#Sew while keeping the fabric straight.

$End the basting with reinforcement stitches.

Note

Align the two screw holes on the needle plate

with the two holes on the machine and screws

in the needle plate.

Memo

When using the straight stitch needle plate, all

straight stitches become middle needle posi-

tion stitches. You cannot change the needle

position using the width display.

CAUTION

• Selecting other stitches will cause an error

message to be displayed.

• Be sure to turn the handwheel slowly in your

direction before sewing and make sure that the

needle is not contacting the straight stitch foot

and straight stitch needle plate.

Memo

To prevent puckering on fine fabrics, use a

fine needle, size 75/11, and a short stitch

length. For heavier fabrics, use a heavier nee-

dle, size 90/14, and longer stitches.

Memo

If you do not want to use a reinforcement

stitch at the beginning; you should lift the

presser foot, rotate the handwheel, pull up the

bobbin thread and pull a length of top and

bobbin thread out from the rear of the

machine.

You can set the stitch length between 5 mm

(approx. 3/16 inch) and 30 mm (approx.

1-3/16 inches)

aBetween 5 mm (approx. 3/16 inch) and 30 mm

(approx. 1-3/16 inches)

SEWING THE STITCHES

Utility Stitches

Dart Seam

!Select and attach presser foot “J”.

"Sew a reverse stitch at the beginning of the

dart and then sew from the wide end to the

other end without stretching the fabric.

* If automatic reinforcement stitching is preset, a

reinforcement stitch will automatically be sewn at

the beginning of sewing.

aBasting

#Cut the thread at the end leaving 50 mm

(approx. 1-15/16 inches), and then tie both

ends together.

* Do not sew a reverse stitch at the end.

$Insert the ends of the thread into the dart

with a needle.

%Iron the dart to one side so that it is flat.

Gathering

Use on waists of skirts, sleeves of shirts, etc.

!Select a straight stitch and attach presser

foot “J”.

"Set the stitch length to 4.0 mm (approx.

3/16 inch) and the thread tension to

approximately 2.0 (weaker tension).

* If you press after pressing , the

stitch length will be set automatically to 4.0 mm

(approx. 3/16 inch) and the thread tension will be

automatically set to 2.0.

#Pull the bobbin and upper threads out by

50 mm (approx. 1-15/16 inches) (see page

25).

aUpper thread

bBobbin thread

cAbout 50 mm (approx. 1-15/16 inches)

SEWING THE STITCHES

$Sew two rows of straight stitches parallel to

the seam line, then trim excess thread

leaving 50 mm (approx. 1-15/16 inches).

aSeam line

b10 to 15 mm (approx. 3/8 inch to 9/16 inch)

cAbout 50 mm (approx. 1-15/16 inches)

%Pull the bobbin threads to obtain the

desired amount of gather, then tie the

threads.

&Smooth the gathers by ironing them.

'Sew on the seam line and remove the

basting stitch.

Flat Fell Seam

Use for reinforcing seams and finishing edges

neatly.

!Select and attach presser foot “J”.

"With right sides of the fabric together, sew

the seam line, then cut half of the seam

allowance from the side on which the flat

fell seam will lie.

* When the automatic thread cutting and automatic

reinforcement stitching are preset, reinforcement

stitches will be sewn automatically at the beginning

of sewing. Press the “Reverse/Reinforcement Stitch”

button to sew a reinforcement stitch and trim the

thread automatically at the end of sewing.

aAbout 12 mm (approx. 1/2 inch)

bWrong side

#Spread the fabric out along the seam line.

aSeam line

bWrong side

$Lay both seam allowances on the side of the

shorter seam (cut seam) and iron them.

aWrong side

SEWING THE STITCHES

Utility Stitches

eFold the longer seam allowance around the

shorter one, and sew the edge of the fold.

aWrong side

aSurface

Pintuck

aMark along the folds on the wrong side of

the fabric.

aWrong side

bTurn the fabric and iron the folded parts

only.

aSurface

cSelect and attach presser foot “I”.

dSew a straight stitch along the fold.

* When the automatic thread cutting and automatic

reinforcement stitching are preset, reinforcement

stitches will be sewn automatically at the beginning

of sewing. Press the “Reverse/Reinforcement Stitch”

button to sew a reinforcement stitch and trim the

thread automatically at the end of sewing.

aWidth for pintuck

bWrong side

cSurface

eIron the folds in the same direction.

Finished flat fell seam

SEWING THE STITCHES

Zigzag Stitches

Zigzag stitches are useful for overcasting, appliqué, patchwork, and many other applications.

Select a stitch, and attach presser foot “J”.

If the stitch which you select has a double mark “ ” at the top of the key display, you can sew reverse

stitches by holding the “Reverse/Reinforcement Stitch” button.

If the stitch which you select has a dot mark “ ” at the top of the key display, you can sew reinforcement

stitches by holding the “Reverse/Reinforcement Stitch” button (see page 42).

!Select a stitch.

"Attach presser foot “J”.

■Overcasting (Using a Zigzag Stitch)

Sew the overcasting along the edge of the fabric

while positioning the right-hand side needle drop

point just outside the edge of the fabric.

aNeedle drop position

■Appliqué (Using a Zigzag Stitch)

Attach the appliqué using a temporary spray

adhesive or basting, then sew it.

* Sew a zigzag stitch while positioning the right-hand

side needle drop point just outside the edge of the

fabric.

Stitch Stitch name Presser

foot Applications

Stitch width

[mm (inch.)]

Stitch length

[mm (inch.)] Twin

needle

Auto. Manual Auto. Manual

Zigzag stitch For overcasting, mending.

Reverse stitch is sewn while

pressing “Reverse/

Reinforcement Stitch” button.

3.5

(1/8)

0.0 - 7.0

(0 - 1/4)

1.4

(1/16)

0.0 - 4.0

(0 - 3/16)

( J )

Zigzag stitch For overcasting, mending.

Reinforcement stitch is sewn

while pressing “Reverse/

Reinforcement Stitch” button.

3.5

(1/8)

0.0 - 7.0

(0 - 1/4)

1.4

(1/16)

0.0 - 4.0

(0 - 3/16)

( J )

Zigzag stitch (right) Start from right needle position,

zigzag sew at left. 3.5

(1/8)

2.5 - 5.0

(3/32 - 3/16)

1.4

(1/16)

0.3 - 4.0

(1/64 - 3/16)

( J )

Zigzag stitch (left) Start from left needle position,

zigzag sew at right. 3.5

(1/8)

2.5 - 5.0

(3/32 - 3/16)

1.4

(1/16)

0.3 - 4.0

(1/64 - 3/16)

( J )

SEWING THE STITCHES

Utility Stitches

■Patchwork (for Crazy Quilt)

Turn back the desired width of fabric and position it

over the lower fabric, then sew so that the stitch

bridges both pieces of fabric.

■Sewing Curves (Using a Zigzag

Stitch)

Shorten the stitch length setting to obtain a fine

stitch. Sew slowly, keeping the seams parallel with

the fabric edge as you guide the fabric around the

curve.

■Cord Guide Bobbin Cover (Using a

Zigzag Stitch)

!Remove the bobbin cover from the machine

(see page 24).

"Thread gimp thread through the hole in the

cord guide bobbin cover from top to

bottom. Position the thread in the notch at

the back of the cord guide bobbin cover.

aNotch

bGimp thread

cHole

#Snap the cord guide bobbin cover into

place, making sure that the gimp thread can

be fed freely.

* Make sure there are no restrictions when feeding the

thread.

$Set the zigzag width from 2.0-2.5 mm

(approx. 1/16 - 3/32 inch).

%Attach presser foot “N”.

&Position the fabric right side up on top of

the cord and place the cord to the rear of

the machine under the presser foot.

aFabric (right side)

bGimp thread

'Lower the presser foot and start sewing to

make a decorative finish.

SEWING THE STITCHES

Elastic Zigzag Stitches

Use elastic zigzag stitches for tape attaching, overcasting, darning, or a wide variety of other uses.

!Select a stitch.

"Attach presser foot “J”.

■Tape Attaching

Stretch the tape flat. While stretching the tape flat,

sew the tape to the fabric.

aTape

■Overcasting

Use this stitch to sew overcasting on the edge of

stretch fabrics. Sew the overcasting along the edge

of the fabric while positioning the right-hand side

needle drop point just outside the edge of the fabric.

Stitch Stitch name Presser

foot Applications

Stitch width

[mm (inch.)]

Stitch length

[mm (inch.)] Twin

needle

Auto. Manual Auto. Manual

2 step elastic zigzag Overcasting (medium weight

and stretch fabrics), tape and

elastic

5.0

(3/16)

1.5 - 7.0

(1/16 - 1/4)

1.0

(1/16)

0.2 - 4.0

(1/64 - 1/16)

( J )

2 step elastic zigzag Overcasting (medium weight

and stretch fabrics), tape and

elastic

5.0

(3/16)

1.5 - 7.0

(1/16 - 1/4)

1.0

(1/16)

0.2 - 4.0

(1/64 - 1/16)

( J )

3 step elastic zigzag Overcasting (medium,

heavyweight and stretch fabrics),

tape and elastic

5.0

(3/16)

1.5 - 7.0

(1/16 - 1/4)

1.0

(1/16)

0.2 - 4.0

(1/64 - 1/16)

( J )

SEWING THE STITCHES

Utility Stitches

Overcasting

Use for the beginning and end of seams in skirts or trousers, and the beginning and end of all cuttings.

Use presser foot “G”, presser foot “J”, or the optional side cutter attachment depending on the kind of

overcasting stitch you select.

■Overcasting Using Presser Foot “G”

!Select a stitch and attach presser foot “G”.

"Lower the presser foot so that the presser

foot guide is set flush against the edge of the

fabric.

#Sew along the presser foot guide.

aGuide

Stitch Stitch name Presser

foot Applications

Stitch width

[mm (inch.)]

Stitch length

[mm (inch.)] Twin

needle

Auto. Manual Auto. Manual

Overcasting stitch Reinforcing of light and medium

weight fabrics 3.5

(1/8)

2.5 - 5.0

(3/32 - 3/16)

2.0

(1/16)

1.0 - 4.0

(1/16 - 3/16) NO

Overcasting stitch Reinforcing of heavyweight

fabric 5.0

(3/16)

2.5 - 5.0

(3/32 - 3/16)

2.5

(3/32)

1.0 - 4.0

(1/16 - 3/16) NO

Overcasting stitch Reinforcing of medium,

heavyweight and easily frayable

fabrics or decorative stitching.

5.0

(3/16)

3.5 - 5.0

(1/8 - 3/16)

2.5

(3/32)

1.0 - 4.0

(1/16 - 3/16) NO

CAUTION

• After the stitch width is adjusted, turn the

handwheel toward you by hand and check that

the needle does not touch the presser foot. If

the needle hits the presser foot, the needle

may break and cause injury.

aThe needle should not touch

• If the presser foot is raised to its highest level,

the needle may strike the presser foot.

SEWING THE STITCHES

■Overcasting Using Presser Foot “J”

!Select a stitch and attach presser foot “J”.

"Sew with the needle dropping slightly off

the edge of the fabric.

aNeedle drop position

Stitch Stitch name Presser

foot Applications

Stitch width

[mm (inch.)]

Stitch length

[mm (inch.)] Twin

needle

Auto. Manual Auto. Manual

Overcasting stitch Reinforced seaming of stretch

fabric 5.0

(3/16)

0.0 - 7.0

(0 - 9/32)

2.5

(3/32)

0.5 - 4.0

(1/32 - 3/16)

( J )

Overcasting stitch Reinforcing of medium stretch

fabric and heavyweight fabric,

decorative stitching

5.0

(3/16)

0.0 - 7.0

(0 - 9/32)

2.5

(3/32)

0.5 - 4.0

(1/32 - 3/16)

( J )

Overcasting stitch Reinforcement of stretch fabric

or decorative stitching 4.0

(3/16)

0.0 - 7.0

(0 - 1/4)

4.0

(3/16)

1.0 - 4.0

(1/16 - 3/16)

( J )

Overcasting stitch Stretch knit seam 5.0

(3/16)

0.0 - 7.0

(0 - 1/4)

4.0

(3/16)

1.0 - 4.0

(1/16 - 3/16) NO

Single diamond

overcast

Reinforcement and seaming

stretch fabric

6.0

(15/

64)

1.0 - 7.0

(1/16 - 1/4)

3.0

(1/8)

1.0 - 4.0

(1/16 - 3/16)

( J )

Single diamond

overcast

Reinforcement of stretch fabric 6.0

(15/

64)

1.0 - 7.0

(1/16 - 1/4)

1.8

(1/16)

1.0 - 4.0

(1/16 - 3/16)

( J )

SEWING THE STITCHES

Utility Stitches

■Overcasting Using the Optional Side Cutter

By using the side cutter, you can do overcasting while cutting the fabric.

!Follow the steps on page 34 to remove the

presser foot.

"Position the fork on the side cutter’s

operating lever onto the needle clamp

screw.

aNeedle clamp screw

bOperating lever

#Position the side cutter so that the side

cutter pin is aligned with the notch in the

presser foot holder, and then lower the

presser foot.

aNotch in presser foot holder

bPin

!The side cutter is attached.

CAUTION

• Make sure to only select one of the stitches listed below. Using another stitch may cause the needle to hit

the presser foot and break, possibly causing injury.

Memo

Thread the needle manually when using the side cutter, or only attach the side cutter after threading the

needle using the “Automatic Threading” button.

Stitch Stitch name Presser

foot Applications

Stitch width

[mm (inch.)]

Stitch length

[mm (inch.)] Twin

needle

Auto. Manual Auto. Manual

With side cutter Straight stitch while cutting

fabrics 0.0

(0)

0.0 - 2.5

(0 - 3/32)

2.5

(3/32)

0.2 - 5.0

(1/64 - 3/16) NO

With side cutter Zigzag stitch while cutting fabrics 3.5

(1/8)

3.5 - 5.0

(1/8 - 3/16)

1.4

(1/16)

0.0 - 4.0

(0 - 3/16) NO

With side cutter Overcasting stitch while cutting

fabrics 3.5

(1/8)

3.5 - 5.0

(1/8 - 3/16)

2.0

(1/16)

1.0 - 4.0

(1/16 - 3/16) NO

With side cutter Overcasting stitch while cutting

fabrics 5.0

(3/16)

3.5 - 5.0

(1/8 - 3/16)

2.5

(3/32)

1.0 - 4.0

(1/16 - 3/16) NO

With side cutter Overcasting stitch while cutting

fabrics 5.0

(3/16)

3.5 - 5.0

(1/8 - 3/16)

2.5

(3/32)

1.0 - 4.0

(1/16 - 3/16) NO

Memo

Make sure that the fork of the operating lever

is set onto the needle clamp screw firmly.

SEWING THE STITCHES

$Select a stitch.

%Make a cut of approximately 20 mm

(approx. 3/4 inch) in the fabric.

a20 mm (approx. 3/4 inch)

&Position the fabric so that the right side of

the cut is on top of the guide plate and the

left side of the cut is underneath the presser

foot.

aGuide plate (lower knife)

bPresser foot

'Thread the needle manually and pull out a

long section of the upper thread. Pass it

below the presser foot and pull it out in the

fabric feed direction.

aPresser foot

bUpper thread

(Start sewing.

!A seam allowance is cut while the stitching is sewn.

■When Sewing Straight Stitches While

Using the Side Cutter

The seam margin should be approximately 5 mm

(approx. 3/16 inch).

aSeam margin

Note

If the width has been adjusted, turn the hand-

wheel by hand to check that the needle does

not touch the side cutter. If the needle touches

the side cutter, it might cause the needle to

break.

Memo

• The fabric will not be cut if the whole fabric is

simply spread out underneath the presser

foot guide plate. Set the fabric as explained

in step

from the previous section, and

then start sewing.

• One layer of 13 oz. denim can be cut.

• Clean the side cutter after use to avoid hav-

ing dust and scraps of thread build up on it.

• Add a small amount of oil as required to the

cutting edge of the cutter.

SEWING THE STITCHES

Utility Stitches

Quilting

You can make beautiful quilts quickly and easily with this machine. When making a quilt, you will find it

convenient to use the knee lifter and foot controller to free your hands for other tasks (see “Using the Foot

Controller” on page 41 and /or see “Using the Knee Lifter” on page 48).

If there is a “P” or “Q” at the bottom of the key display, the indicated stitch is intended for quilting.

Pattern Name of pattern

Type of

presser

foot

Use

Stitch width

[mm (inch.)]

Stitch length [mm

(inch.)]

Twin

needle

possibility

Auto. Manual Auto. Manual

Piecing stitch (Right) Piecework/patchwork

6.5 mm (approx. 1/4 inch) right

seam allowance

5.5

(7/32)

0.0 - 7.0

(0 - 1/4)

2.0

(1/16)

0.2 - 5.0

(1/64 - 3/16) NO

Piecing stitch

(Middle)

Piecework/patchwork

——2.0

(1/16)

0.2 - 5.0

(1/64 - 3/16) NO

Piecing stitch (Left) Piecework/patchwork

6.5 mm (approx. 1/4 inch) left

seam allowance

1.5

(1/16)

0.0 - 7.0

(0 - 1/4)

2.0

(1/16)

0.2 - 5.0

(1/64 - 3/16) NO

Hand-look quilting Quilting stitch made to look like

hand quilting stitch 0.0

(0)

0.0 - 7.0

(0 - 1/4)

2.5

(3/32)

1.0 - 4.0

(1/16 - 3/16) NO

Quilting appliqué

zigzag stitch

Zigzag stitch for quilting and

sewing on appliqué quilt pieces 3.5

(1/8)

0.0 - 7.0

(0 - 1/4)

1.4

(1/16)

0.0 - 4.0

(0 - 3/16) NO

Quilting appliqué

stitch

Quilting stitch for invisible

appliqué or attaching binding 1.5

(1/16)

0.5 - 5.0

(1/64 - 3/16)

1.8

(1/16)

1.0 - 4.0

(1/16 - 3/16) NO

Quilting stippling Background quilting 7.0

(1/4)

1.0 - 7.0

(1/16 - 1/4)

1.6

(1/16)

1.0 - 4.0

(1/16 - 3/16) NO

SEWING THE STITCHES

■Piecing

Sewing two pieces of fabric together is called

piecing. When cutting pieces for quilt blocks, make

sure the seam allowance is 6.5 mm (approx.

1/4 inch).

!Select or and attach presser foot

“J”.

"Align the edge of the fabric with the edge of

the presser foot, and start sewing.

* To sew a 6.5 mm (approx. 1/4 inch) seam allowance

along the right edge of the presser foot with

selected, the width should be set to 5.5 mm (approx.

7/32 inch).

a6.5 mm (approx. 1/4 inch)

* To sew a 6.5 mm (approx. 1/4 inch) seam allowance

along the left edge of the presser foot with

selected, the width should be set to 1.5 mm (approx.

1/32 inch).

a6.5 mm (approx. 1/4 inch)

* To change the needle position, use or in

the width display.

■Quilting

Sewing together the quilt top, batting, and backing is

called quilting. You can sew the quilt with the

walking foot to keep the quilt top, batting, and

backing from sliding. The walking foot has a set of

feed dogs that move together with the feed dogs in

the needle plate during sewing.

For straight line quilting, use the walking foot and

the straight stitch needle plate. Always select a

straight stitch (middle needle position) when using

the straight stitch needle plate.

!Select , or .

"Attach the walking foot (see page 35).

#Place one hand on each side of the presser

foot to hold the fabric secure while sewing.

Memo

Using a straight stitch (middle needle position)

makes it easier to sew smoothly (see page

55).

Memo

• Sew at slow to medium speed.

• Do not sew in reverse or use stitches that

require side ways or reverse feeding.

Always check to be sure that your quilting

surface is securely basted before beginning

to sew. Specialized machine quilt needles

and threads are also available for machine

quilting.

SEWING THE STITCHES

Utility Stitches

■Appliqué

!Trace the pattern onto the appliqué fabric

and then cut around it, leaving a 3 to 5 mm

(approx. 1/8 to 3/16 inch) seam allowance.

aSeam allowance: 3 to 5 mm

(approx. 1/8 to 3/16 inch)

"Place a piece of thick paper or stabilizer cut

to the finished size of the appliqué design

onto the fabric, and then fold over the seam

margin using an iron. Clip curves when

necessary.

#Turn the appliqué over, and attach the thick

paper with basting pins or a basting stitch.

$Select and attach presser foot “J”.

%Use the quilting appliqué stitch to attach

the appliqué. Sew around the edge while

dropping the needle as close to the edge as

possible.

aNeedle drop position

You can use the appliqué technique to attach

appliqué designs like the three pictured below.

CAUTION

• Be careful that the needle does not strike a

basting pin during sewing. Striking a pin can

cause the needle to break, resulting in injury.

aDresden plate

bStained glass

cSunbonnet sue

SEWING THE STITCHES

■Quilting with Satin Stitches

Use the foot controller to sew with satin stitches. If

you set the speed control slide to control the stitch

width, you can make subtle changes in the stitch

width during sewing.

!Attach the foot controller (see page 41).

"Select and attach presser foot “J”.

#Press in the length display to shorten

the stitch length.

$Press to use the speed control slide

to control the stitch width.

%Set the width control to “ON”.

&Press .

!The display will return to the original screen.

'Start sewing

* You can adjust the stitch width during sewing by

moving the sewing speed controller. Slide the lever

to the left, and the stitch width becomes narrower.

Slide it to the right, the stitch width becomes wider.

The size of the width changes equally on both sides

of the middle needle position.

anarrower

bwider

Memo

The setting will vary according to the kind of

fabric and the thickness of the thread, but a

length of 0.3 to 0.5 mm (approx. 1/64 to

1/32 inch) is best for satin stitches.

Memo

You can use the speed control slide to adjust

the stitch width. Use the foot controller to

adjust the sewing speed.

Rough sketch (line)

SEWING THE STITCHES

Utility Stitches

■Free-motion Quilting

With free-motion quilting, the feed dogs can be

lowered (using the feed dog position switch) so that

the fabric can be moved freely in any direction.

The quilting foot is needed for free-motion quilting.

We recommend attaching the foot controller and

sewing at a consistent speed.

!Select .

"Remove the presser foot holder (see page

35).

#Align the quilting foot with the lower-left

side of the presser bar.

$Hold the quilting foot in place with your

right hand, and then tighten the presser foot

holder screw using the screwdriver in your

left hand.

aPin on quilting foot

bPresser foot holder screw

cNeedle clamp screw

%Lower the feed dog position switch, located

at the rear of the base of the machine, to

aRear of machine

bFeed dog position switch

(as seen from the rear of the machine)

cUp

dDown

&Use both hands to stretch the fabric taut,

and then move the fabric at a regular pace

in order to sew uniform stitches roughly

2.0-2.5 mm (approx. 1/16 - 3/32 inch) in

length.

aStitch

!Reinforcement stitches are sewn at the beginning

and end of sewing.

'After sewing is finished, raise the feed dog

position switch to to raise the feed

dogs.

Memo

In order to sew a balanced stitch, it may be

necessary to lower the upper thread tension.

Memo

The pin on the quilting foot should be posi-

tioned over the needle clamp screw.

CAUTION

• Be sure to securely tighten the screws with the

screwdriver. Otherwise, the needle may touch

the presser foot, causing it to bend or break.

Memo

Normally, the feed dog position switch is in the

up position.

SEWING THE STITCHES

Blind Hem Stitches

Select from these stitches to sew the hems or cuffs of dresses, blouses, pants, or skirts.

!Select a stitch.

"Place the fabric wrong side up, and fold and

baste the fabric.

a5 mm (approx. 3/16 inch)

bBasting stitches

cWrong side of fabric

#Fold the fabric again.

a5 mm (approx. 3/16 inch)

bWrong side of fabric

cBasting stitches

$Attach blind hem stitch foot “R”, and lower

the presser foot. Position the fabric so the

folded edge touches the guide of the presser

foot.

aGuide

bFold

%Sew the fabric, keeping the folded edge in

contact with the presser foot.

aNeedle position

Stitch Stitch name Presser

foot Applications

Stitch width

[mm (inch.)]

Stitch length

[mm (inch.)] Twin

needle

Auto. Manual Auto. Manual

Blind hem stitch Hemming woven fabrics 0.0

(0) 3# - ! 3 2.0

(1/16)

1.0 - 3.5

(1/16 - 1/8) NO

Blind hem stitch

stretch

Hemming stretch fabric 0.0

(0) 3# - ! 3 2.0

(1/16)

1.0 - 3.5

(1/16 - 1/8) NO

SEWING THE STITCHES

Utility Stitches

&Remove the basting stitches and turn the

fabric over.

aWrong side of fabric

bRight side of fabric

■If the Needle does not Catch the

Fold

Adjust the width so that the needle slightly catches

the fold by pressing in the width display.

■If the Needle Catches Too Much of

the Fold

Adjust the width so that the needle slightly catches

the fold by pressing in the width display.

Appliqué

!Use a temporary spray adhesive, fabric glue

or a basting stitch to attach the appliqué to

the fabric.

* This will keep the fabric from moving during

sewing.

aAppliqué

bFabric glue

"Select or .

* Adjust the stitch length and width to correspond to

the appliqué shape, size, and quality of material (see

page 44).

#Attach presser foot “J”. Check that the

needle drops slightly off the edge of the

appliqué, then start sewing.

aAppliqué material

aNeedle drop position

Memo

Blind hem stitches cannot be sewn if the left

needle drop point does not catch the fold. If

the needle catches too much of the fold, the

fabric cannot be unfolded and the seam

appearing on the right side of the fabric will be

very large, leaving an unattractive finish. If you

experience either of these cases, follow the

instructions below to solve the problem.

a b

Memo

For details on each stitch, refer to the

“STITCH SETTING CHART” at the end of this

manual.

SEWING THE STITCHES

■Sewing Sharp Curves

Stop the machine with the needle in the fabric

outside the appliqué. Raise the presser foot and turn

the fabric a little bit at a time while sewing for an

attractive finish to the seam.

Shelltuck Stitches

Shelltuck stitches give an attractive appearance to

shells along the curve of a collar. This stitch

pattern can be used for edging the neckline or

sleeves of dresses and blouses.

!Select .

"Increase the upper thread tension for an

attractive scallop finish to the shelltuck

stitches (see page 45).

#To make rows of shell tuck stitches, fold the

fabric in half along the bias.

$Attach presser foot “J”. Set the needle drop

point slightly off the edge of the fabric, and

start sewing.

aNeedle drop position

%Unfold the fabric, and iron the tucks to one

side.

Memo

Placing a lightweight tear away stabilizer

beneath the stitching area will improve the

stitch placement along the edge of the appli-

qué fabric.

Memo

For details on each stitch, refer to the

“STITCH SETTING CHART” at the end of this

manual.

Memo

If the upper thread tension is too weak, the

shelltuck stitches will not scallop.

Memo

Use a thin fabric.

Memo

To make shell tucks at the edge of a collar or

neckline, follow the pattern’s instructions and

then use this stitch to make a decorative finish

on the collar or neckline.

SEWING THE STITCHES

Utility Stitches

Scallop Stitches

This wave-shaped running stitch is called the

scallop stitch. Use this stitch to decorate the edges

of blouse collars and handkerchiefs or use it as a

hem accent.

!Select .

"Attach presser foot “N”. Sew scallop

stitches along the edge of the fabric.

* Do not sew directly on the edge of the fabric.

#Trim along the seam, making sure not to cut

the stitches.

Top Stitching

For a decorative look called “Crazy Quilting”, the

following stitches can be sewn on top of a pressed

seam allowance.

!Select a straight stitch and attach presser

foot “J”.

"With the right sides facing each other, sew

two pieces of fabric together, and then

press open the seam allowance.

aStraight stitch

bSeam margins

c6.5 mm (approx. 1/4 inch)

dWrong side

#Select a stitch for top stitching.

$Place the fabric right side up in the

machine, and center the presser foot over

the seam when sewing.

aRight side of fabric

Memo

A temporary spray adhesive may be neces-

sary for lightweight fabrics. Test sew

the fabric before sewing a project.

Memo

For details on each stitch, refer to the

“STITCH SETTING CHART” at the end of this

manual.

Memo

Use a seam sealant to secure the edges of the

scallop stitches.

SEWING THE STITCHES

Smocking Stitches

Use smocking stitches for decorative sewing on

clothes, etc.

!Select a straight stitch and attach presser

foot “J”.

"Set the stitch length to 4.0 mm (approx.

3/16 inch) and loosen the upper thread

tension to approximately 2.0 (See pages 44

through 45).

#Pull the bobbin and upper threads out by

50 mm (approx. 1-15/16 inches).

$Sew the seams, leaving approximately

10 mm (approx. 3/8 inch) between the

seams, then trim excess thread, leaving

50 mm (approx. 1-15/16 inches).

aApproximately 10 mm (approx. 3/8 inch)

%Pull the bobbin threads to obtain the

desired amount of gather, and then smooth

the gathers by ironing them.

&Select or .

'Sew the spaces between the straight seams.

(Pull out the straight stitch threads.

Fagoting

When there is a space between two fabrics with

thread sewn over the space to join the fabrics

together, it is called fagoting. Use this stitch when

sewing blouses or children’s clothes.

!Baste two pieces of fabric onto thin paper,

leaving a space of 4 mm (approx. 3/16 inch)

between the fabrics.

a4 mm (approx. 3/16 inch)

bPaper

cBasting stitches

"Select or .

Memo

For details on each stitch, refer to the

“STITCH SETTING CHART” at the end of this

manual.

Memo

For details on each stitch, refer to the

“STITCH SETTING CHART” at the end of this

manual.

SEWING THE STITCHES

Utility Stitches

#Attach presser foot “J”. Align the center of

the presser foot with the middle of the

space between the fabrics and begin

sewing.

aBasting stitches

$When sewing is finished, gently tear the

paper away.

Tape or Elastic Attaching

!Select a straight stitch and attach presser

foot “J”.

"Set the stitch length to 4.0 mm (approx.

3/16 inch), and loosen the upper thread

tension to 2.0 (See pages 44 through 45).

#Sew two rows of straight stitches on the

right side of the fabric, then pull the bobbin

thread to create the necessary gather.

$Place the tape over the gather, and hold it

in place with basting pins.

aTape

%Select or .

&Sew over the tape (or elastic).

'Pull out the straight stitch threads.

Memo

Use a thick thread.

Memo

Be sure that neither automatic reinforcement

nor automatic thread cutting is

selected.

Memo

Before sewing the straight stitch, rotate the

handwheel and pull up the bobbin thread.

Holding the top and bobbin thread, pull a

length of thread out from the rear of the

machine. (Be sure that the presser foot is

raised.)

Memo

For details on each stitch, refer to the

“STITCH SETTING CHART” at the end of this

manual.

CAUTION

Be sure the needle does not strike a basting pin, or

any other objects, during sewing. The thread

could tangle or the needle could break, causing

injury.

SEWING THE STITCHES

Heirloom

■Hemstitching (1) (Daisy Stitch)

Use for sewing tablecloths, decorative hems, and

decorative stitching on shirt fronts.

!Insert a type 130/705H, size 100/16 Wing

needle.

"Select a stitch and attach presser foot “N”.

* Select any stitch between 3-01 and 3-25.

#Start sewing.

Example: Illustration of finished product

■Hemstitching (2) (Drawn Work)

!Pull out several threads from one area on a

piece of fabric to open the area.

* Pull out 5 or 6 threads to leave a 3 mm

(approx. 1/8 inch) area open.

"Select .

#Attach presser foot “N”. With the right side

of the fabric facing up, sew one edge of the

open area.

Memo

Use a light to medium weight homespun fabric

with a little stiffness.

CAUTION

• The “Automatic Threading” button cannot be

used. Thread the wing needle by hand, from

front to back. Using the “Automatic

Threading” button may result in damage to the

machine.

• A more attractive finish can be obtained if you

use a “130/705H Wing” needle when sewing

these patterns. If using a wing needle and the

stitch width has been set manually, check that

the needle will not touch the presser foot by

carefully rotating the handwheel before

starting sewing.

Memo

• For details on each stitch, refer to the

“STITCH SETTING CHART” at the end of

this manual.

Memo

Loosely woven fabrics work best for this.

Memo

For details on each stitch, refer to the

“STITCH SETTING CHART” at the end of this

manual.

SEWING THE STITCHES

Utility Stitches

$Press to create a mirror image of the

stitch.

%Sew the opposite side to keep the stitch

symmetrical.

■Hemstitching (3)

!Pull out several threads from both sides of

the 4 mm (approx. 3/16 inch) area which

are not yet open.

* Pull out four threads, leave five threads, and then

pull out four threads. The width of five threads is

approximately 4 mm (approx. 3/16 inch) or less.

aApprox. 4 mm (approx. 3/16 inch) or less

bFour threads (pull out)

cFive threads (leave)

"Select .

#Sew the decorative stitch in the center of

the five threads created above.

Memo

For details on each stitch, refer to the

“STITCH SETTING CHART” at the end of this

manual.

Memo

A wing needle can be used for Hemstitching

(3).

SEWING THE STITCHES

Utility Stitches

One-step buttonholes are sewn from the front of the presser foot to the back, as shown below.

aReinforcement stitching

!Select a buttonhole stitch, and attach

buttonhole foot “A”.

"Mark the position and length of the

buttonhole on the fabric.

#Pull out the button holder plate on the

presser foot, and insert the button that will

be put through the buttonhole. Then tighten

the button holder plate around the button.

aButton holder plate

Memo

The maximum buttonhole length is about

28 mm (approx. 1-1/16 inches) (diameter +

thickness of the button).

Memo

The size of the buttonhole is decided by the

button holder plate holding the button.

SEWING THE STITCHES

$Align the presser foot with the mark on the

fabric, and lower the presser foot.

aMark on the fabric

bMarks on the presser foot

%Lower the buttonhole lever so that it is

positioned behind the metal bracket on the

buttonhole foot.

aButtonhole lever

aMetal bracket

&Gently hold the end of the upper thread,

and then start sewing.

* Feed the fabric carefully by hand while the

buttonhole is sewn.

!Once sewing is completed, the machine

automatically sews reinforcement stitches, and then

stops.

'Insert a pin along the inside of one of the

bar tacks, and then insert the seam ripper

into the center of the buttonhole and cut

towards the pin.

aBasting pin

bSeam ripper

Note

• Pass the thread underneath the presser

foot.

• Slide the outside frame of the buttonhole

foot backward as far as possible as shown in

the illustration, making sure that there is no

gap behind the part of the foot marked “A”. If

the buttonhole foot is not slid back as far as

possible, the buttonhole will not be sewn at

the correct size.

Memo

If automatic thread cutting is turned on before

you start sewing, both threads are automati-

cally cut after the reinforcement stitches are

sewn. If the fabric does not feed (for example,

because it is too thick), increase the stitch

length setting.

CAUTION

When using the seam ripper to open the

buttonhole, do not put your hand or finger in the

path of the ripper. The ripper may slip and cause

injury.

SEWING THE STITCHES

Utility Stitches

■Sewing Stretch Fabrics

When sewing on stretch fabric with or ,

sew the buttonhole stitches over a gimp thread.

!Hook the gimp thread onto the back of

presser foot “A”. Insert the ends into the

grooves at the front of the presser foot, and

then temporarily tie them there.

aUpper thread

"Lower the presser foot and start sewing.

#Once sewing is completed, gently pull the

gimp thread to remove any slack, and trim

off any excess.

■Odd Shaped Buttons/Buttons that do

not Fit into the Button Holder Plate

Use the markings on the presser foot scale to set the

size of the buttonhole. One mark on the presser foot

scale equals 5 mm (approx. 3/16 inch).

Add the button diameter and thickness together, and

then set the plate at the calculated value.

aPresser foot scale

bButton holder plate

cCompleted measurement of diameter + thickness

d5 mm (approx. 3/16 inch)

Memo

For keyhole buttonholes, use the eyelet punch

to make a hole in the rounded end of the but-

tonhole. Then insert a pin along the inside of

one of the bar tacks, insert a seam ripper into

the hole made with the eyelet punch, and cut

towards the pin.

aEyelet punch

bBasting pin

Memo

Set the width of the satin stitches to the width

of the gimp thread, and set the buttonhole

width to be 2-3 times the width of the gimp

thread.

Memo

After using the seam ripper to cut open the

threads over the buttonhole, trim off the

threads.

Memo

For example, for a button with a diameter of

15 mm (approx. 9/16 inch) and a thickness of

10 mm (approx. 3/8 inch), the scale should be

set at 25 mm (approx. 1 inch).

a10 mm (approx. 3/8 inch)

b15 mm (approx. 9/16 inch)

SEWING THE STITCHES

Four-step Buttonholes

You can sew 4-step buttonholes using the following 4 stitches together. You can sew any desired length

for the buttonhole when using 4-step buttonholes. 4-step buttonholes are a good option when attaching

oversize buttons.

Four-step buttonholes are sewn as shown below.

!Mark the position and length of the

buttonhole on the fabric. "Attach monogramming foot “N”, and select

stitch to sew down the left side of the

buttonhole.

Note

When changing the stitch settings for the left side of the buttonhole, make sure that all setting should be

changed to match.

Stitch Stitch name Presser

foot Applications

Stitch width

[mm (inch.)]

Stitch length

[mm (inch.)] Twin

needle

Auto. Manual Auto. Manual

4 step buttonhole 1 Left side of 4 step buttonhole

(Forward stitching) 5.0

(7/32)

1.5 - 7.0

(1/16 - 1/4)

0.4

(1/64)

0.2 - 1.0

(1/64 - 1/16) NO

4 step buttonhole 2 Bar tack of 4 step buttonhole 5.0

(7/32)

1.5 - 7.0

(1/16 - 1/4)

0.4

(1/64)

0.2 - 1.0

(1/64 - 1/16) NO

4 step buttonhole 3 Right side of 4 step buttonhole

(Reverse stitching) 5.0

(7/32)

1.5 - 7.0

(1/16 - 1/4)

0.4

(1/64)

0.2 - 1.0

(1/64 - 1/16) NO

4 step buttonhole 4 Bar tack of 4 step buttonhole 5.0

(7/32)

1.5 - 7.0

(1/16 - 1/4)

0.4

(1/64)

0.2 - 1.0

(1/64 - 1/16) NO

SEWING THE STITCHES

Utility Stitches

#Press the “Start/Stop” button to start

sewing.

$Sew the desired length for the buttonhole

and press the “Start/Stop” button again.

%Select stitch to sew the bar tack and

press the “Start/Stop” button.

!The machine will automatically stop after sewing

the bar tack.

&Select stitch to sew up the right side of

the buttonhole, and press the “Start/Stop”

button to begin sewing.

'Sew the right side of the buttonhole and

press the “Start/Stop” button again.

* Sew the right side of the buttonhole the same length

as the left.

(Select stitch to sew the bar tack and

then press the “Start/Stop” button.

!The machine will automatically sew the bar tack, tie

and stop when the bar tack is complete.

)Raise the presser foot and remove the

fabric.

*Refer to page 84 to open the buttonhole.

SEWING THE STITCHES

■Darning

Use darning stitches for mending and other applications.

Darning is performed by sewing from the front of the presser foot to the back as shown below.

aReinforcement stitches

!Select a stitch, and attach buttonhole foot

“A”.

"Set the scale to the desired length of the

darning.

aPresser foot scale

bCompleted length measurement

cWidth 7 mm (approx. 1/4 inch)

d5 mm (approx. 3/16 inch)

#Check that the needle drops at the desired

position and lower the presser foot, making

sure the upper thread passes underneath

the buttonhole foot.

Stitch Stitch name Presser

foot Applications

Stitch width

[mm (inch.)]

Stitch length

[mm (inch.)] Twin

needle

Auto. Manual Auto. Manual

Darning Darning of medium weight fabric 7.0

(1/4)

2.5 - 7.0

(3/32 - 1/4)

2.0

(1/16)

0.4 - 2.5

(1/64 - 1/16) NO

Darning Darning of heavyweight fabric 7.0

(1/4)

2.5 - 7.0

(3/32 - 1/4)

2.0

(1/16)

0.4 - 2.5

(1/64 - 1/16) NO

Memo

The maximum length for darning is 28 mm

(approx. 1-1/16 inches).

Note

• Pass the thread underneath the presser

foot.

• Set the presser foot so that there is no gap

behind the section marked with an “A” (the

shaded area in the illustration below). If

there is a gap, the size of the darning will not

be correct.

SEWING THE STITCHES

Utility Stitches

$Lower the buttonhole lever so that it is

positioned behind the metal bracket on the

buttonhole foot.

aButtonhole lever

aMetal bracket

%Gently hold the end of the upper thread,

and then press the “Start/Stop” button to

start the machine.

!Once sewing is completed, the machine

automatically sews reinforcement stitches, and then

stops.

Memo

If automatic thread cutting is turned on before

you start sewing, both threads are automati-

cally cut after the reinforcement stitches are

sewn. If the fabric does not feed (for example,

because it is too thick), increase the stitch

length setting.

SEWING THE STITCHES

Bar Tacks

Use bar tacks to reinforce areas that will be subject to strain, such as pocket corners.

!Select .

"Attach buttonhole foot “A” and set the

scale to the length of the bar tack you wish

to sew.

aPresser foot scale

bCompleted length measurement

c5 mm (approx. 3/16 inch)

#Set the fabric so that the pocket moves

towards you during sewing.

$Check the first needle drop point and lower

the presser foot.

a2 mm (approx. 1/16 inch)

Stitch Stitch name Presser

foot Applications

Stitch width

[mm (inch.)]

Stitch length

[mm (inch.)] Twin

needle

Auto. Manual Auto. Manual

Bar tack Reinforcement at opening of

pocket, etc. 2.0

(1/16)

1.0 - 3.0

(1/16 - 1/8)

0.4

(1/64)

0.3 - 1.0

(1/64 - 1/16) NO

Memo

Bar tacks can be between 5 mm (approx.

3/16 inch) and 28 mm (approx. 1-1/16 inches).

Bar tacks are usually between 5 mm (approx.

3/16 inch) and 10 mm (approx. 3/8 inch).

Note

• Pass the thread underneath the presser

foot.

• Slide the outside frame of the buttonhole

foot backward as far as possible as shown in

the illustration, making sure that there is no

gap behind the part of the foot marked “A”. If

the buttonhole foot is not slid back as far as

possible, the bar tack will not be sewn to the

correct size.

SEWING THE STITCHES

Utility Stitches

%Lower the buttonhole lever so that it is

positioned behind the metal bracket on the

buttonhole foot.

aMetal bracket

&Gently hold the end of the upper thread and

begin sewing.

!When sewing is completed, the machine will sew

reinforcement stitches and stop automatically.

■Bar Tacks on Thick Fabrics

Place a piece of folded fabric or cardboard beside

the fabric being sewn to level the buttonhole foot

and allow for easier feeding.

aPresser foot

bThick paper

Memo

If automatic thread cutting is turned on before

you start sewing, both threads are automati-

cally cut after the reinforcement stitches are

sewn. If the fabric does not feed (for example,

because it is too thick), increase the stitch

length setting.

SEWING THE STITCHES

Eyelet

Use this stitch for making belt holes and other similar applications.

aSelect or .

bUse in either the stitch width

display or the stitch length display to

choose the size of the eyelet.

aLarge 7 mm (approx. 1/4 inch)

bMedium 6 mm (approx. 15/64 inch)

cSmall 5 mm (approx. 3/16 inch)

cAttach monogramming foot “N”, then turn

the handwheel to check the needle drop

position.

aNeedle drop position

dLower the presser foot and start sewing.

→When sewing is finished, the machine sews

reinforcement stitches and stops automatically.

eUse the eyelet punch to make a hole in the

center of the stitching.

Stitch Stitch name Presser

foot Applications

Stitch width

[mm (inch.)]

Stitch length

[mm (inch.)] Twin

needle

Auto. Manual Auto. Manual

Eyelet For making eyelets, holes on

belts, etc. 7.0

(1/4)

7.0 6.0 5.0

(1/4 15/64 3/16)

7.0

(1/4)

7.0 6.0 5.0

(1/4 15/64 3/16) NO

Star eyelet For making star-shaped eyelets

on holes. ————NO

Note

Only one size is available for .

abc

(Actual size)

Note

If the stitch pattern comes out poorly, make

adjustments (see page 105).

SEWING THE STITCHES

Utility Stitches

Multi-directional Sewing

(Straight Stitch and Zigzag Stitch)

Use these stitch patterns to attach patches or

emblems to pant legs, shirt sleeves, etc.

!Remove the flat bed attachment to create

the free arm function.

"Select and attach monogramming foot

“N”.

#Set the needle in the fabric at the sewing

start point, and sew seam “1” as shown.

aStart Point

$Select and sew seam “2” as shown.

* The fabric will move sideways, so guide the fabric

by hand to keep sewing straight.

%Select and sew seam “3” as shown.

!The fabric feeds forward while stitching backward.

&Select and sew seam “4” as shown.

!The seam will be connected to the starting point of

seam 1.

Memo

Pass the free arm through a tubular piece of

fabric, and then sew in the order shown in the

illustration.

Memo

For details on each stitch, refer to the

“STITCH SETTING CHART” at the end of this

manual.

SEWING THE STITCHES

Utility Stitches

■Inserting a Side Zipper

Use for side zippers in skirts or dresses.

!Select .

"Attach presser foot “J” and sew straight

stitches up to the zipper opening. Change to

a basting stitch and sew to the top of the

fabric.

aReverse stitches

bWrong side of fabric

cBasting stitches

dEnd of zipper opening

#Press the seam allowance open and align

the folded hem along the teeth of the

zipper, while maintaining 3 mm (approx.

1/8 inch) of sewing space.

aZipper pull tab

bWrong side of fabric

cZipper teeth

dEnd of zipper opening

e3 mm (approx. 1/8 inch)

$Remove presser foot “J”.

%Align the right side of the pin in zipper foot

“I” with the presser foot holder, and attach

the presser foot.

aRight

bLeft

cNeedle drop position

CAUTION

Make sure the needle does not strike the zipper

during sewing. If the needle strikes the zipper, the

needle may break, leading to injury.

Note

• Make sure you sew using the middle needle

position.

CAUTION

When using zipper foot “I”, make sure the

straight stitch, middle needle position is selected.

Turn the handwheel to make sure the needle does

not strike the presser foot. If another stitch is

selected, the needle will strike the presser foot,

causing the needle to break and possibly causing

injury.

SEWING THE STITCHES

&Set the presser foot in the 3 mm (approx.

1/8 inch) margin.

'Starting from the end of the zipper opening,

sew to a point about 50 mm (approx.

2 inches) from the edge of the fabric, then

stop the machine.

(Pull down the zipper slider, then continue

sewing to the edge of the fabric.

a50 mm (approx. 2 inches)

b3 mm (approx. 1/8 inch)

)Close the zipper, turn the fabric over, and

sew a basting stitch.

aFront of the skirt (wrong side of fabric)

bBasting stitches

cFront of the skirt (right side of fabric)

dBack of the skirt (right side of fabric)

*Remove the presser foot, and reattach it so

that the left side of the pin is attached to the

presser foot holder.

* When sewing the left side of the zipper, the needle

should drop on the right side of the presser foot.

When sewing the right side of the zipper, the needle

should drop on the left side of the presser foot.

aRight

bLeft

cNeedle drop position

+Set the fabric so that the left edge of the

presser foot touches the edge of the zipper

teeth.

,Sew reverse stitches at the top of the

zipper, then continue sewing.

-Stop sewing about 50 mm (approx.

2 inches) from the edge of the fabric, leave

the needle in the fabric, and remove the

basting stitches.

.Open the zipper and sew the rest of the

seam.

aBasting stitches

b7 to 10 mm (approx. 1/4 inch to 3/8 inch)

cReverse stitches

d50 mm (approx. 2 inches)

CAUTION

Make sure the needle does not strike the zipper

during sewing. If the needle strikes the zipper, the

needle may break, leading to injury.

adbc

!"#$%&'!$

Character/

Decorative

Stitches

SELECTING STITCH PATTERNS...............................................................................................100

■Stitch Selection Screens ....................................................................................................................................... 101

Selecting Decorative Stitch Patterns/7mm Decorative Stitch Patterns/Satin Stitch Patterns/

7mm Satin Stitch Patterns/Cross Stitch/Utility Decorative Stitch Patterns .................................................................... 102

Alphabet Characters ...................................................................................................................................................... 102

■Deleting Characters............................................................................................................................................. 103

SEWING STITCH PATTERNS...................................................................................................104

Sewing Attractive Finishes ............................................................................................................................................. 104

Basic Sewing .................................................................................................................................................................. 104

Making Adjustments ...................................................................................................................................................... 105

EDITING STITCH PATTERNS ..................................................................................................107

■Key Functions ...................................................................................................................................................... 107

Changing the Size .......................................................................................................................................................... 108

Changing the Length (for 7mm Satin Stitch Patterns Only)............................................................................................ 109

Creating a Vertical Mirror Image................................................................................................................................... 109

Creating a Horizontal Mirror Image .............................................................................................................................. 109

Sewing a Pattern Continuously ...................................................................................................................................... 109

Changing Thread Density (for Satin Stitch Patterns Only) ............................................................................................. 110

Checking the Image ....................................................................................................................................................... 110

COMBINING STITCH PATTERNS ...........................................................................................112

Before Combining .......................................................................................................................................................... 112

Combining Various Stitch Patterns ................................................................................................................................ 112

Combining Large and Small Stitch Patterns ................................................................................................................... 114

Combining Horizontal Mirror Image Stitch Patterns ..................................................................................................... 114

Combining Stitch Patterns of Different Length .............................................................................................................. 115

Making Step Stitch Patterns (for 7mm Satin Stitch Patterns Only) ................................................................................. 116

■More Examples .................................................................................................................................................... 117

USING THE MEMORY FUNCTION.........................................................................................118

Stitch Data Precautions ................................................................................................................................................. 118

■Types of Stitch Data that can be Used................................................................................................................. 118

■Types of USB Devices/Media that can be Used ................................................................................................... 118

■Computers and Operating Systems with the Following Specifications can be Used ............................................ 118

■Precautions on Using the Computer to Create and Save Data ............................................................................. 118

■Trademarks.......................................................................................................................................................... 119

Saving Stitch Patterns in the Machine’s Memory ........................................................................................................... 120

■If the Memory is Full............................................................................................................................................ 120

Saving Stitch Patterns to USB Media (Commercially Available)..................................................................................... 122

Saving Stitch Patterns in the Computer.......................................................................................................................... 123

Retrieving Stitch Patterns from the Machine’s Memory ................................................................................................. 124

Recalling from USB Media............................................................................................................................................. 125

Recalling from the Computer......................................................................................................................................... 125

EDITING STITCH PATTERNS

Character/Decorative Stitches

107

EDITING STITCH PATTERNS

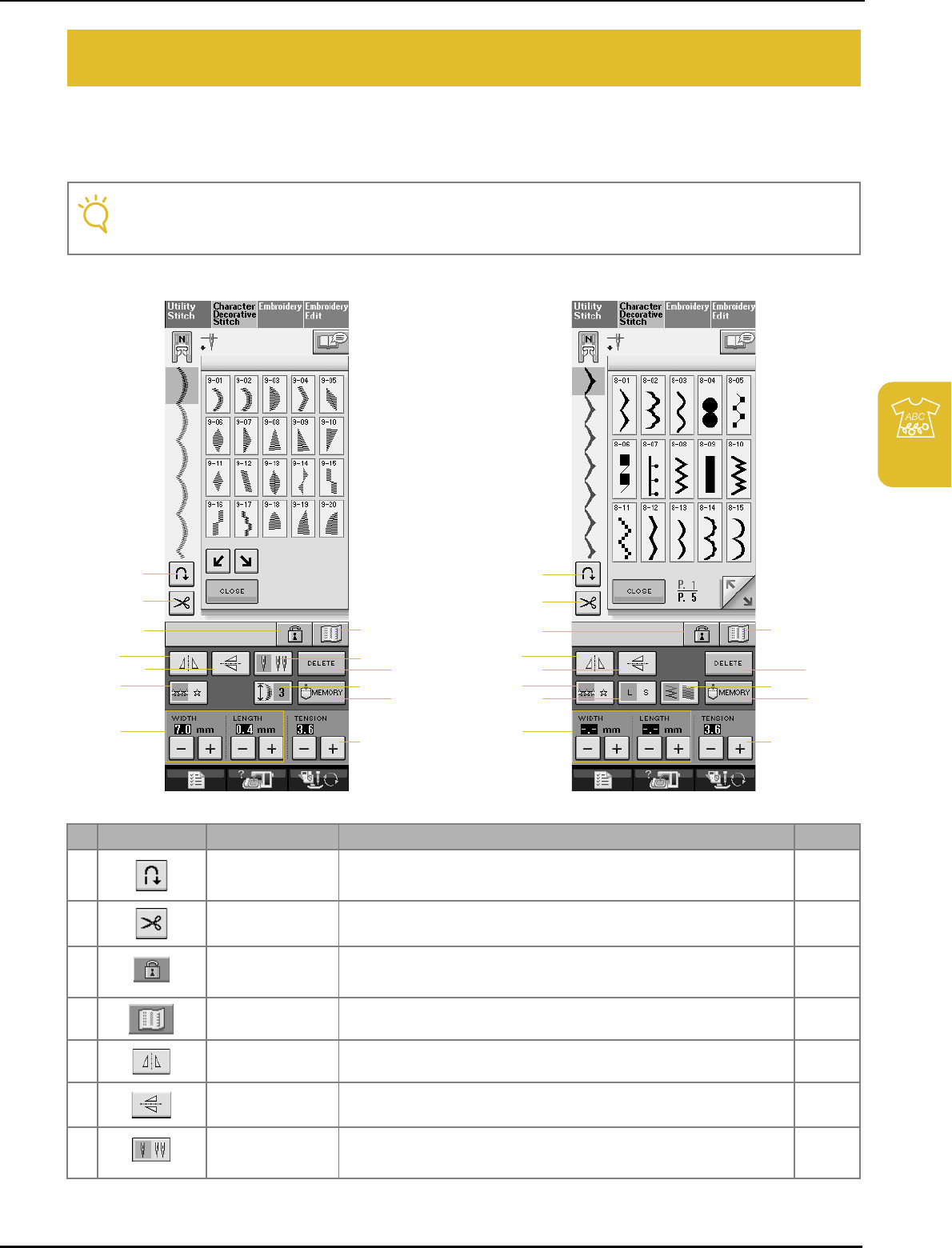

■Key Functions

You can create just the finish you want using the editing functions. Make patterns larger or smaller, make mirror

images, etc.

Note

• Some editing functions cannot be used with certain stitch patterns. Only the functions for the displayed

keys are available when a pattern is selected.

No. Display Key Name Explanation Page

aAutomatic

reinforcement stitch

key

Press this key to turn on the automatic reinforcement stitching mode. 46

bAutomatic thread

cutting key

Press this key to turn on the automatic thread cutting mode. 47

cScreen lock key Press this key to lock the screen. When the screen is locked, the various

settings, such as the stitch width and stitch length, are locked and cannot be

changed. Press this key again to unlock the settings.

dImage key Press this key to check large combination patterns. 110

eHorizontal mirror

image key

After selecting the stitch pattern, use this key to create a horizontal mirror image

of the stitch pattern.

109

fVertical mirror image

key

After selecting the stitch pattern, use this key to create a vertical mirror image of

the stitch pattern.

109

gNeedle mode

selection key

(Single/Double)

Press this key to choose single needle sewing or twin needle sewing. 31

USING THE MEMORY FUNCTION

118

USING THE MEMORY FUNCTION

Stitch Data Precautions

Observe the following precautions when using stitch data other than that created and saved in this

machine.

■Types of Stitch Data that can be Used

• Only .pmu stitch data files can be used with this machine. Using data other than that created using this

machine may cause the machine to malfunction.

■Types of USB Devices/Media that can be Used

Stitch data can be saved to or recalled from USB media. Use media that meets the following specifications.

• USB Floppy disk drive

• USB Flash drive (USB Flash memory)

Stitch data can be recalled only.

• USB CD-ROM, CD-R, CD-RW drives

You can also use the following types of USB media with the USB Memory Card Reader/Writer.

• Secure Digital (SD) Card

• CompactFlash

• Memory Stick

•Smart Media

• Multi Media Card (MMC)

• XD-Picture Card

• When a file folder is necessary to create, use a computer.

■Computers and Operating Systems with the Following Specifications can be

Used

• Compatible models:

IBM PC with a USB port as standard equipment

IBM PC-compatible computer equipped with a USB port as standard equipment

• Compatible operating systems:

Microsoft Windows 98SE/Me/2000/XP

(Windows 98SE requires a driver. Download the driver from our Web site (www.babylock.com). In addition,

only Windows 98 Second Edition can use the driver.).

■Precautions on Using the Computer to Create and Save Data

• If the file name of stitch data cannot be identified, for example, because the name contains special characters,

the file is not displayed. If this occurs, change the name of the file.

Note

• Some USB media may not be usable with this machine. Please visit our website for more details.

• USB hubs cannot be used with this machine. The machine will not recognize the above USB devices or

USB memory cards through a USB hub.

• The access lamp will begin blinking after inserting USB Devices/Media, and it will take about 5 to 6 sec-

onds to recognize the Devices/Media. (Time will differ depending on the USB Device/Media).

USING THE MEMORY FUNCTION

Character/Decorative Stitches

121

"Choose a stitch pattern to delete.

* Press so the pattern saved in that pocket

appears. If the entire saved stitch pattern is not

displayed, press to view the entire stitch

pattern.

* Press if you decide not to delete the stitch

pattern.

aPockets holding saved stitch patterns

#Press .

!A confirmation message appears.

$Press .

* If you decide not to delete the stitch pattern, press

!The machine deletes the stitch pattern, then

automatically saves the new stitch pattern.

USING THE MEMORY FUNCTION

124

$Select the stitch pattern’s .pmu file and

copy the file to the computer.

Retrieving Stitch Patterns from

the Machine’s Memory

!Press .

!The pocket selection screen appears.

"Choose a stitch pattern to retrieve.

* Press so the pattern saved in that pocket

appears. If the entire saved stitch pattern is not

displayed, press to view the entire stitch

pattern.

* Press to return to the original screen

without saving.

aPockets holding saved stitch patterns

#Press .

* Press to delete the stitch pattern.

!The selected stitch pattern is retrieved and the

sewing screen will be displayed.

Note

• Do not turn off the machine while the “Sav-

ing” screen is showing. You may lose the

data.

USING THE MEMORY FUNCTION

Character/Decorative Stitches

125

Recalling from USB Media

You can recall a specific stitch pattern from either

directly USB media or a folder in the USB media.

If the stitch pattern is under the folder, move down

layers of folders following a path to it.

!Insert the USB Media into the USB port

connector on the machine (see page 122).

"Press .

!Stich patterns and a folder in a top folder are

displayed.

#Press when there is a subfolder to

sort two or more stitch patterns to USB

media, the stitch pattern in the subfolder is

displayed.

* Press to return to the original screen

without recalling.

aFolder name

bStitch patterns in a top folder: “key” shows only the

first pattern over if the patterns is combined.

cPath

!The path shows the current holder at the top of the

list.

Stitch patterns and a folder in a subfolder are

displayed.

* Press to return to the previous folder.

$Press the key of the stitch pattern you want

to recall.

%Press .

* Press to delete the stitch pattern.

!The selected stitch pattern is recalled and the sewing

screen will be displayed.

USING THE MEMORY FUNCTION

126

Recalling from the Computer

!Plug the USB cable connector into the

corresponding USB connectors for the

computer and for the machine (see page

123).

"On the computer, open “My Computer”

then go to “Removable Disk”.

#Move/copy the pattern data to “Removable

Disk”.

!Stitch pattern data in “Removable Disk” is written to

the machine.

$Press .

!The stitch patterns in the computer are displayed on

the selection screen.

%Press the key of the stitch pattern you want

to recall.

* Press to return to the original screen

without recalling.

&Press .

* Press to delete the stitch pattern.

!The selected stitch pattern is recalled and the sewing

screen will be displayed.

Note

• While data is being written, do not discon-

nect the USB cable.

• Do not create folders within “Removable

Disk”. Since folders are not displayed, stitch

pattern data within folders cannot be

recalled.

Note

• The pattern recalled from the computer is

only temporarily written to the machine. It is

erased from the machine when the machine

is turned off. If you wish to keep the stitch

pattern, store it in the machine (see “Saving

Stitch Patterns in the Machine’s Memory” on

page 122).

BEFORE EMBROIDERING

Embroidery

131

$Turn the main power to ON.

!The following message will appear.

%Press .

!The carriage will move to the initialization position.

The message will disappear after 15 seconds or press

to move to the next step.

■Removing the Embroidery Unit

!Press either or , then press

!The carriage will move to the removal position.

"Turn the main power to OFF.

#Hold down the release button, and pull the

embroidery unit away from the machine.

aRelease button

Note

• A confirmation message to lower the frame-

securing lever after the carriage moves to its

initial position.

CAUTION

• Always remove the embroidery frame before

pressing . Otherwise, the frame may

strike the embroidery foot, and possibly cause

injury.

• The embroidery unit will not fit in the storage

case if this step is not done.

Note

• Be sure to turn the main power to OFF.

Otherwise, the machine may be damaged.

CAUTION

Do not carry the embroidery unit by holding the

release button compartment.

SELECTING PATTERNS

134

Selecting Embroidery Patterns/

Floral alphabet Patterns/Baby

Lock Exclusive Embroidery

Designs

!Select the category of the pattern you want

to embroider.

"Press the key of the pattern you want to

embroider.

* Press to view the next page.

* Press to view the previous page.

!The selected pattern is displayed.

#Press to create a mirror image of the

pattern as needed.

* If you make a mistake selecting the pattern, press the

key of the pattern you want to embroider.

$ Press .

!The sewing screen is displayed.

%Proceed to see “VIEWING THE SEWING

SCREEN” on page 138 to embroider the

pattern.

* To return to the previous screen to select another

pattern, press .

PREPARING THE FABRIC

140

PREPARING THE FABRIC

Attaching Iron-on Stabilizers

(backing) to the Fabric

For best results in your embroidery projects,

always use stabilizer material for embroidery.

Follow the package instructions for the stabilizer

being used.

When using fabrics that cannot be ironed (such as

towel or fabrics that have loops which expand

when ironed) or in places where ironing is

difficult, position the stabilizer material under the

fabric without fusing it, then position the fabric

and stabilizer in the embroidery frame, or check

with your authorized retailer for the correct

stabilizer to use.

!Use a piece of stabilizer which is larger

than the embroidery frame being used.

aSize of the embroidery frame

bIron-on stabilizer (backing)

"Iron the iron-on stabilizer material to the

wrong side of the fabric.

aFusible side of stabilizer

bFabric (wrong side)

CAUTION

• Use fabrics with a thickness of less than 3 mm (approx. 1/8 inch). Using fabrics thicker than 3 mm

(approx. 1/8 inch) may cause the needle to break.

• When using layers with thicker batting etc., you can sew more attractive embroidery by adjusting the

embroidery presser foot height in the embroidery settings screen (see below).

• In the case of thick terry cloth towels we recommend that you place a piece of water soluble stabilizer on

the top surface of the towel. This will help to reduce the nap of the toweling and result in more attractive

embroidery.

Note

Press , and use and in the EMBROIDERY FOOT HEIGHT display in the embroidery

settings screen to adjust the presser foot height.

To increase the space between the presser foot and the needle plate, set the embroidery foot height to a

larger number. 1.5mm setting is used for most embroidery.

CAUTION

• Always use a stabilizer material for embroidery

when sewing stretch fabrics, lightweight

fabrics, fabrics with a coarse weave, or fabrics

which cause pattern shrinkage. Otherwise, the

needle may break and cause injury. Not using a

stabilizer material may result in a poor finish

to your project.

Memo

• When embroidering on thin fabrics such as

organdy or lawn, or on napped fabrics such

as towel or corduroy, use water soluble sta-

bilizer (sold separately) for best results. The

water soluble stabilizer material will dissolve

completely in water, giving the project a

more attractive finish.
