Cable Replacement Kit
CFC Series
Owner’s Manual
for CFP Series Carbon Fiber Boom Poles
Introduction
Thank you for choosing Auray.
The Auray CFC replacement kit provides a
replacement cable for the Auray CFP carbon ber
boom pole. Auray’s solderless design provides a
fast and easy solution for cable replacement.
The high-quality coiled cable features a right-angle
XLR connector manufactured by Neutri, and a
TA3 (mini XLR) connector manufactured by Rean®
(a registered trademark of Neutri) for secure
locking connections and awless signal transfer.
This cable also features Auray’s unique strain relief
system that absorbs tension and protects the cable
from damage at the edge of the tip exit and at the
T3 connector. The included hex key and a small
slotted screwdriver (not included) are the only tools
needed for this cable replacement procedure that
will assure long-lasting and trouble-free operation
of your CFP boom pole.

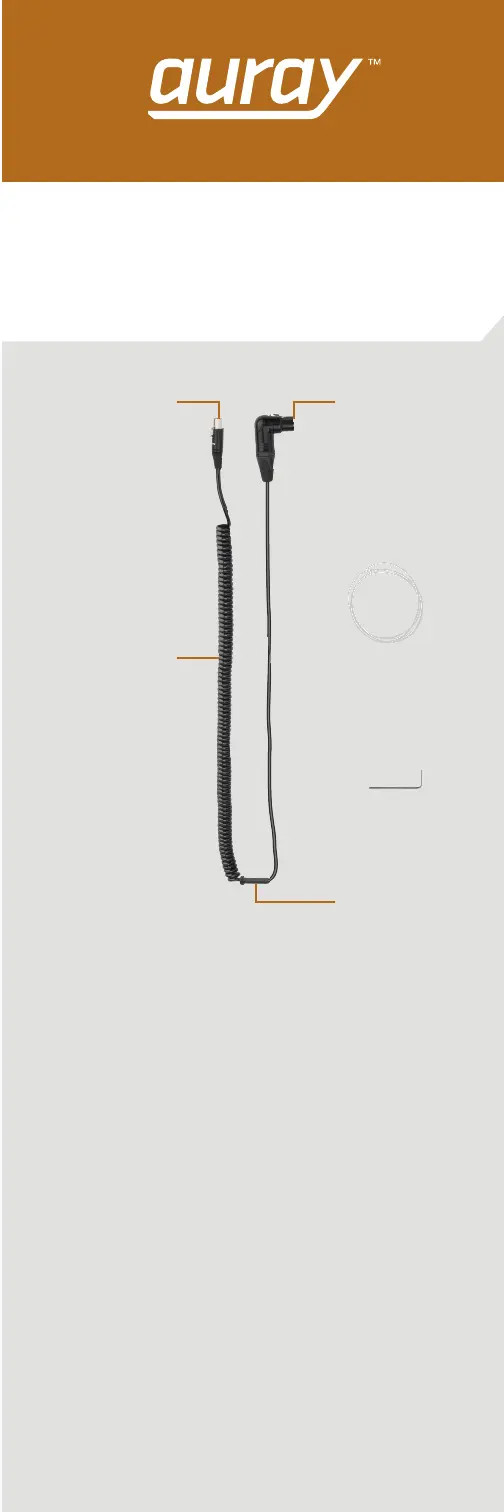

Right-angle
XLR connector
TA3 (mini XLR)
connector
Coiled XLR
cable
Tip strain relief
Nylon line
1.5 mm hex
key
Replacing the Cable Boom Pole with
Bottom Exit XLR
Remove the old cable
1. Use the hex key to
loosen the set screw
on the tip. 1
2. Remove the tip by
unscrewing it. 2
3. Lift the cable and
strain relief out of the
tip exit slot. 3
Tip: Before
proceeding, push a
small length of cable
into the tube from the
tip of the pole. This
will give you enough
slack to complete the
following steps.
4. Unscrew the bottom
housing from the base
of the boom pole. 4
5. Unscrew the plastic
TA3 strain relief. 5
6. Disconnect the TA3
connector by pressing
on the locking tab and
gently removing the
connector from the
mount.
Note: The TA3
connector should
easily disconnect. Do
not force or pull on the
cable to disconnect
it. Doing so could
damage the housing
or the connector.
7. Use a small slotted
screwdriver to reach
inside the strain
relief and depress the
locking tab of the TA3
connector. 6 With the
locking tab depressed,
you can slide the
strain relief over the
TA3 connector and
oof the cable. Set
the strain relief piece
aside.
Alternative: Use a wire cutter to snip the cable
at the base of the TA3 connector. Remove the
strain relief, and set it aside.
Important: Once you have performed this step,
the cable will be unusable. If you plan on using
the cable again at a later point, don’t proceed
with this alternative step.
8. Remove the cable by pulling it out from the
top of the pole.
5
6
Instructions
1
2
3
4
Install the replacement cable
1. Holding the boom
pole upright, insert
the replacement
cable into the top of
the boom pole, 1
and snake it through
the tubing until
the TA3 connector
is exposed at the
bottom of the pole. 2
Note: If the cable
does not move
smoothly through
the tubing, use the
included nylon line:
tie the line to the TA3
connector and drop
it through the tubing
from the top. 3
Pull
the string from the
bottom of the boom
pole to snake the
cable through the
tubing. Make sure
to remove the line
before continuing.
2. Fit the narrow side of
the strain relief over
the TA3 connector,
and push it past the
TA3 connector’s
locking tab. 4
3. Plug the TA3
connector to the
bottom housing
by inserting it into
the TA3 mount and
pushing in until it
clicks.
Note: When properly
aligned, the TA3
connector will easily
slide into place. Do
not try to force the connector into the mount.
Doing so could damage the connector or the
mount.
4. Screw the threaded end of the strain relief onto
the threaded fitting on the bottom housing. 5
5. Screw the bottom housing onto the end of the
boom pole. 6
6. Place the strain relief of the cable into the tip
exit slot.
7. Replace the tip by screwing it on, and secure it
by tightening the set screw with the hex key.
2
4
1
3
5
6
