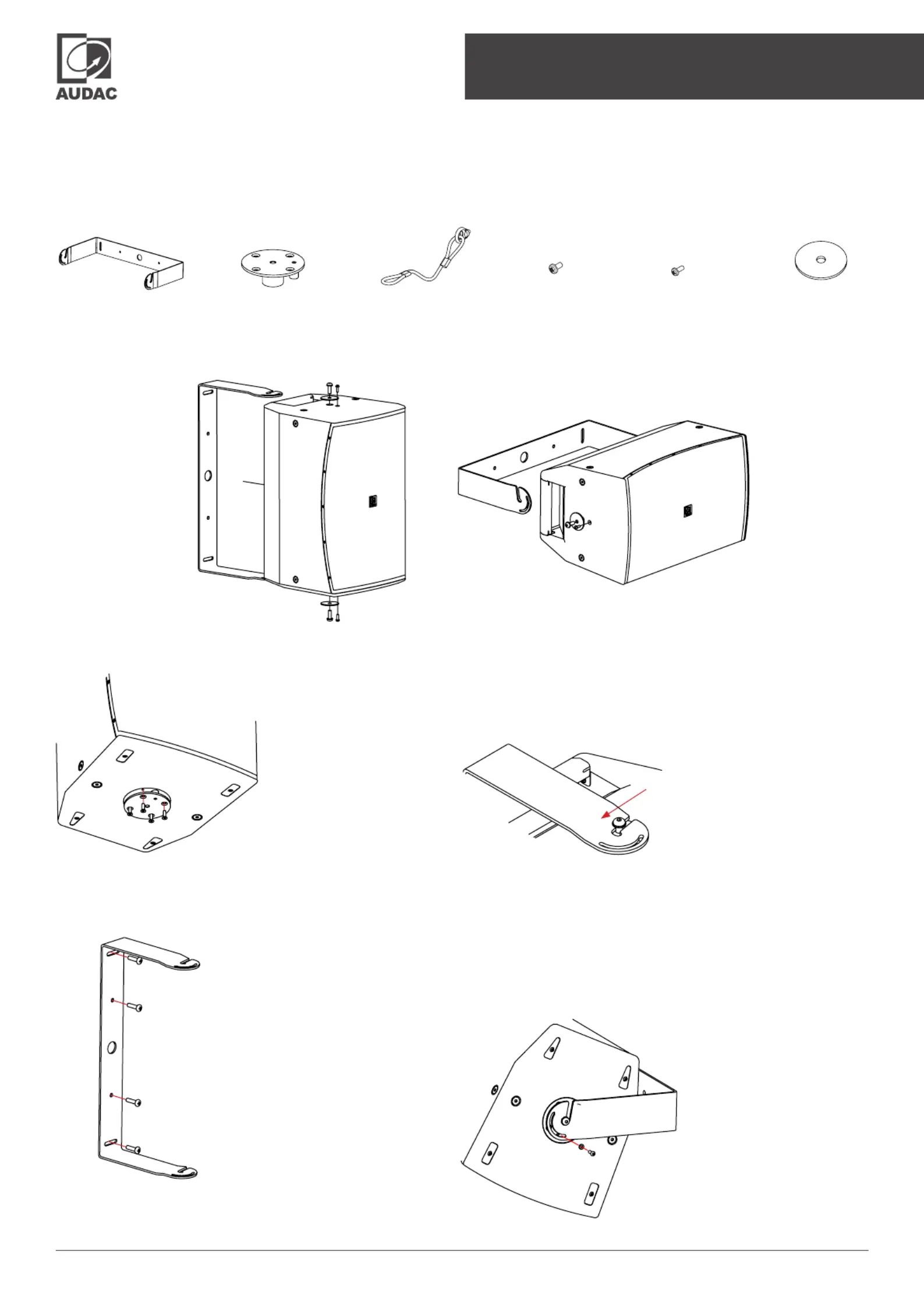

MBK1xxV installation manual - V1.2 1
Installation manual
MBK1xxV
Step 1:
The pole flange adapter
in the bottom of the
speaker has to be
replaced with a screw
flange adapter. This
is included with the
optional brackets. Attach
with the M6 screws.
Step 3:
Insert the large (M10) bolts
through the rubber washer
and into the center threaded
holes (top and bottom). This
washer comes between the
speaker and the bracket.
The bolts should stay up just
high enough so that the
intended slot in the bracket
can be hooked in.
Put the speaker in the
correct position and tighten
both M10 bolts.
Attach the drop safety wire
to one of the M10 flying
points. The other end of the
wire is attached to a separate
mounting point on the wall.
Step 2:
Mount the U-bracket at
a designated location on
the wall or ceiling.
The screws are inserted
into the holes provided
on the bracket. Use the
correct fasteners for the
surface on which the
bracket is to be mounted.
Step 4:
Add the additional
(small) safety/ positioning
bolts. This is placed in
the rotation slot of the
bracket.
Place the VEXO1xx in
your desired pitch angle
(-90° - 35°) and tighten
the bolts.
The MBK1xxV mounting bracket is specially designed for mounting the VEXO series speakers. These optional
clever U-brackets allow the easy installation of the VEXO series both horizontally and vertically. Thanks to a pro-
vided slot, the VEXO series speaker will glide easily and safely into the bracket making installation a piece of cake.
Caution: choose
fasteners that are
consistent with all
local build codes and
requirements to support
the weight of the
loudspeaker.
Included hardware:
Installation:
Drop safety wire
x2
M10 screws with
washers
x2
M6 screws with
washers
x2
Rubber washer
U-bracket M10 flange for
bottom
MBK1xxV installation manual - V1.2 2
Dimensions:
ALWAYS FOLLOW THE LOCAL REGULATIONS AND
REQUIREMENTS REGARDING INSTALL ATION,
SUSPENSION AND CONNECTION OF THIS LOUDSPEAKER.
EVEN WHEN OTHERWISE SPECIFIED IN THIS DOCUMENT.
IT’S THE INSTALLERS RESPONSIBILITY TO ENSURE
INSTALLATION OF THE LOUDSPEAKERS AND MOUNTING
SYSTEMS IS PERFORMED IN ACCORDANCE WITH ALL
APPLICABLE CODES
UNSAFE MOUNTING OR OVERHEAD SUSPENSION ON
ANY HEAVY LOAD CAN RESULT IN SERIOUS INJURY OR
DEATH, AND PROPERTY DAMAGE. IT’S THE INSTALLERS
RESPONSIBILITY TO EVALUATE THE RELIABILITY OF ANY
MOUNTING METHOD USED FOR THEIR APPLICATIONS
THE INSTALLATION OF THIS LOUDSPEAKER SHALL BE
DONE BY QUALIFIED PERSONNEL ONLY.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
NEVER THROW THEM AWAY
ALWAYS HANDLE THIS UNIT WITH CARE
CLEAN ONLY WITH DRY CLOTH
HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS
NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE,
ANY DRIPPING OR SPLASHING LIQUID.
DO NOT PLACE THIS UNIT IN ENVIRONMENTS WITH A
HIGH LEVEL OF DUST, HEAT, MOISTURE OR VIBRATION
DO NOT USE HYDROCARBON BASED SOLVENTS,
LUBRICANTS OR CLEANING AGENTS OF ANY TYPE ON
OR AROUND THE DEVICE AND MOUNTING HARDWARE
DURING THE INSTALL ATION. THE USE OF THESE
PRODUCTS ON OR AROUND THE MOUNTING ANCHORS
AND SCREWS CAN LEAD TO DEGRADATION OF THE
PLASTIC MATERIAL, POSSIBLY RESULTING IN CRACKING
AND PREMATURE FAILURE OF THE PRODUCT.
THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO
NOT USE IT OUTDOORS
ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY
THE MANUFACTURER.
ONLY INSTALL THE SPEAKER IN LOCATIONS THAT CAN
STRUCTURALLY SUPPORT THE WEIGHT OF THE SPEAKER.
IGNORING THIS CAN BRING THE SPEAKER DOWN.
DO NOT USE ANY OTHER METHOD THAN SPECIFIED TO
MOUNT THE SPEAKER. IF EXTREME FORCE IS APPLIED
TO THE SPEAKER, IT COULD FALL DOWN
ATTACH A SAFETY WIRE TO THE SPEAKER WHEN IT IS
MOUNTED HIGH UP. ONLY USE INDUSTRYACCEPTED
RIGGING TOOLS AND METHODS
CAREFULLY CHECK THE UNIT’S CONDITION AFTER
UNPACKING.
IF THERE IS ANY DAMAGE TO THE CARTON BOX OR THE
UNIT ITSELF, INFORM YOUR VENDOR IMMEDIATELY.
PRECAUTIONS
This product contains no user serviceable parts. Refer all
servicing to qualified service personnel. Do not perform
any servicing (unless you are qualified to do so).
CAUTION - SERVICING
This product conforms to all the essential requirements
and further relevant specifications described in
following directives: 2011/65/EU (RoHS2) and 1907/2006
(REACH)
EC DECLARATION OF CONFORMITY
DO NOT MAKE UNAUTHORIZED ALTERATIONS TO THE
PRODUCT.
•
The MBK108V mounting bracket is for the use with
VEXO108(A) only.
•
The MBK110V mounting bracket is for the use with
VEXO110(A) only.
•
The MBK112V mounting bracket is for the use with
VEXO112(A) only.
•
The MBK115V mounting bracket is for the use with
VEXO115(A) only
.
BC
A
A
A
A
A
A
D
E
FG
H
MBK108V MBK110V MBK112V MBK115V
A425 mm 566 mm 636 mm 716 mm
B57 mm 83.5 mm 81mm 75 mm
C256 mm 345 mm 390 mm 450 mm
D245 mm 330 mm 370 mm 428 mm
E450 mm 566 mm 636 mm 716 mm
F97,5 mm 125 mm 140 mm 160 mm
G30 mm 30 mm 35 mm 35 mm
H90 mm 90 mm 90 mm 100 mm
