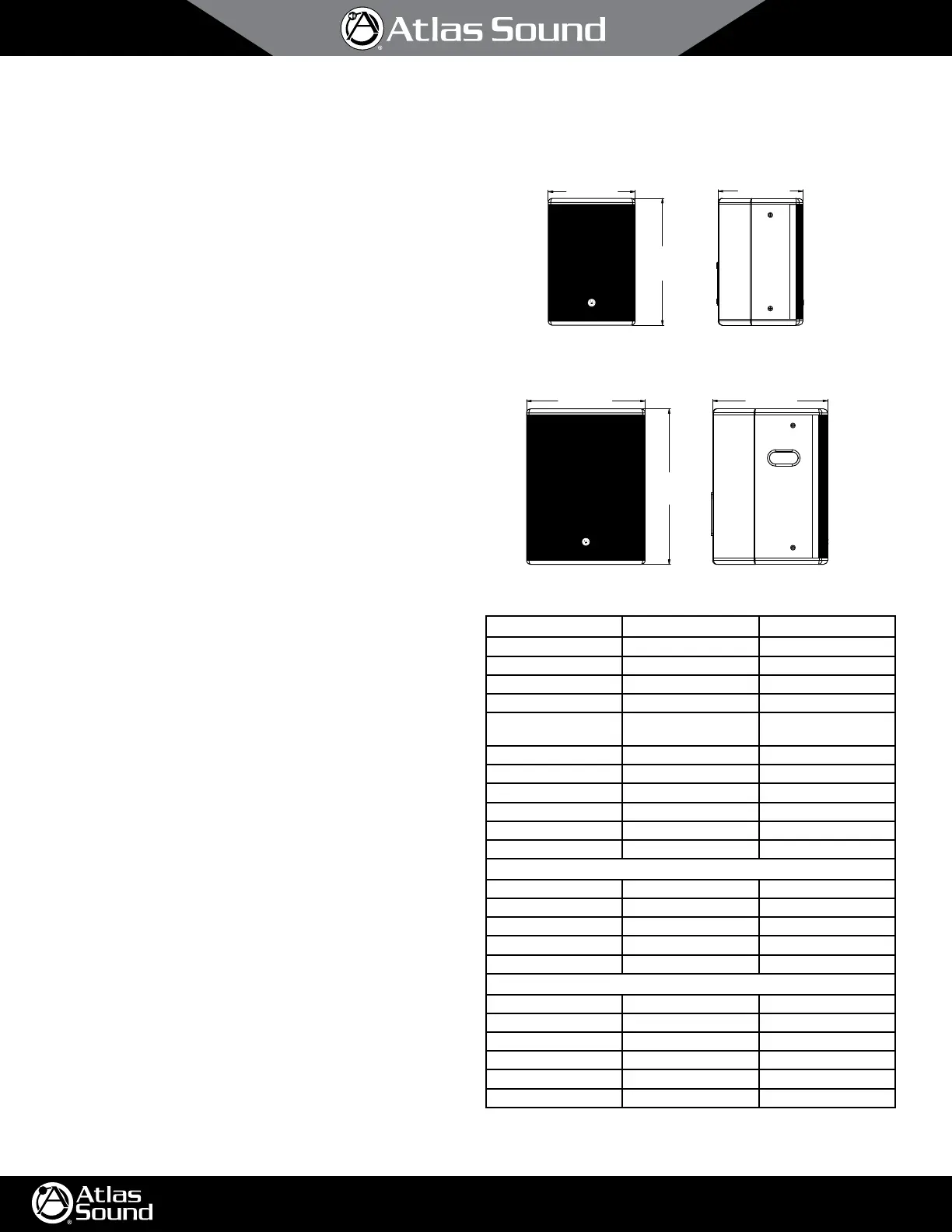

Seite 1/3
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435 AtlasSound.com 1/3
©2011 Atlas Sound L.P. All rights reserved. Atlas Sound and Strategy Series are trademarks of Atlas Sound L.P. All other trademarks are the property of their respective owners. ATS001826 RevD 7/12
SM8CXT
High Performance Coaxial Loudspeaker
SM8CXT-B
Features
• High Performance Atlas Sound Compression Driver Coaxial
Loudspeaker in Versatile, Flyable, Wood Enclosure
• Multiple (12) 1⁄4"-20 Inserts, Providing Fly Points for a Variety of
Mounting Configurations
• Includes Internal, High Efficiency 60 Watt 70.7V/100V Transformer
(May Be Bypassed For 8 Operation)Ω
• Barrier Strip Input For 70.7/100V/ or Parallel 4 Pole Speak-On Input 8Ω
for 8 Operation OnlyΩ
• Unique Input Panel Allows Use of Standard 4" Square Box Cover (Raco
753 or Eq.) for Applications Where Flex Conduit is Required
for Termination
• Fuse Protection for Low and High Frequency Drivers
• Attractive, Heavy-Duty Grille Assembly
• Durable Black or White, Rough-Coat Finish
• Optional Brackets for Wall Mounting
• Pre-Drilled With T-Nut Inserts for Omnimount™ Bracket Wall Mounting
Applications
The SM8CXT is optimized for high ceiling applications such as arenas,
convention centers, gymnasiums, and auditoriums. The extreme high
efficiency and higher “Q” of the 8CX with its powerful 8" speaker and
1" exit compression driver, provides the increased available SPL often
required in these high ceiling applications. In 70.7V/100V systems this
high efficiency can also result in lower tap settings.
General Description
SM Series loudspeakers offer quality sound reproduction and
contemporary styling. The SM8CXT features the SM8CXT60—a
150 Watt loudspeaker that combines an 8" diameter, low frequency
transducer and a 1" exit, compression driver. The speaker has a
curvlilinear, polypropylene cone for lower harmonic distortion, and a
built-in crossover network for proper frequency transition between the
two reproducers. The low frequency transducer and the high frequency
driver feature permanently aligned voice coils for low distortion
performance. The copper coils have Polyimide voice coil formers.
The SM8CXT features a wood enclosure with a metal grille. Internal
hardware, for flying, includes multiple (12) 1⁄4"-20 inserts for overheard
suspension in most any orientation.
A 90 degree conical pattern (2kHz octave band) and amazing efficiency
make the SM8CXT a perfect choice for a wide variety of applications
including school auditoriums, gymnasiums, cafeterias, church sanctuary
systems, and more.
Specifications
Power Rating (Rms) 150Hz
Frequency Response 60Hz – 15kHz (±5dB)
Sensitivity (1W/1M) 92dB
Power Taps 7.5, 15, 30, 60 Watts & 8Ω
Height 151⁄ " (394mm)2
Width 105⁄ " (270mm)8
Depth 103⁄ " (264mm)8
Weight 19 Lbs (8.6kg)
Dispersion Angle 90°
Finish Rough-Coat, Black or White
Architect and Engineer Specifications
The loudspeaker system shall be Atlas Sound Model SM8CTX.
Assemblies shall consist of two-way woofer and tweeter assembly
within environmental-resistant housing. The 150 watt systems shall have
a 8.25" (310mm) woofer constructed with polypropylene cone and a 1"
(25mm) titanium diaphragm compression driver. Each system shall be
complete with a built-in, 60 Watt 70.7V/100V transformer. The speaker
shall be mounted in a wood enclosure with a metal grille. The enclosure
shall provide multiple 20 inserts for mounting. Fuse protection for high
and low frequency drivers shall be included.
SM8CXT-B
Terminals
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435 AtlasSound.com 2/3
©2011 Atlas Sound L.P. All rights reserved. Atlas Sound and Strategy Series are trademarks of Atlas Sound L.P. All other trademarks are the property of their respective owners. ATS001826 RevD 7/12
SM8CXT Polars (Normalized to Zero on Axis) (-6dB)
Frequency (Hz)
SPL in dB
SM8CXT Frequency Response
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435 AtlasSound.com 3/3
©2011 Atlas Sound L.P. All rights reserved. Atlas Sound and Strategy Series are trademarks of Atlas Sound L.P. All other trademarks are the property of their respective owners. ATS001826 RevD 7/12
Frequency (Hz)
SM8CXT Beamwidth (-6 dB)
Beamwidth (Degrees)
Frequency (Hz) Octave Smoothing = 30.0%
Ohms
SM8CXT Impedance
