Quick Start Guide

MSD-1001-L 10.1” Modero S Series® Wall Touch Panel

Overview

The Modero S Series® is a beautiful touch panel family sophisticated enough for

room control yet priced right for the most cost sensitive installations including

small huddle spaces and dedicated room scheduling. The MSD-1001-L 10.1”

Wall/Flush Mount Touch Panel (FG2265-01) features brilliant 24-bit color depth,

PoE connectivity, and streaming video.

Product Specifications

Note: Optimal performance requires use of one of the following AMX PoE power

supplies (not included):

• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)

• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)

Note: AMX does not support the use of non-AMX power supplies.

Note: For more information on installation and configuration, as well as

complete specifications on this device, please refer to the MSD/T-701

Operation/Reference Guide, available at www.amx.com.

Panel Connectors and Wiring

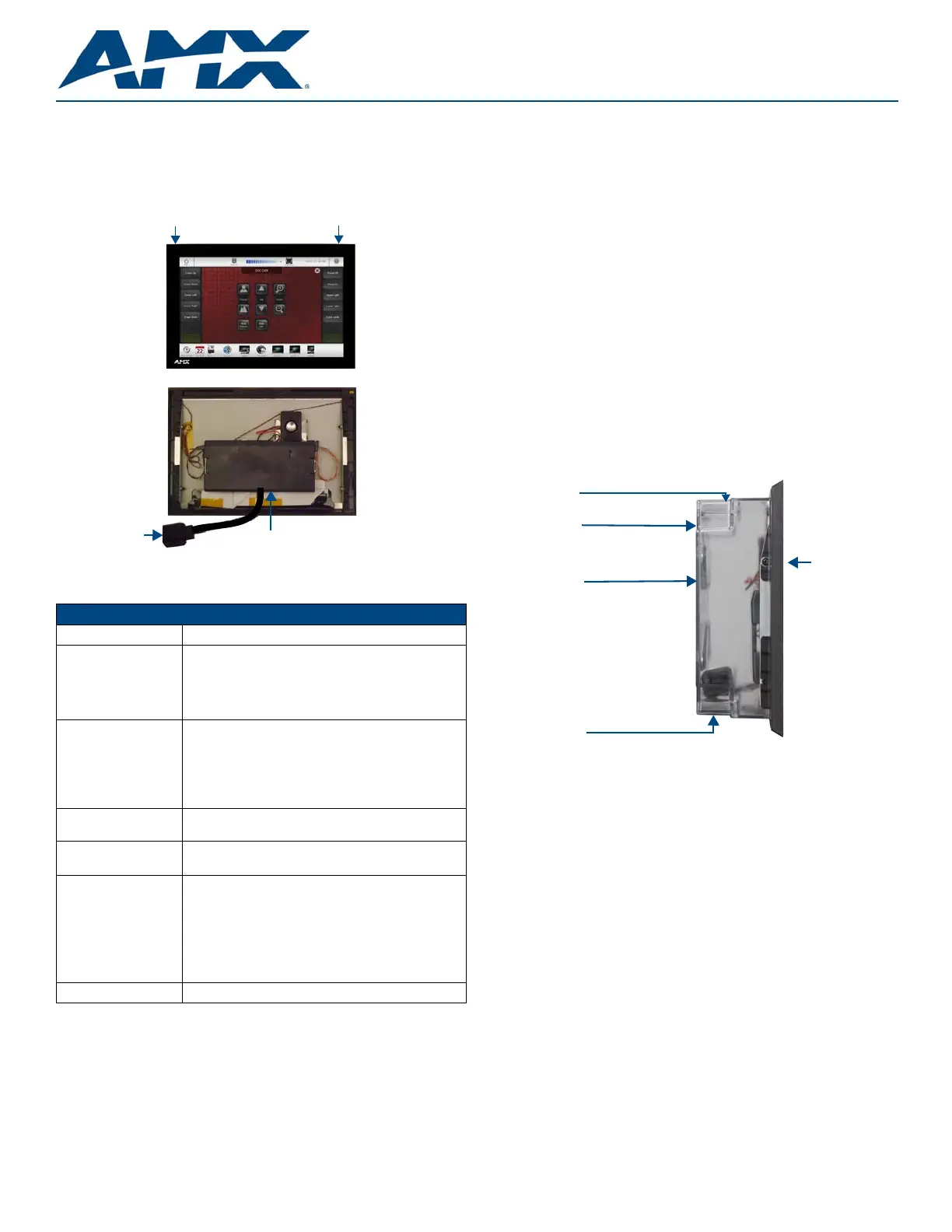

FIG. 1 shows the connectors located on the back of the MSD-1001-L.

Power for the MSD-1001-L via Power Over Ethernet

Power for the MSD-1001-L is supplied via Power Over Ethernet (PoE), utilizing

an AMX-certified PoE injector such as the PS-POE-AF-TC PoE Injector

(FG423-83) or other approved AMX PoE power source. The incoming Ethernet

cable should be connected to the RJ-45 port on the MSD-1001-L.

Note: The Micro A/B USB port is used only for firmware uploads, as it is

inaccessible when the device is installed within its back box.

Installing the MSD-1001-L

The MSD-1001-L can be installed either directly into a solid surface

environment, using either solid surface screws or the included locking tabs for

different mounting options. For more information, please refer to the MSD/T-701

Operation/Reference Guide, available at www.amx.com.

Installing the MSD-1001-L into a wall

The MSD-1001-L is contained within a clear outer housing known as the back

box. The back box (FIG. 2) is designed to attach the panel to most standard wall

and solid surface materials. This back box has two locking tabs (one on the top

and one at the bottom) to help lock the back box to the wall. These locking tabs

are only extended AFTER the back box is inserted into the wall. Using the

locking tabs is highly recommended for standard mounting surfaces such as

walls. For thin walls and solid surfaces, use #4 mounting screws (not included).

WARNING: When installing the back box, make sure that the assembly is in the

correct position and in the correct place. Once the locking tabs are extended

and locked into place, removing the back box may be difficult without having

access to the back of the wall or causing damage to the wall.

Note: In order to guarantee a stable installation of the MSD-1001-L, the

thickness of the wall material must be a minimum of .50 inches (1.27cm) and a

maximum of .875 inches (2.22cm). The surface should also be smooth and flat.

WARNING: The maximum recommended torque to screw in the locking tabs on

the plastic back box is 5 IN-LB [56 N-CM]. Applying excessive torque while

tightening the tab screws, such as with powered screwdrivers, can strip out the

locking tabs or damage the plastic back box.

1. After ensuring proper placement, cut out the mounting surface. Use the

included mounting template (68-2265-03) or refer to the dimensions in the

MSD/T-701 Operation/Reference Guide, available from www.amx.com,

for more information.

CAUTION: Making sure the actual cutout opening is slightly smaller than the

provided dimensions is highly recommended. This action provides the installer

with a margin for error if the opening needs to be expanded. Too little wall

material removed is always better than too much.

2. Remove either the top or the bottom knockout from the back box,

depending upon the required installation. Thread the incoming wiring

through the hole in the rear of the back box.

3. Thread the incoming Ethernet wiring from their terminal locations through

the surface opening and through the access slot.

FIG. 1 MSD-1001-L

MSD-1001-L Specifications

Power: PoE (Power over Ethernet), 802.3af, class 0

Power Consumption: • Full-On: 14.5 W maximum

•Standby: 4.7 W

•Shutdown: 0.8 W

•Startup Inrush Current: Not Applicable due to PoE

standard

Operating Environment: • Operating Temperature: 32° F to 104° F (0° C to 40° C)

•Storage Temperature: 4° F to 140° F (-20° C to 60° C)

•Humidity Operating: 20% to 85% RH

•Humidity Storage: 5% to 85% RH

•Power (“Heat”) Dissipation: On: 27.3 BTU/hr, Standby:

10.9 BTU/hr

Dimensions (HWD): With Back Box: 6.2" x 10.4" x 2.3"

(157 mm x 264 mm x 58 mm)

Weight: • Without Back Box: 1.50 lbs (0.68 Kg)

•With Back Box: 1.95 lbs (0.88 Kg)

Certifications: • UL

• FCC Part 15 Class B

• C-Tick CISPR 22 Class B

• CE EN 55022 Class B and EN 55024

• CE EN 60950-1

• IC CISPR 22 Class B

• VCCI CISPR 22 Class B

• RoHS/WEEE compliant

Included Accessories: • MSD-1001-L Wall Mounting Template (68-2265-03)

Microphone

(Front)

(Rear)

RJ-45

Port

Sleep Button

Micro A/B

USB Port

FIG. 2 MSD-1001-L Back Box (Side View)

Knockout

MSD-1001-L

Back

Box

Locking

Tab

Knockout

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).

9/13

AMX reserves the right to alter specifications without notice at any time.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com

93-2265-01 REV: A

4. Push the back box flat into the mounting surface and secure with either the

locking tabs or #4 mounting screws (not included). In order to prevent

damage to the touch panel, make sure that any screws used are flush with

the back box, and the back box goes freely into the opening.

5. Insert each connector into its corresponding location along the back of the

MSD-1001-L.

6. Test the incoming wiring by attaching the panel connections to their

terminal locations and applying power. Verify that the panel is receiving

power and functioning properly to prevent repetition of the installation.

Note: Do not disconnect the connectors from the touch panel. The unit must be

installed with the attached connectors before being inserted into the drywall.

7. Latch the panel onto the top hooks on the back box and rotate it down.

Press gently but firmly and evenly on the surface of the glass until the top

panel snap “clicks” to lock it down.

WARNING: if you see a gap between the panel and the back box, or feel any

binding while locking down the panel, stop immediately and verify that no cables

or other items are in the way. Do not force the panel into position, as this can

cause damage to the touch screen or the panel electronics.

8. Reconnect the terminal Ethernet to its respective locations on either the

Ethernet port or NetLinx Master.

Uninstalling the MSD-1001-L

In order to access the back of the MSD-1001-L, such as to install a USB

connection for firmware upgrades, the device may need to be uninstalled from

the back box. To uninstall the MSD-1001-L:

9. From the bottom, pull gently outward from the back box. Gently rock the

panel back and forth to free the bottom from the back box.

10. Rotate it up to release the top latch hooks, and carefully pull the device

free from the back box. Take care not to damage or pull the connections on

the back of the device.

Configuring the MSD-1001-L

The MSD-1001-L is equipped with Settings Pages that allow you to set and

configure various features on the panel. For more information on connecting and

configuring the MSD-1001-L to a network, please refer to the Modero S Series

Programming Guide, available at www.amx.com.

Accessing the Settings Pages

To access the Settings Pages on the MSD-1001-L, press and hold the Sleep

Button (FIG. 1) on the top of the panel for 3 seconds. The user will be prompted

to release the button to enter the Settings page (FIG. 3).

Accessing the Configuration Page

1. From the Settings Page, select Configuration. If the Configuration page is

password protected, this opens a password keypad.

2. Enter the panel password into the keypad (the default is 1988) and select

OK to access the page.

Setting the Panel’s Device Number and Device Name

In the Configuration page:

1. Press Panel to open the Panel Configuration page.

2. Ensure that the Synchronize Device Names button is not selected, and

click it to deselect it if it is.

3. Press Device Number to open the Device Number keypad.

4. Enter a unique Device Number assignment for the panel and press OK.

5. Press the Device Name field to open the Device Name keypad.

6. Enter a unique Device Name assignment for the panel and press OK.

Accessing the Connection & Networks Page

1. From the Settings Page, select Connection & Networks. If the page is

password protected, this opens a password keypad.

2. Enter the panel password into the keypad (the default is 1988) and select

OK to access the page.

Connecting to a Master

The panel requires that you establish the type of connection you want to make

between it and your Master.

In the Connection & Networks page:

1. Select Master Connection to open the Master Connection page (FIG. 4).

2. Press Mode to toggle through the available connection modes:

3. If you have enabled password security on your Master, you need to set the

username and password within the device.

a. Select Username to open the Master User keyboard.

b. Set your Username and select OK.

c. Select the Password to open the Master Password keyboard.

d. Set your Master Password and select OK.

e. Press the Back button twice to return to the Settings page.

Configuring the Panel to a Network

The first step is to configure the panel’s communication parameters. This only

configures the panel to communicate with a network, and it is still necessary to

tell the panel with which Master it should be communicating.

Network Communication With a DHCP Address

In the Connection & Networks page:

1. Select Network Connection to open the Network Connection page.

2. Toggle the DHCP/Static field until the choice cycles to DHCP. This action

causes all fields on the page (other than ) to be greyed-out.Host Name

3. Select Host Name to open the Host Name keyboard. Enter the new host

name and click OK.

FIG. 3 Settings page

FIG. 4 Master Connection page

Connection Modes

Mode Description Procedures

Auto The device connects to the first

master that responds.

This setting requires that you set

the System Number.

Setting the System Number:

1. Select Master System Number to open

the keypad.

2. Set your Master System Number and

select OK.

URL The device connects to the

specific IP of a master via a TCP

connection.

This setting requires that you set

the Master’s IP.

Setting the Master IP:

1. Select the Master IP number to the

keyboard.

2. Set your Master IP and select OK.

Listen The device “listens” for the

Master to initiate contact.

This setting requires you provide

the master with the device’s IP.

Confirm device IP is on the Master URL list.

You can set the Host Name on the device

and use it to locate the device on the master.

Host Name is particularly useful in the DHCP

scenario where the IP address can change.

Produktspezifikationen

Marke:	AMX
Kategorie:	Monitor
Modell:	MSD-1001

Brauchst du Hilfe?

Wenn Sie Hilfe mit AMX MSD-1001 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Monitor AMX

AMX MVP-9000i Bedienungsanleitung

27 August 2024

AMX NXD-700i Bedienungsanleitung

27 August 2024

AMX MVP-8400i Bedienungsanleitung

27 August 2024

AMX MST-431 Bedienungsanleitung

27 August 2024

AMX MXT-1000-NC Bedienungsanleitung

27 August 2024

AMX NXD-435 Bedienungsanleitung

27 August 2024

AMX MXD-1901-PAN-L Bedienungsanleitung

27 August 2024

AMX MXD-1900L-PAN-NC Bedienungsanleitung

27 August 2024

AMX MXD-701-L Bedienungsanleitung

27 August 2024

AMX MXD-700 Bedienungsanleitung

27 August 2024

Bedienungsanleitung Monitor

Neueste Bedienungsanleitung für -Kategorien-

Acer EB321HQUDbmidphx Bedienungsanleitung

15 Oktober 2024

LG UltraGear 32GS85Q Bedienungsanleitung

15 Oktober 2024

LG UltraGear 27GS85Q Bedienungsanleitung

15 Oktober 2024

Bauhn APMTR-0624 Bedienungsanleitung

15 Oktober 2024

Acer K272HUL Dbmidpx Bedienungsanleitung

14 Oktober 2024

Hannspree Hanns.G HP 225 PJB Bedienungsanleitung

14 Oktober 2024

Asus VP249HR Bedienungsanleitung

13 Oktober 2024

Asus VE208N Bedienungsanleitung

11 Oktober 2024

NEC MD322C8-2 Bedienungsanleitung

11 Oktober 2024

ViewSonic V3D231 Bedienungsanleitung

10 Oktober 2024
