USER MANUAL
AD14 • Waterproof
pH/ORP Tester
Dear Customer,
Thank you for choosing an Adwa product.
Please read carefully this manual before
starting operations.
This instrument is in compliance with the
EMC Directive 89/336/EEC and Low Voltage
Directive 73/23/EEC for electrical equipments.
For additional technical information, please
e-mail us at sales@adwainstruments.com.
INTRODUCTION
AD14 is waterproof pH, ORP and temperature
tester. The housing has been completely
sealed against humidity.
All pH readings are automatically temperature
compensated (ATC), and temperature values
can be displayed in °C or °F units.
The meter can be calibrated at one or two
points for pH with auto-buffer recognition
and against five memorized buffer values,
while the ORP (mV) range is factory calibrated.
Measurements are highly accurate with a
unique stability indicator right on the LCD.
The model is also provided with a low bat-
tery symbol which warns the user when the
batteries need to be replaced.
The AD14P pH/ORP electrode, supplied with
the meter, is interchangeable and can be
easily replaced by the user.
The encapsulated temperature sensor allows
fast and accurate temperature measurement
and compensation.
The meter is supplied complete with:
•AD14P pH/ORP electrode
• 4 x 1.5V batteries, button type
• User manual

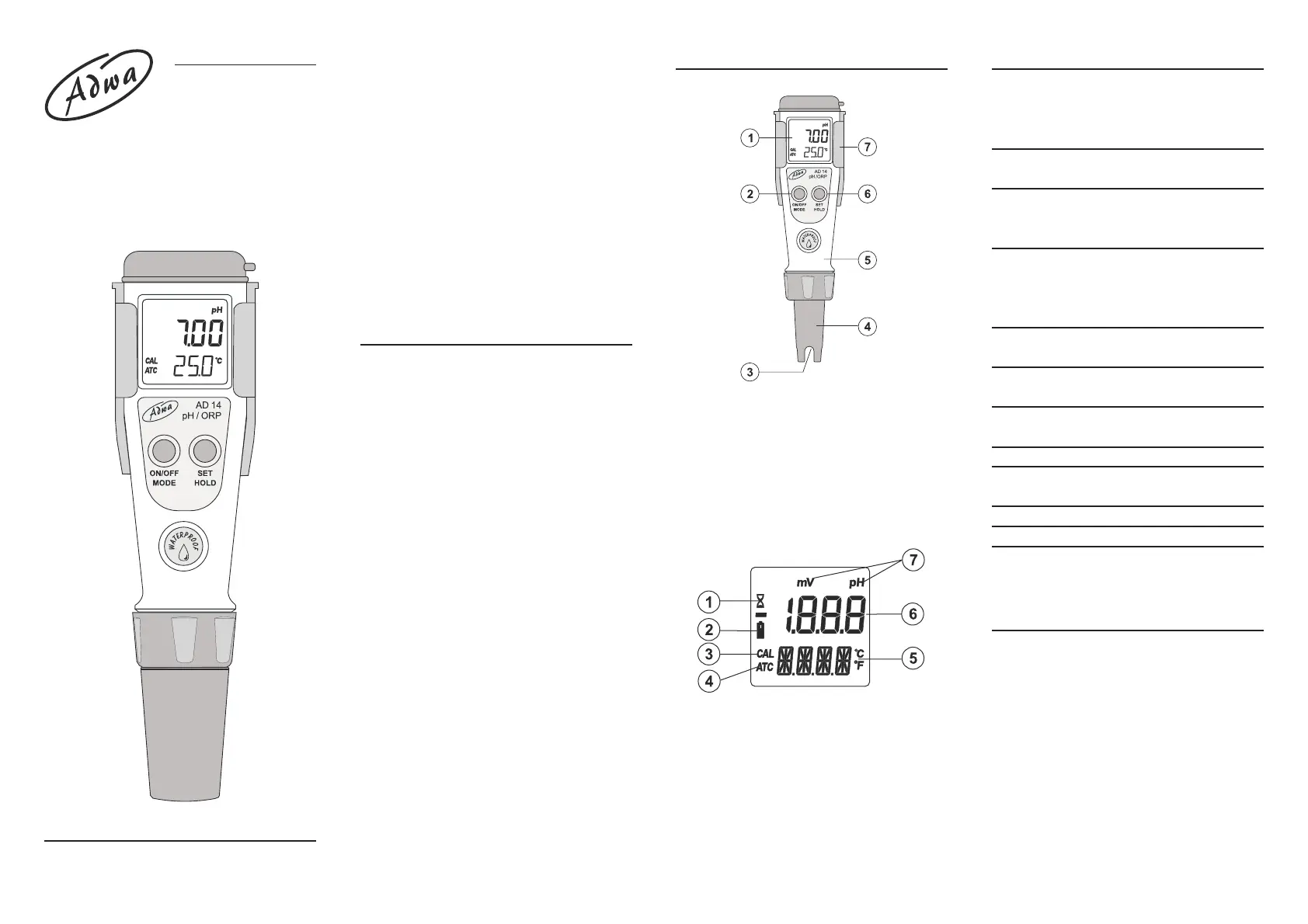

FRONT PANEL & DISPLAY
1. Dual line LCD
2. ON/OFF/ MODE button
3. pH/ORP electrode & temperature sensor
4. Electrode body
5. Battery compartment (inside)
6. SET/HOLD button
7. Clip holder
1. Stability indicator (hourglass symbol)
2. Low battery warning indicator
3. Calibration mode / calibrated meter indication
4. ATC (Automatic Temperature Compensation)
indicator
5. Secondary LCD level
6. Primary LCD level
7. Measurement unit for primary level
TECHNICAL DATA
Range -2.00 to 16.00 pH
±1000 mV
-5.0 to 60.0 °C / 23.0 to 140.0 °F
Resolution 0.01 pH / 1 mV
0.1 °C / 0.1 °F
Accuracy (@25 °C/77 °F)
±0.01 pH / ±2 mV
±0.5 °C / ±1 °F
pH Calibration
Automatic, 1 or 2 point
with 2 sets of memorized buffers
(pH 4.01/7.01/10.01 or 4.01/6.86/9.18)
Electrode
AD14P pH/ORP electrode (included)
Temperature Compensation
Automatic for pH readings
Battery Type / Life
4 x 1.5V button type / approx. 300 h of use
Auto-off After 8 minutes of non-use
Environment
-5 to 50 °C (23 to122 °F); RH 100%
Dimensions 175.5 x 39 x 23 mm
Weight 100 g
ISTAD14 09/14
AD14P Spare pH/ORP electrode
AD70004P pH 4.01 buffer solution, 20 ml, 25 pcs.
AD7004 pH 4.01 buffer solution, 230 ml bottle
AD70007P pH 7.01 buffer solution, 20 ml, 25 pcs.
AD7007 pH 7.01 buffer solution, 230 ml bottle
AD70010P pH 10.01 buffer solution, 20 ml, 25 pcs.
AD7010 pH 10.01 buffer solution, 230 ml bottle
AD7061 Cleaning solution, 230 ml
AD70300 Storage solution, 230 ml
ELECTRODES & SOLUTIONS
Turn the meter on
• Press and hold the ON/OFF/MODE button
until the LCD lights up. All the used
segments will be visible for one second
(or as long as the button is pressed).
Freeze the display
• While in measurement mode, press the
SET/HOLD button. The reading will be
frozen on the LCD. Press any button to
return to normal mode.
Turn the meter off
• While in measurement mode, press the
ON/OFF/MODE button. OFF will appear
on the secondary display. Release the
button.
Note: If measurements are taken in different
samples successively, rinse the
probe tho roug hly to eliminat e
cross-contamination. After cleaning,
rinse the probe with some of the
sample to be measured.
OPERATIONAL GUIDE
MEASUREMENT & CALIBRATION
Taking Measurement
• Select the desired pH or ORP (mV) mode
by pressing the SET/HOLD button.
• Submerge the electrode in the solution to
be tested while stirring it gently.
• Measurements should be taken when the
stability indicator (hourglass) disappears.
• The measured value is shown on the primary
LCD level while the secondary one shows
the sample temperature.
Note: Displayed pH readings are automatically
compensated for temperature variations.
Note: Before taking any pH measurement,
make sure the meter has been calibrated
(CAL tag is displayed).
Note: The ORP (mV) range is factory
calibrated.
pH Calibration
For better accuracy, frequent calibration of
the instrument is recommended. In addition,
the instrument must be recalibrated whenever:
a) The pH electrode is replaced.
b) After testing aggressive chemicals.
c) Where high accuracy is required.
d) At least once a month.
Note: When the calibration procedure is
completed, the CAL tag is turned on.
To quit calibration & reset to default values
• After entering the calibration mode and
before the first point is accepted, you can
quit the procedure and return to the last
calibration data by pressing the ON/OFF/
MODE button. The secondary LCD displays
“ESC”for one second and then the meter
returns to the normal measuring mode.
• To reset to the default calibration values,
press SET/HOLD after entering the calibration
mode and before the first point is accepted.
The secondary LCD displays “CLR” for
one second, the meter resets to the default
calibration and the CAL tag disappears.
SETUP
Setup mode allows the selection of temperature
unit and pH buffer set. To enter the setup
mode, select pH mode and then press the ON/
OFF/MODE button until CAL on the secondary
display is replaced by TEMP and the current
temperature unit (e.g. TEMP °C). Then:
For °C/°F selection:
• Use the SET/HOLD button. After the tempera
ture unit has been selected, press the ON/
OFF/MODE button to enter the buffer set
selection mode.
• Press the ON/OFF/MODE button again to
return to the normal measuring mode.
To change the calibration buffer set:
• After setting the temperature unit, the
meter will show the current buffer set: “pH
7.01 BUFF” (for 4.01/7.01/10.01) or “pH 6.86
BUFF” (for NIST 4.01/6.86/*9.18).
• Change the set with the SET/HOLD button,
then press ON/OFF/MODE to return to the
normal measurement mode.
ELECTRODE MAINTENANCE
When the batteries become weak, the battery
symbol on the LCD lights up to indicate a
low battery condition. Batteries should be
replaced soon.
To change the batteries, unscrew and release
the electrode body.
Take out the battery
compartment and
carefully replace all
four batteries while
paying attention to
their polarity.
Reattach and tighten
the electrode body
properly to ensure a
watertight seal.
BATTERY REPLACEMENT
message is held for 12 seconds, unless a
valid buffer is recognized. If no valid buffer
is recognized, then the WRNG message is
shown. If a valid buffer (pH 4.01, 10.01, or
9.18) is detected, then the meter completes
the calibration procedure. The LCD shows
the accepted value with the “OK 2” message,
and then the meter returns to the normal mode.
Calibration Procedure
• From normal measuring mode, press and
hold the ON/OFF/MODE button until OFF
on the secondary LCD is replaced by CAL.
• Release the button. The LCD enters the
calibration mode displaying “pH 7.01
USE” (or “pH 6.86 USE” if the NIST buffer
set was selected).
• The meter automatically recognizes buffers:
if a valid buffer is detected then its value
is shown on the primary display and REC
appears on the secondary LCD level. If no
valid buffer is detected, the meter keeps
the USE indication active for 12 seconds,
followed by WRNG, indicating the buffer
being measured is not a valid calibration value.
Single-Point Calibration
• For a single-point calibration with buffers
pH 4.01, 9.18 or 10.01, the meter automatically
accepts the calibration when the reading
is stable. The accepted buffer is displayed
together with the message “OK 1” for one
second, then the meter automatically returns
to the normal measuring mode.
• If a single-point calibration with buffer pH
7.01 (or pH 6.86) is desired, then after the
calibration point has been accepted, press
the ON/OFF/MODE button to return to
normal mode. The meter shows “7.01” (or
“6.86”) and “OK 1” for one second, then it
automatically returns to the normal mode.
Note: For better accuracy, it is recommended
to perform a 2-point calibration.
Two-Point Calibration
• For a two-point calibration, place the electrode
in pH 7.01 (or pH 6.86) buffer. After the
first calibration point has been accepted,
the “pH 4.01 USE” message appears. The
When not in use, rinse the electrode with
water and store it with a few drops of
AD70300 storage solution in the protective
cap.
NEVER STORE THE ELECTRODE IN
DISTILLED OR DEIONIZED WATER!
• If the electrode has been left dry, soak the
tip in storage solution for at least one hour
to reactivate it.
• To prolong the electrode life, it is recommended
to clean it monthly by immersing the tip
in AD7061 general cleaning solution for
30 minutes. Afterwards, rinse it thoroughly
with tap water and recalibrate the meter.
• The electrode can be easily replaced by
unscrewing the body as shown below.
