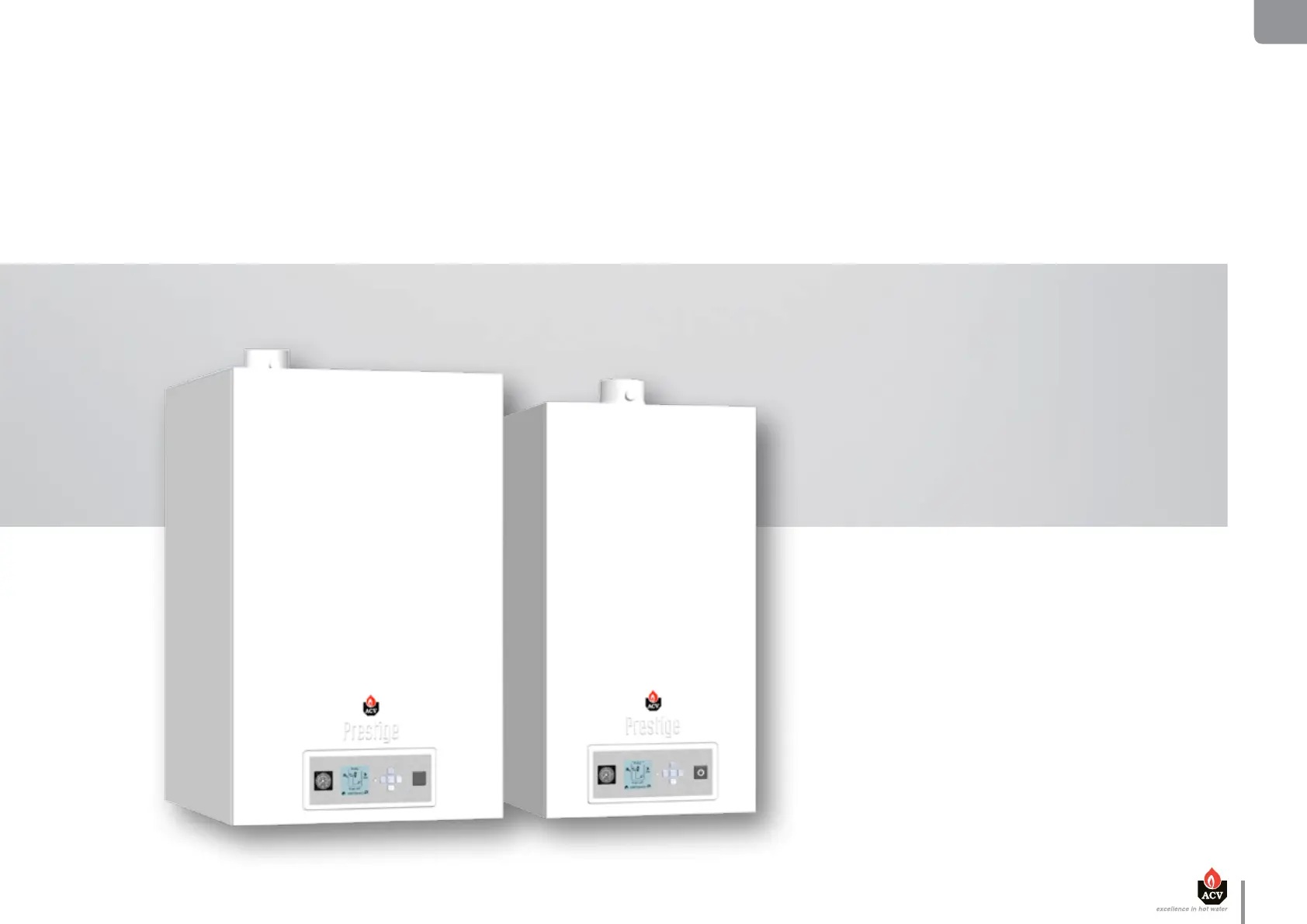

PREST IGE 24-32 Solo/Excellence : 664Y6700 • C

INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS

for the Installer and the User

24 Solo

32 Solo

24 Excellence

32 Excellence

32 Excellence LG

Prestige

PREST IGE 24-32 Solo/Excellence : 664Y6700 • C

TABLE OF CONTENTS

GENERAL RECOMMEN DATIONS .................................................................................... 3

Safety Instructions........................................................................................................................................................................3

USER’S GUIDE ................................................................................................................... 4

Meaning of Symbols 4 ....................................................................................................................................................................

Boiler Marking ................................................................................................................................................................................ 5

Control Panel and Display 6 .........................................................................................................................................................

Stand-by Screen ............................................................................................................................................................................7

Lockout Screen ..............................................................................................................................................................................7

Status Messages ............................................................................................................................................................................7

What to Check on a Regular Basis 8 ..........................................................................................................................................

In case of Problem... 8 .....................................................................................................................................................................

Boiler Setup Guide .......................................................................................................................................................................8

APPLIANCE DESCRIPTION ............................................................................................15

Models - Prestige 24 - 32 Solo / Excellence .......................................................................................................................15

Conguration in a System .......................................................................................................................................................15

TECHNICAL CHARACTERISTICS ..................................................................................17

Combustion Characteristics ...................................................................................................................................................17

Dimensions ...................................................................................................................................................................................18

Clearance .......................................................................................................................................................................................18

Single Gas Categories (Prestige 32 Excellence only) .................................................................................................... 20

Double Gas Categories (All models, except Prestige 32 Excellence) .....................................................................21

Electrical Characteristics Prestige 24 - 32 Solo/Excellence ........................................................................................ 22

Hydraulic Characteristics .........................................................................................................................................................24

Hydraulic Pressure Drop Curves of the Boiler ..................................................................................................................24

DHW Performance ......................................................................................................................................................................24

Maximum Operating Conditions ..........................................................................................................................................24

Recommendations for the Prevention of Corrosion and Scaling in Heating Systems .................................... 25

INSTALLATION ..............................................................................................................26

Safety Instructions for the Installation .............................................................................................................................. 26

Package Contents .......................................................................................................................................................................27

Tools Required for the Installation .......................................................................................................................................27

Boiler Installation - Wall Mounting.......................................................................................................................................27

Hydraulic Connections ............................................................................................................................................................ 28

Prestige Excellence - DHW connection ............................................................................................................................. 28

Heating Connection ................................................................................................................................................................. 29

Removal and Installation of the Front Panel ................................................................................................................... 29

Chimney Connection ............................................................................................................................................................... 30

Calculation of the Flue Pipe System Resistance .............................................................................................................. 31

Gas Connection ...........................................................................................................................................................................32

Conversion to Propane .............................................................................................................................................................32

Ball condensate Trap Installation ..........................................................................................................................................33

CONFIGURATION AND SYSTEM SET-UP .....................................................................34

Basic Conguration - Prestige 24-32 Solo: High Temperature Heating Circuit with Optional DHW Tank

and Control by Room Thermostat and Optional Outdoor Sensor..........................................................................34

Settings for the Basic Conguration, using the EZ Setup of the User Interface .................................................35

STARTING UP ................................................................................................................. 36

Safety Instructions for Starting up ...................................................................................................................................... 36

Tools Required for Starting up .............................................................................................................................................. 36

Checks before Starting up ...................................................................................................................................................... 36

Filling the System ....................................................................................................................................................................... 36

Starting up the Boiler ................................................................................................................................................................37

Checking and Adjusting the Burner ....................................................................................................................................37

MAINTENANCE ..............................................................................................................38

Safety Instructions for the Boiler Maintenance.............................................................................................................. 38

Tools Required for Maintenance .......................................................................................................................................... 38

Boiler shut down for Maintenance ...................................................................................................................................... 38

Periodic Boiler Maintenance Tasks ...................................................................................................................................... 38

Draining the Boiler .....................................................................................................................................................................39

Removal, Check and Installation of the Burner Electrode ..........................................................................................39

Removal and Installation of the Burner ............................................................................................................................ 40

Torque Values ..............................................................................................................................................................................40

Cleaning the Exchanger ...........................................................................................................................................................42

Restarting after Maintenance ................................................................................................................................................42
